1. Special sheet coil for anti-corrosion insulation (insulation aluminum skin) : material 1060 3003
Thickness 0.3-3.0(mm) Width 1000-1900(mm)
2. Color coated aluminum coil (embossed color coated aluminum coil) : (polyester color coated aluminum coil, fluorocarbon color coated aluminum coil)
Thickness 0.024-1.2(mm) Width 800-1220(mm) Material 1100 1060 3003 5052
3. Aluminum tile for anti-corrosion and insulation (corrugated aluminum sheet) : Material 1060 3003, thickness 0.3-1.5 (mm), aluminum tile model YX35-125-750,YX23-210-840,YX12-100-880,YX14-65-850,YX25-205-820,YX15-225-900
I. Aluminum plate (cold-rolled aluminum plate) (punched aluminum plate)
Material 1060, 1100, 1050, 1145, 8011, 3003, 3004, 5052, 5754, 5083, 6061,
Thickness 0.1mm-- 680mm
Width 800mm----1900mm
Ii. Aluminum coil (cold rolled aluminum coil)
Material 1060, 1145, 1050, 1100, 8011, 3003, 3004, 5052, 5083, 6061
Thickness 0.10mm----10mm
Width 800mm----1900mm
3. Aluminum strip (cold rolled aluminum strip) material: 1060 1100 8011 3003
1. Transformer special aluminum strip material 1060 0 state thickness 0.3-3.0(mm),
2. Aluminum strip material 8011 O state thickness 0.16-0.3(mm),
3. Aluminum foil for cable covering 8011 O 1060 O state thickness 0.12 ~ 0.20(mm),
4. Insulating glass strip with aluminum, material 3003 H16 thickness 0.12-0.4(mm),
Aluminum strip grade.1060.1050.3003.5052. Common state H24 semi-hard.0 state (annealed full soft state.)
Uses. Transformer aluminum tape. Aluminium tape for cables. Aluminium tape for stamping. Aluminium tape for heaters. Stamping material for lamps. Auto parts stamped aluminum strip.
First, aluminum strip series: the width is between 10-800mm, the thickness is between 0.2-3.0mm series of products. 1060 aluminum strip, this series of aluminum strip is a commonly used series, elongation, and tensile strength, conventional requirements, [stamping. Tensile] molding rate., with plasticity, corrosion resistance, electrical conductivity and thermal conductivity, easy to withstand a variety of pressure processing and extension, bending, products commonly used billboards. Building exterior decoration, lamp holder, fan blade, electronic parts, chemical equipment, sheet work pieces, stretch and spin convex utensils, welding parts, heat exchange gas, clock surface and pan surface, kitchen utensils, reflectors, aluminum tape thickness 0.2-3.0 mm, width 10-800 mm. Specifications can be customized.
2.1060 aluminum strip processing requirements need to be formed, but do not require high strength parts components, such as the list. Cable. Optical cable, transformer, heater, sheet workpiece, deep drawing or spinning convex, welding parts, printing plates, various lamp parts,
Third, 3003 alloy strip material formability, corrosion resistance, products. Tanks and tanks for transport tanks, pressure tanks, heat exchangers, chemical equipment, automotive fuel tanks, oil conduit, kitchen equipment。
Corrugated aluminum sheet is introduced
1. (Corrugated aluminum sheet. Corrugated aluminum sheet. Pressed aluminum sheet. Aluminum tile). Light weight. Corrosion-resistant. 1/3 the weight of steel.
2. Aluminum corrugated board. Also known as corrugated aluminum board. Pressed aluminum sheet. Aluminum tile. It is suitable for civil buildings. Warehouse. Roof of the house. Wall. Building. Light weight. Convenient construction. Seismic. Fire. Rain proof.
3 Corrugated aluminum plate. Aluminum tile. Applicable to oil refineries. Power plants. Chemical plant, pharmaceutical plant and other building and roof. Airport terminals, stadiums, theatres, building roofs, floors or walls,
4 Corrugated aluminum plate models are 750, 836, 845, 850, 900... Material 1060.3003 alloy. Thickness 0.6-1.2mm. Length within 10 meters.
5.750 aluminum tile. Full name YX35-125-750. It is made of one meter wide material pressed. The wave height is 35mm, the distance between the waves is 125mm, the effective width is 750mm, and the overall width is 800mm. At present, 750 aluminum tiles are used in power plants, chemical plant projects。
Pattern aluminum plate series: The main sales varieties are five rib pattern plate, orange peel pattern plate, diamond pattern plate, pointer pattern plate and other series, five rib pattern aluminum plate is mainly used in, ship special anti-slip, bus, pedal, garage anti-slip, cold storage anti-slip
Pattern aluminum plate common size specification introduction. Size and thickness calculated in mm,

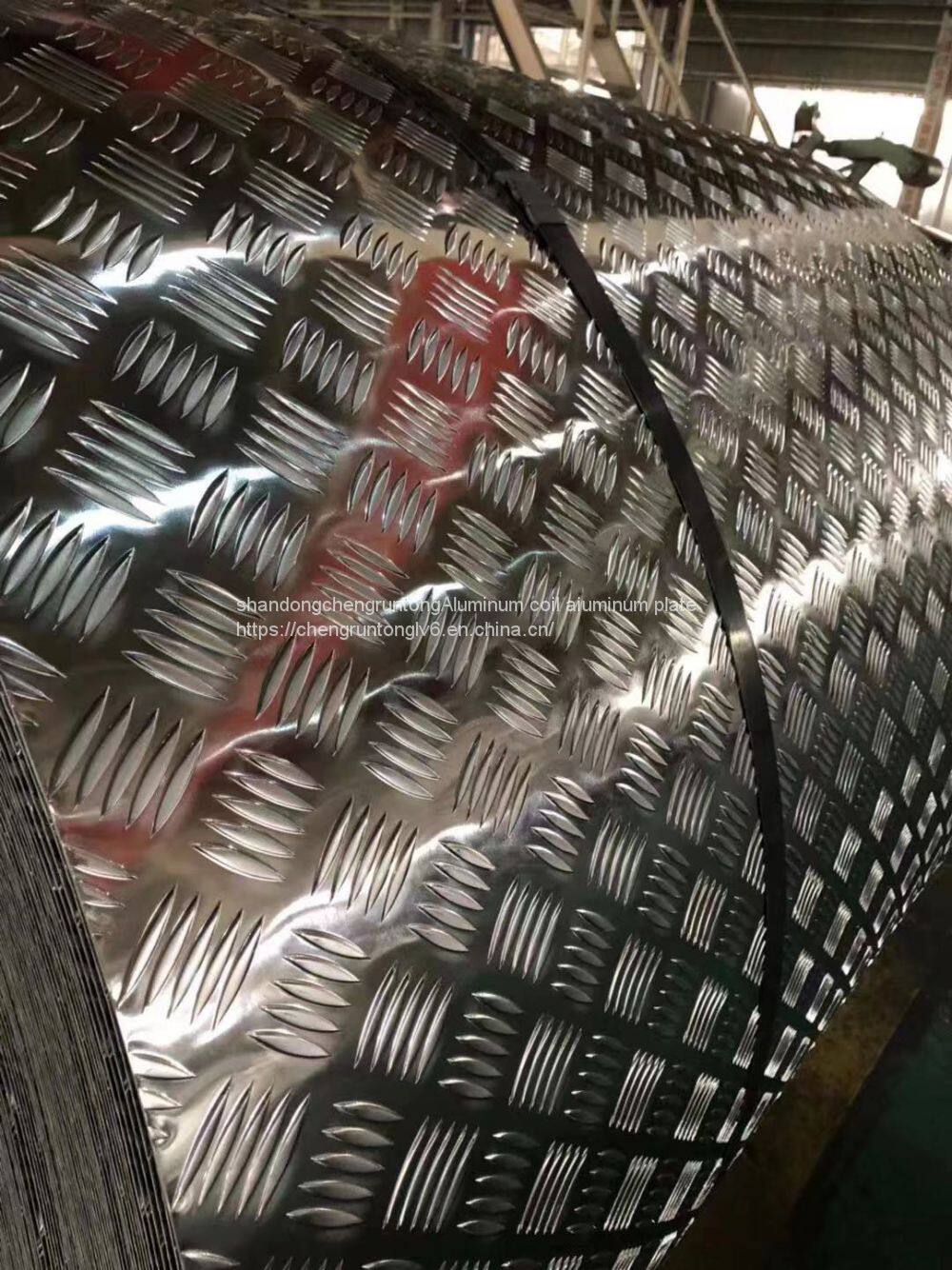

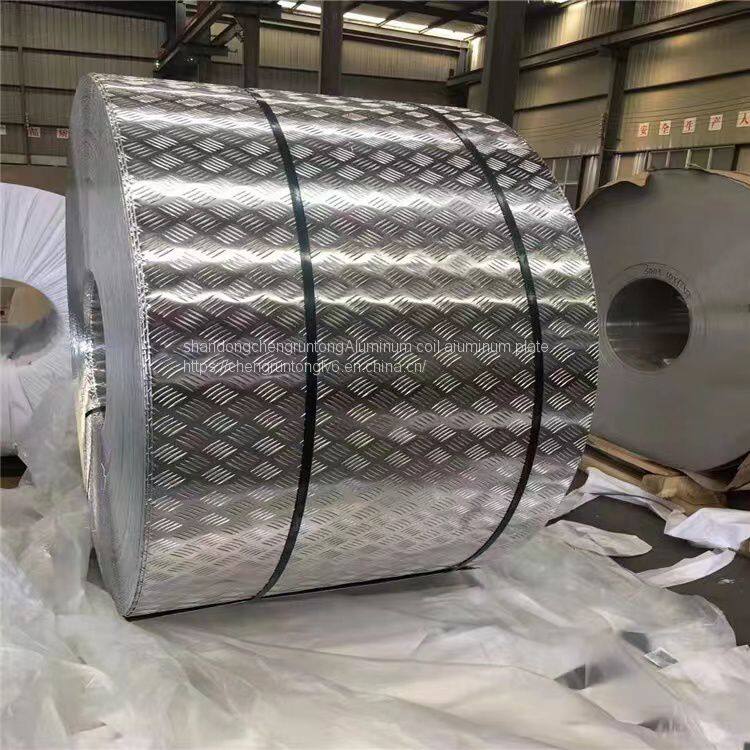

First, the thickness and specifications of five rib pattern aluminum plate, the thickness of 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm. Mm, width and length are.1220*2440, and 1500*3000 mm, the size can be customized.
Two. Pointer type and five rib pattern aluminum plate. Thickness 1.5, 2.0,3.0,4.0,6.0 mm thickness. Width and length specifications 1220*2440. And 1500*3000. The Specifications.

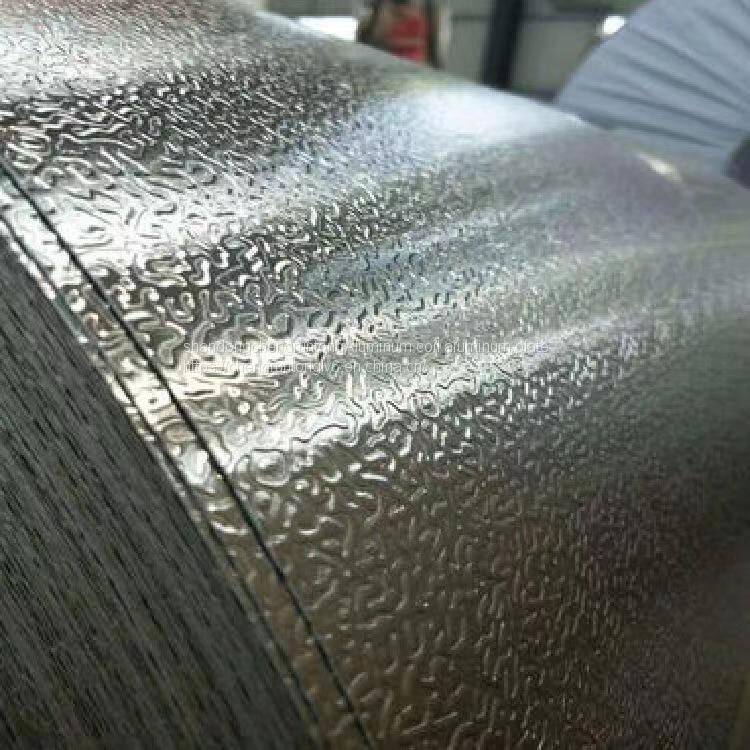

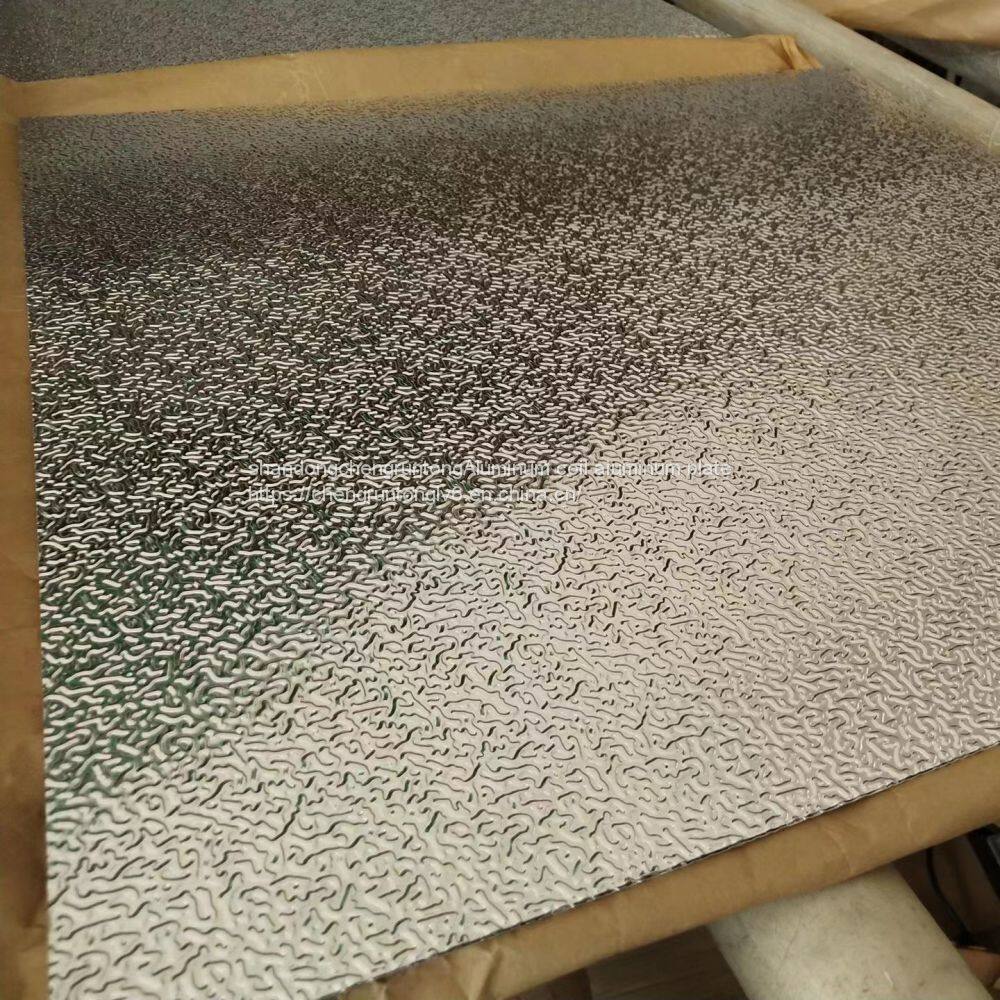

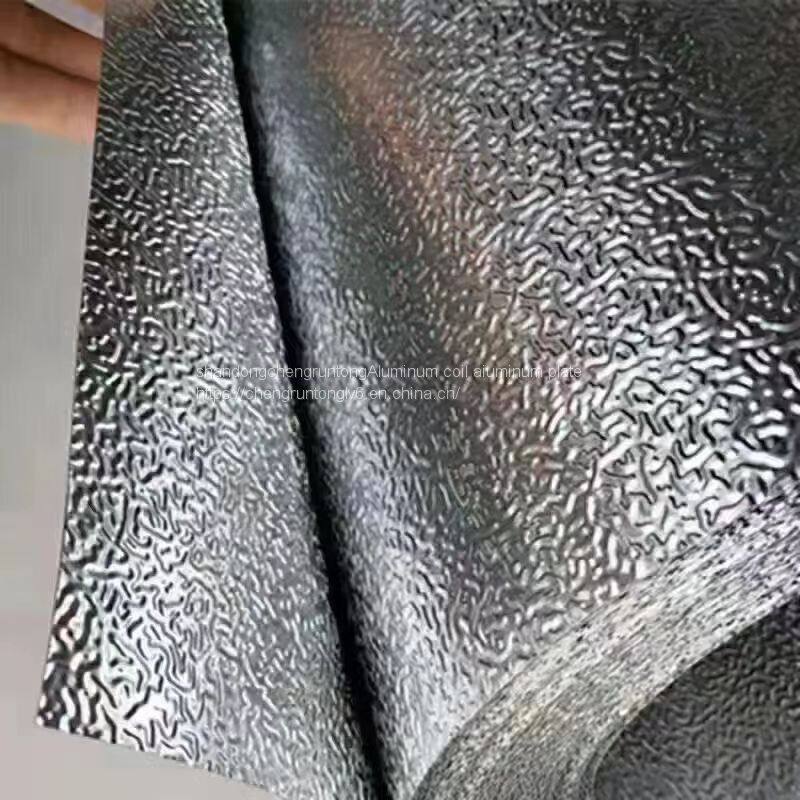

Three. Orange peel pattern aluminum plate and aluminum coil. It is divided into classic pattern aluminum plate and mutated orange peel pattern aluminum plate (also known as worm pattern). Its surface shows a similar orange peel pattern, which is used in refrigerators. Freezers. Air Conditioners. And packaging.
At present, color-coated aluminum coil is one of the more popular products in the aluminum market. The characteristics of its products and better cost performance are widely used in construction, scrap and other fields. With the development of society, there is also a good space for development, it is not only the product, but more importantly the production level of the entire aluminum sheet material, and the development of the market is very important. Next, let's understand the product advantages and characteristics of color coated aluminum coil
Aluminum coil, advanced technology, high folding resistance. The raw materials such as aluminum, plastics and adhesives used in color coated aluminum coil are high-quality products, and advanced composite technology is used to process and manufacture. Therefore, under the change of wind pressure, temperature, humidity and other factors, it will not cause bending, deformation, expansion and so on. Secondly, it can be decorative. Color coated aluminum roll with texture and beauty. You can show the features better. Customers can also be customized according to their own needs, diverse colors and complete specifications. Finally, color stability. The paint pattern formed by coating and high temperature baking has high gloss, good color stability and minimal color difference change.
In summary, the product advantages and characteristics of color coated aluminum coil description, the production and production of color coated aluminum coil is more complex, but each step has laid a good foundation for the performance of the material, so as to have a good market development space, we are not difficult to find that the performance of aluminum coil is very stable, not easy to be corroded, light unit volume. This is also the reason why many architectural decoration industries choose it. At the same time, its color diversity in the decoration has a good sense of decoration, beautiful, with more beautiful experience.
