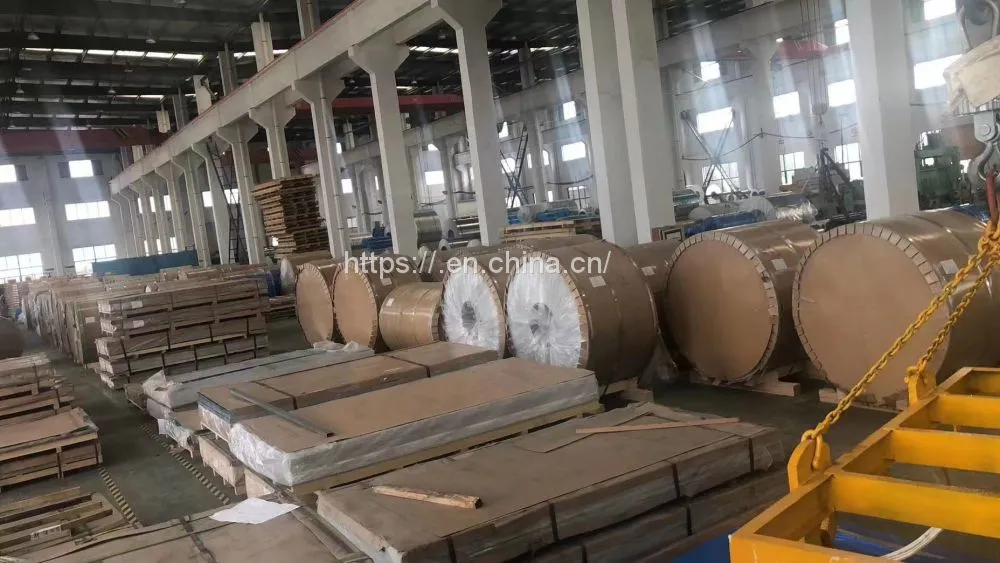

Shandong Chengruntong Aluminum Co., Ltd. is a set of aluminum and aluminum alloy production and operation in one of the comprehensive enterprises, located in Jinan, Shandong Province, the main products are aluminum and aluminum alloy plate, aluminum coil, aluminum strip, aluminum foil, aluminum rod, aluminum tube, aluminum wire, aluminum ingots and other products through the 2000 version of ISO9001 quality system certification. Aluminum foil and other products won the title of provincial and ministerial products.
Products are widely used in aerospace, mold, instrumentation, chemical industry, construction, packaging, anti-corrosion insulation, air conditioning, solar energy, refrigerator and other industries.
Specific products are as follows:

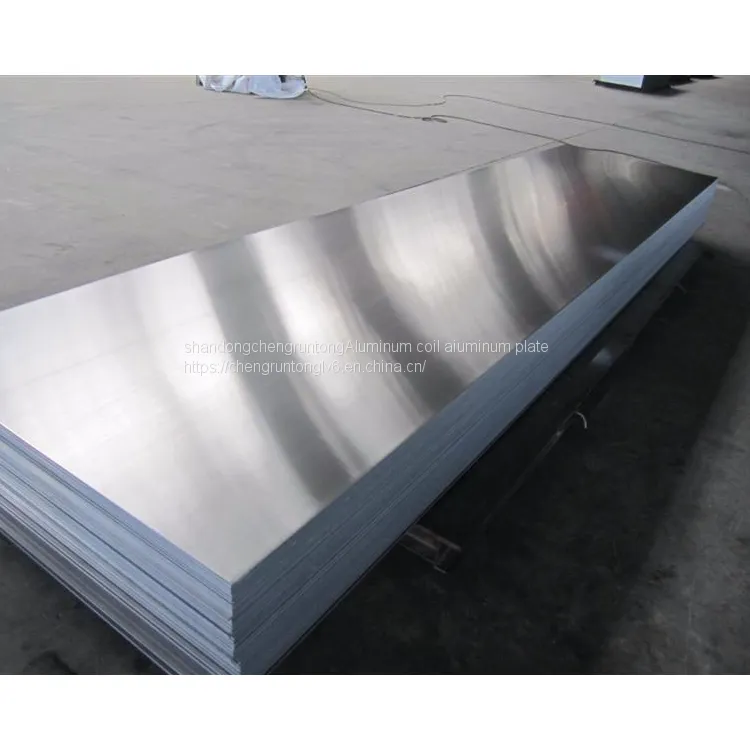

I. Aluminum plate (cold-rolled aluminum plate) (punched aluminum plate)
Material 1060, 1100, 1050, 1145, 8011, 3003, 3004, 5052, 5754, 5083, 6061,
Thickness 0.1mm-- 680mm
Width 800mm----1900mm

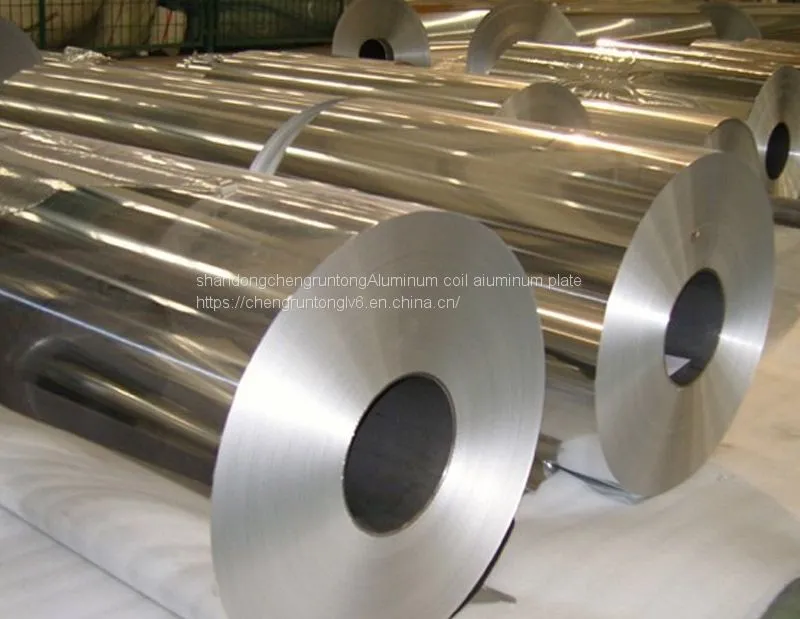

Ii. Aluminum coil (cold rolled aluminum coil)
Material 1060, 1145, 1050, 1100, 8011, 3003, 3004, 5052, 5083, 6061
Thickness 0.10mm----10mm
Width 800mm----1900mm

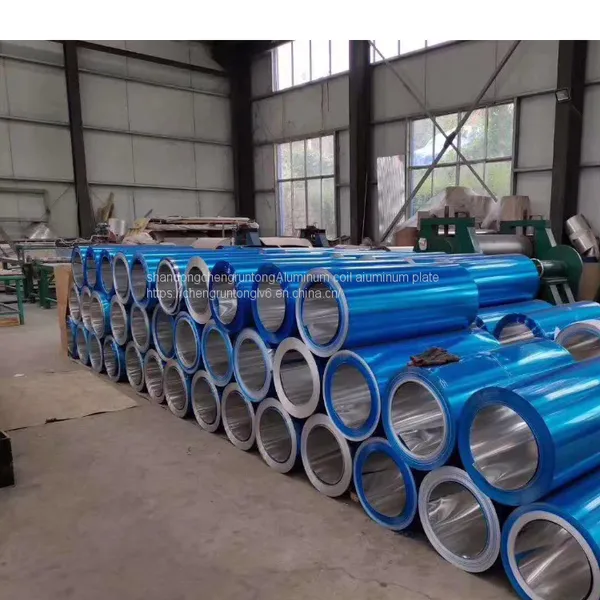

1. Special sheet coil for anti-corrosion insulation (insulation aluminum skin) : material 1060 3003
Thickness 0.3-3.0(mm) Width 1000-1900(mm)

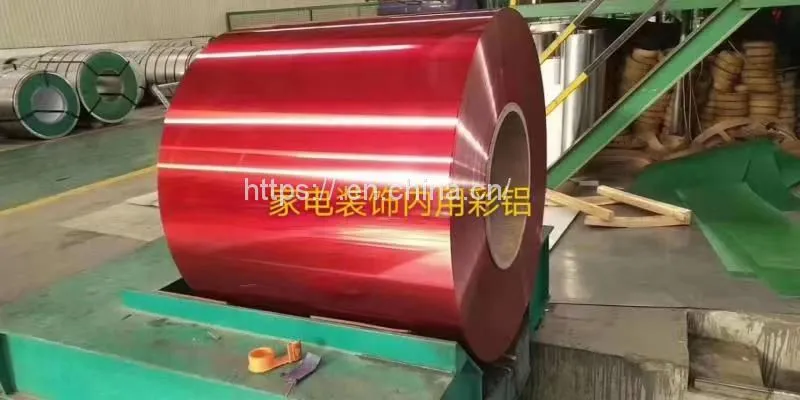

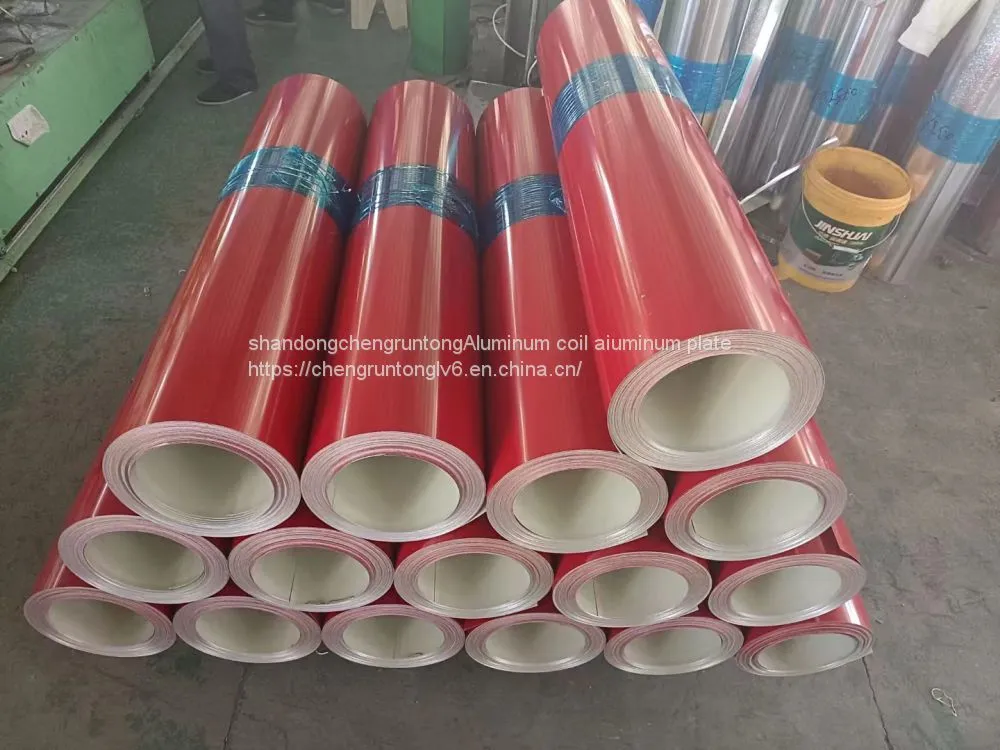

2. Color coated aluminum coil (embossed color coated aluminum coil) : (polyester color coated aluminum coil, fluorocarbon color coated aluminum coil)
Thickness 0.024-1.2(mm) Width 800-1220(mm) Material 1100 1060 3003 5052
3. Aluminum tile for anti-corrosion and insulation (corrugated aluminum sheet) : Material 1060 3003, thickness 0.3-1.5 (mm), aluminum tile model YX35-125-750,YX23-210-840,YX12-100-880,YX14-65-850,YX25-205-820,YX15-225-900

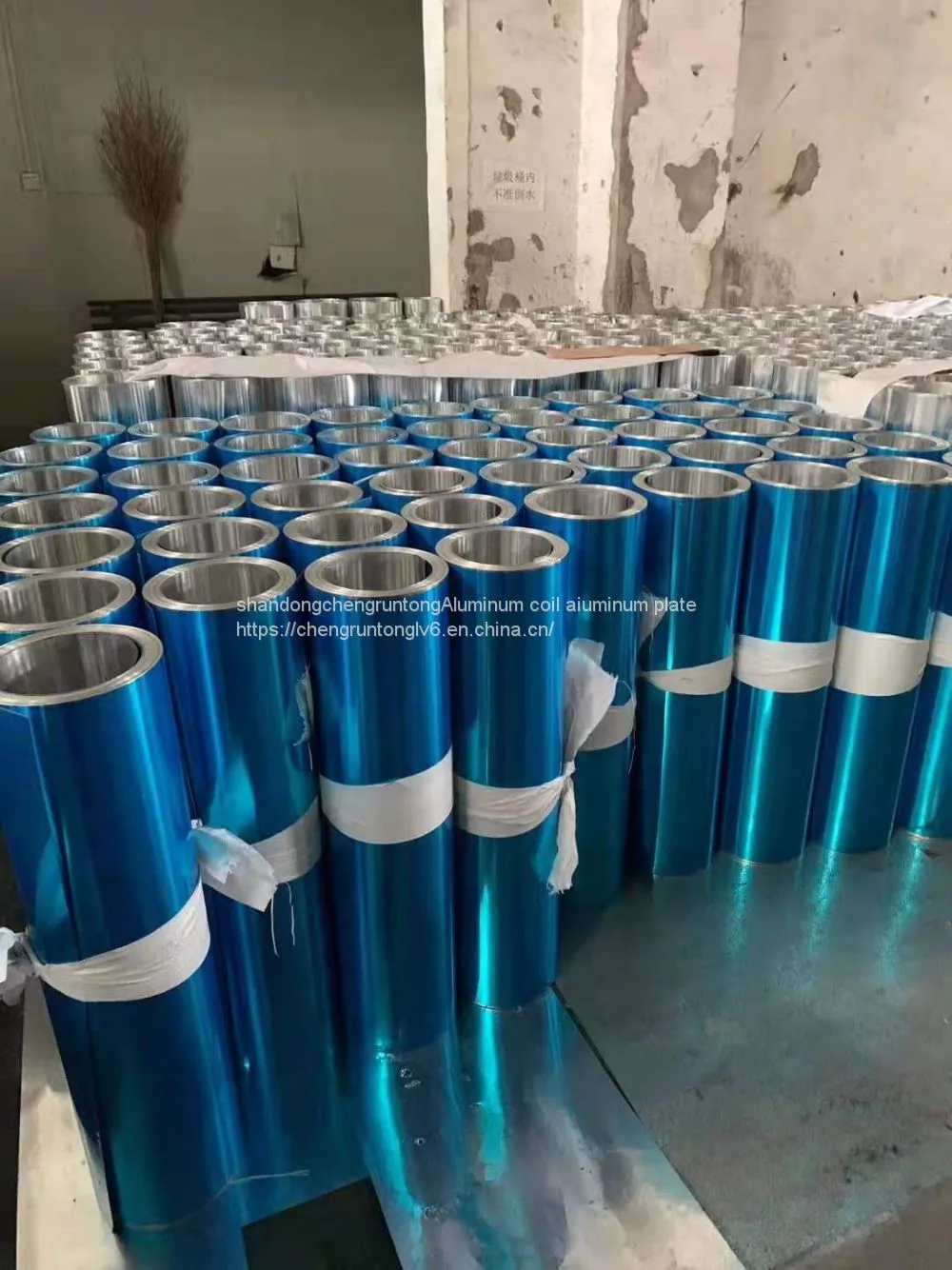

3. Aluminum strip (cold rolled aluminum strip) material: 1060 1100 8011 3003
1. Transformer special aluminum strip material 1060 0 state thickness 0.3-3.0(mm),
2. Aluminum strip material 8011 O state thickness 0.16-0.3(mm),
3. Aluminum foil for cable covering 8011 O 1060 O state thickness 0.12 ~ 0.20(mm),
4. Insulating glass strip with aluminum, material 3003 H16 thickness 0.12-0.4(mm),
5. Patterned aluminum plate: Material 1060 1100 3003 5052

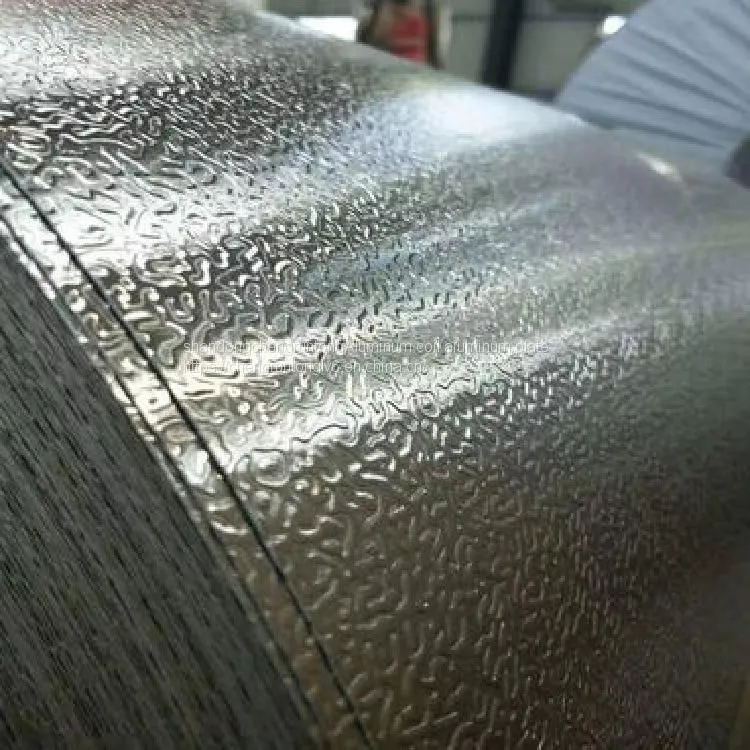

1. Orange peel pattern aluminum plate: thickness 0.01-3.0(mm) Width 800-1220(mm)
2. Semi-spherical pattern aluminum plate: thickness 0.1-1.0(mm) Width 800-1220(mm)
3. Size argyle pattern aluminum plate: thickness 0.1-2.0(mm) Width 800-1220(mm)
4. Five rib pattern aluminum plate: thickness 0.9-8.0(mm) width 800-1220(mm0. Compass pattern aluminum plate, hot rolled aluminum strip. Hot rolled aluminum coil: Hot rolled aluminum sheet: Aluminum sheet. Coated aluminum sheet. Aluminum coil. Alloy aluminum coil. Anti-corrosion insulation aluminum coil. Embossed aluminum sheet roll. Corrugated aluminum sheet
1. (Corrugated aluminum sheet. Corrugated aluminum sheet. Pressed aluminum sheet. Aluminum tile). Light weight. Corrosion-resistant. 1/3 the weight of steel.
2. Aluminum corrugated board. Also known as corrugated aluminum board. Pressed aluminum sheet. Aluminum tile. It is suitable for civil buildings. Warehouse. Roof of the house. Wall. Building. Light weight. Convenient construction. Seismic. Fire. Rain proof.
3 Corrugated aluminum plate. Aluminum tile. Applicable to oil refineries. Power plants. Chemical plant, pharmaceutical plant and other building and roof. Airport terminals, stadiums, theatres, building roofs, floors or walls,
4 Corrugated aluminum plate models are 750, 836, 845, 850, 900... Material 1060.3003 alloy. Thickness 0.6-1.2mm. Length within 10 meters.
5.750 aluminum tile. Full name YX35-125-750. It is made of one meter wide material pressed. The wave height is 35mm, the distance between the waves is 125mm, the effective width is 750mm, and the overall width is 800mm. At present, 750 aluminum tiles are used in power plants, chemical plant projects,
Model 6,840 aluminum tile. Full name YX24-210-840 type, its material is one meter width, wave height is 24mm, wave width is 210mm, effective width is 840mm, the overall width is about 900mm,
7.900 type aluminum tile, full name YX15-225-900 type, its material is one meter width pressing. The wave height is 15mm, the wave spacing is 225mm, the effective width is 900mm, a total of 4 bands.
8. Aluminum tile is also called corrugated aluminum plate, pressed aluminum plate, aluminum alloy corrugated plate, etc., which is often used in the construction industry. Is the use of aluminum roll cold bending into various waveforms of aluminum sheet, it is suitable for industrial and civil buildings, warehouses, special buildings, long-span steel structure of the roof, wall and interior and exterior wall decoration, with light weight, high strength, rich color, convenient construction, seismic, fire, rain, long life, and other characteristics, has been widely used.
Corrugated aluminum plate is our company's mature products, our company is equipped with 750, 840, 850 and other types of tile pressure equipment, according to customer requirements to press the mainstream of the market corrugated aluminum plate. Our company can produce 0.2-1.5mm thickness of aluminum shingles, the current mainstream shingles 750 840 850 and 900 hot sales, our company can according to your requirements to press the ultra-long aluminum shingles, the year round with the required aluminum rolls, color coated aluminum rolls, can be shipped in time. Welcome to consult and negotiate。
