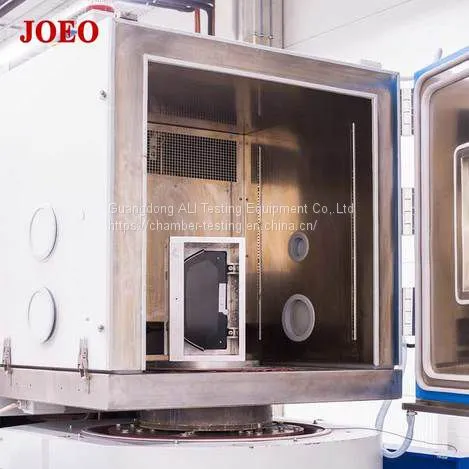

Help CenterWalk In Temperature And Humidity Control Chamber 8000L Inner Volume
Related Products
-
Stainless Steel Thermal Vacuum Chamber Used for Testing Solar CellsNegotiableMOQ: 1 Bag -
Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety HammerNegotiableMOQ: 1 Bag
-
Real Programmable Simulation Environment Climate Test Chamber For LaboratoryNegotiableMOQ: 1 Bag
-
UL Temperature High Altitude Simulation Chamber Waterproof MultipurposeNegotiableMOQ: 1 Bag
-
Thermal Shock Test Chamber(2 Zone)--Thermal Chamber ManufacturersNegotiableMOQ: 1 Bag
Description:
1. It can provide large-scale parts, semi-finished products, and finished products in the industry for temperature and humidity environmental testing. It is mainly composed of control panels, switchboards, thermal insulation panels, blowers, heaters, humidifiers, and refrigerators. The main specifications are divided into seven standard indoor sizes. And 28 different condition test specifications.
2. The impact test chamber adopts the horizontal diffusion vertical heat exchange circulation system of the centrifugal air supply method to avoid dead angles and make the indoor temperature and humidity distribution even.
3. The IPC1000 controller can be connected to the computer via the RS 232 interface. Users can design programs on the computer, collect test data and records, call program execution, and remotely control the machine to switch on and off.
4. When an abnormality occurs, the controller screen will display the fault situation in time, cut off the power switch, and provide troubleshooting methods.
If you need more models about our test equipment, please reference our chamber-testing（.）com
Application:
It is a reliability testing equipment for cold resistance, heat resistance test and quality control engineering of various electronic, electrical, electrical, plastic and other raw materials and devices; especially suitable for optical fiber, LCD, crystal, inductor, PCB, battery, computer, mobile phone and other products High temperature resistance, low temperature resistance cycle test.
Features:
1. Provide an observation window to observe the experimental process;
2. The controller adopts an imported liquid crystal color display screen, which can display the measured value, set value, and time at the same time;
3. The double insulation layer of the door is tightly sealed, which can effectively isolate the internal temperature leakage;
4. Refrigeration compressor selection of authentic German imported GEA blog, Bitzer high efficiency, energy saving compressor, high reliability of operation;
5. Optional HD camera system to monitor the whole test process;
6. With leakage, over temperature, over-voltage, overload, abnormal sound, and light alarm safety protection function.
| Model | GS-204G | GS-205G | GS-206G | GS-207G | |
|
Specification
|
Inner volume | 8000L | 16000L | 24000L | 120000L |
|
Studio size (mm) |
W2000 *H2000 *D2000 |
W2000 *H2000 *D4000 |
W3000 *H2000 *D4000 |
W8000 *H2500 *D6000 |
|
| Dimensions | Subject to actual size | Subject to actual size | Subject to actual size | Subject to actual size | |
| Box structure | Carton size | Thickened cold-rolled steel sheet, paint (gray) treatment | |||
| Inner box size | Thickened SUS#304 stainless steel for easy cleaning | ||||
| Box door material | Thickened cold-rolled steel sheet, paint (blue) treatment | ||||
| Observation window | The door is equipped with 4 layers of electric heating film anti-condensation hollow tempered glass | ||||
| Main Specifications | Control method | Touch LCD color display | |||
| Temperature range | -50~+100℃; (can be customized) | ||||
| Cooling rate | +85℃→-40℃ 1℃/min | Heating and cooling rate: The average load in the whole process: 100~2000kg | |||
| Heating rate | -40℃→+80℃ 1℃/min | ||||
| Temperature resolution | 0.01℃ | ||||
| Temperature deviation | ≤1.5℃ | ||||
| Humidity uniformity | ≤2℃ | ||||
| Humidity Fluctuation | ±0.5℃ | ||||
| Refrigeration Compressors | Genuine original German imported GEA blog, Bitzer high-efficiency, energy-saving low-temperature compressor | ||||
| Camera surveillance system | The high-definition camera system in the test area (optional) | ||||
| The standard configuration | Host, sample holder 2 sets | ||||
| Accessibility | Voltage, temperature acquisition, safety explosion-proof system, smoke emission system, smoke filter system (optional) | ||||
| Safety protection | Leakage, over temperature, over-voltage, overload, abnormal sound, and light alarm | ||||
| Voltage | AC380V 50Hz | ||||
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), began to engage in the R & D and production of test instruments in 2011 and established the foreign trade department in 2013. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
