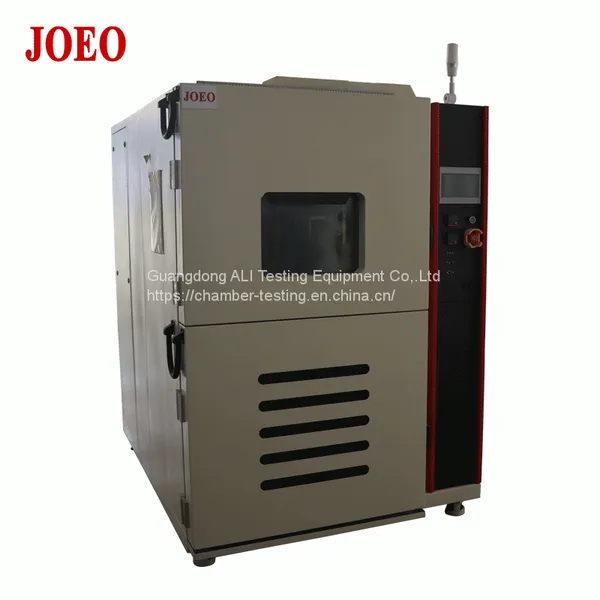

Weiss Climate test Chamber Temperature Test Range -70~180℃ Used For Laboratory
- 300 Bag / Bags per Month
- Guangdong,China
- T/T L/C
- 15 days
- Hyperbaric Pressure Test Chamber Can Be Used In Aerospace, Automotive Parts Fields
- Certification Formaldehyde VOC Emission Test Chamber For Decoration Industry
- Programmable Corrosion Test Chamber Can Be Used For Material Corrosion Test
- Tenney Altitude Test Chamber Can Be Controlled Remotely For Battery Testing
- Water-Cooling Xenon-Lamp Climate Resistance Test Chamber Used For Factory
- Xenon Arc Accelerated Aging Test Chamber For Laboratory Material Testing
Product Description
product presentation:
Weiss test box shoes use constant temperature .test boxes with seasonal variations, different climate zones - duct must be able to withstand various temperatures during.manufacturing, transportation, storage, and use. The Weiss test...chamber has a wide range of applications, allowing you to control. the temperature and humidity in the chamber, ranging from.-70 ° C to+180 ° C (temperature) and from 10% to 98%(relative humidity). It will help you test the impact of.temperature and humidity on product characteristics, functionality, and lifespan under accelerated conditions.
feature
1.Better air duct design Double air duct, connected with chamber but isolate, air out from top and return from bottom. The racks is made of high-quality cold-formed stainless steel plate,adjustable louver for air outlets.
2.Extended control panelEquipped with independent over- temperature protector,2 groups of 220V power sockets, communication interface and leakage circuit breaker for the .main power supply of the equipmen
3.Electronic temperature humidity sensor.Adopt VAISALA electronic humidity sensor importedfrom Finland;its humidity resolution can reach0.01%rh. No need to change.wet cloth, avoid adding tedious work.
4.Automatic water replenishment.Equipped with automatic water replenishment system, double-layer.filter device. New structure design, high efficiency
and low water consumption.If you need more models about our test equipment, please reference our chamber-testing(.)com
Product Paramenters:
Model | GS407 | |
System | Temperature and Humidity Balance Control (BTHC) System | |
Test area capacity | 64L | |
Test area load-bearing capacity | 30KG | |
Internal dimensions W×H×D mm | 400*400*400 | |
Dimensions W×H×D mm | 640*1688*1305 | |
Weight | 400kg | |
Power | 1φ220V AC&50/60Hz,24A or 3φ380V AC&50/60Hz,10A | |
Performance | Temperature & Humidity Range | -70~+100℃ (+150℃/+180℃) / 10~98%rh |
Temperature & Humidity Fluctuations | ±0.3°C / ±2.5%rh | |
Temperature uniformity | 1.5°C | |
Temperature change rate | Heating rate:3.0°C/min Cooling rate:2.0°C/min | |
Extreme temperature reach time | Heating time:from+20 to+100℃ 30 minutes Cooling time:+20 to -20°C 20 minutes | |
Allowable heat load | est area temperature +20°C:300 W | |
Structure | Appearance material | Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion |
Test area material | 1.2mm thick SUS304 stainless steel | |
Heater | Finned Nichrome Explosion-Proof Heater | |
Humidifier | Stainless Steel Sheathed Humidifier (Steam Humidification) | |
Condenser | Air-cooled condenser | |
Air circulator | Centrifugal fan | |
Water supply | Standard water tank 10 L | |
Refrigeration unit | System | Mechanical single-stage compression cooling |
Compressor | Scroll/Piston Compressor | |
Refrigerant | R404A [R449A available on request] | |
Power | 3.0 Kw | |
Noise level | 68dB |
