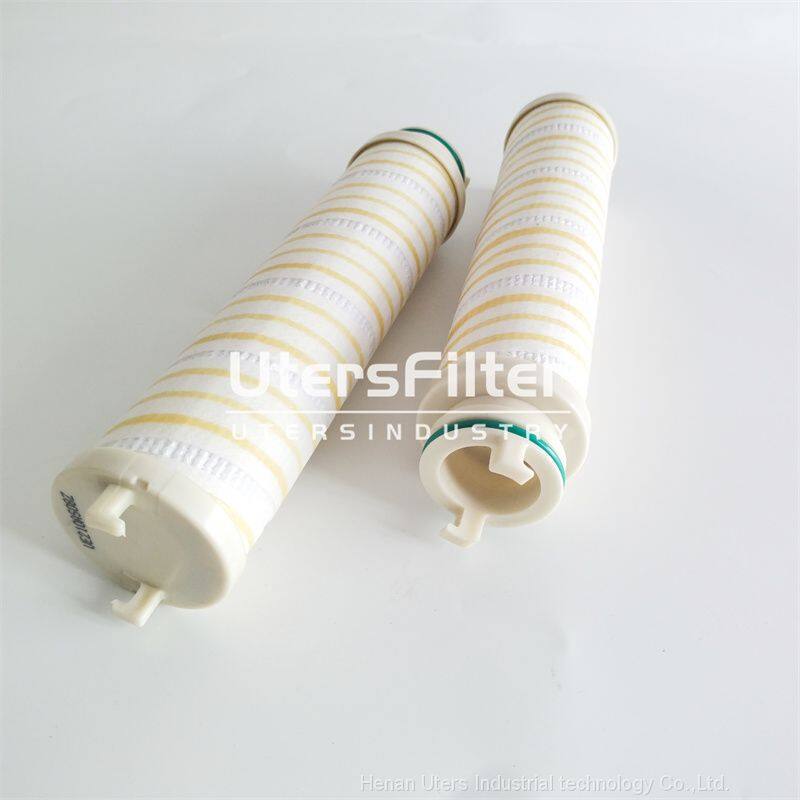

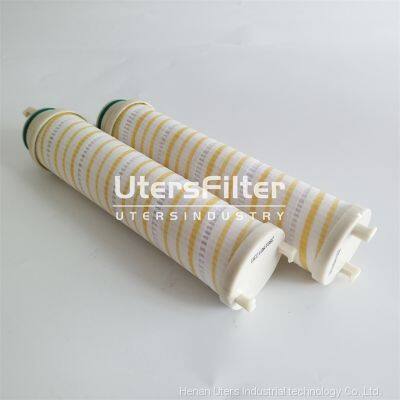

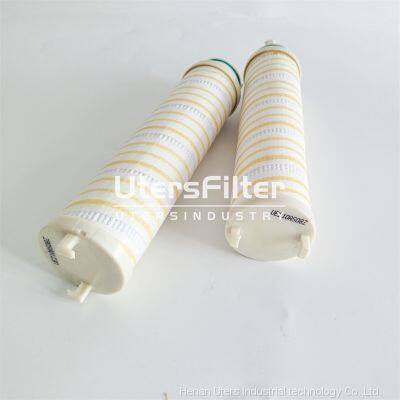

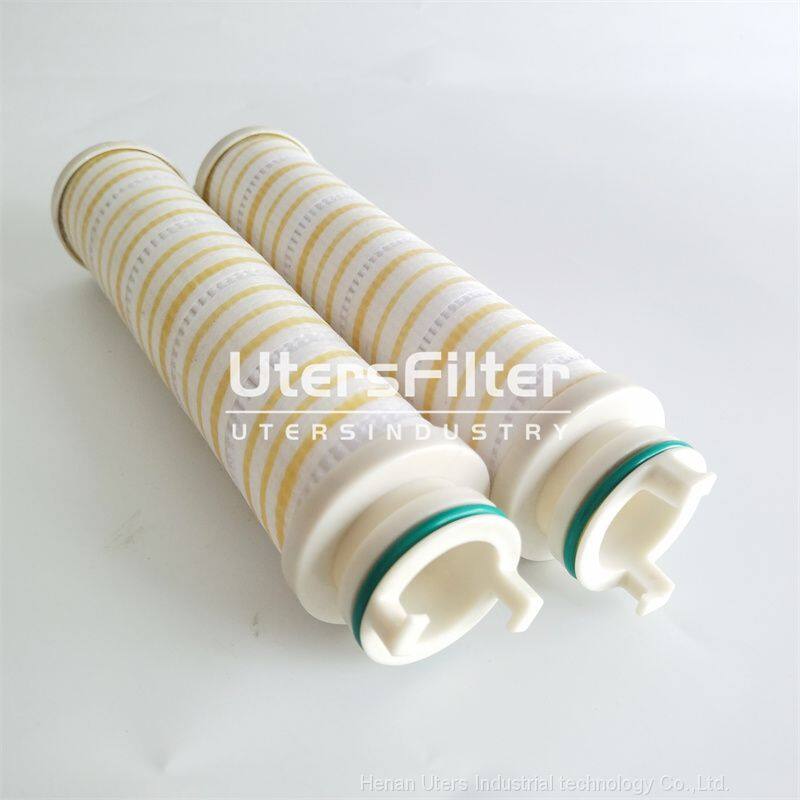

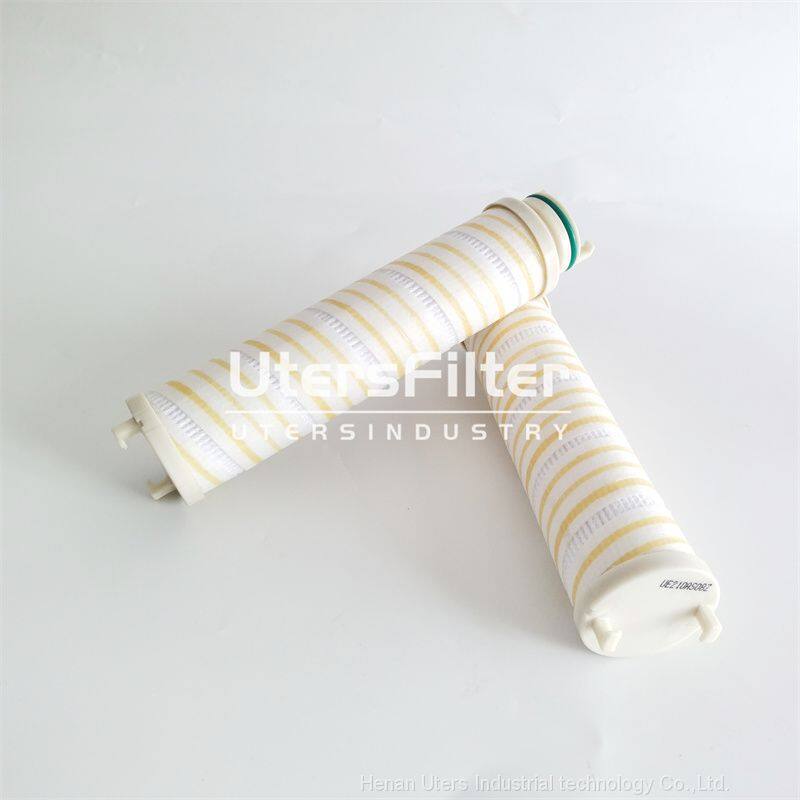

UE209AT03Z UE209AS03Z UTERS replace of PALL Hydraulic filter element
Filter Element Application:
The hydraulic oil filter element is an indispensable part of the pipeline series of the conveying medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium and to protect the normal operation of machinery and equipment.
The application range of hydraulic oil filter elements is very wide, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper making, chemical industry, machine tools and construction machinery, construction machinery and other fields.
Filter Element Features:
1. Filtration accuracy: 1-200um filtration ratio: X≧99.9
2. Working pressure: (MAX) 21Mpa
3. Working medium: hydraulic oil; lubricating oil; fluid medium such as industrial water
4. Working temperature: -30℃~+110℃
5. Filter material: high-strength stainless steel mesh; glass fiber; filter paper and other materials
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Quality Standard:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Package Pictures
Product Extension
PALL UE310 filter element UE310AN08J/UE319AN08J
PALL UE310 filter element UE310AN08Z/UE319AN08Z
PALL UE310 filter element UE310AN20Z/UE319AN20Z
PALL UE610 filter element UE610AN20H/UE619AN20H
PALL UE610 filter element UE610AN20Z/UE619AN20Z
PALL UE610 filter element UE610AN40H/UE619AN40H
PALL UE610 filter element UE610AN40Z/UE619AN40Z
PALL UE310 filter element UE310AN13H/UE319AN13H
PALL UE310 filter element UE310AN13Z/UE319AN13Z
PALL UE310 filter element UE310AN20H/UE319AN20H
PALL UE310 filter element UE310AN40H/UE319AN40H
PALL UE310 filter element UE310AN40Z/UE319AN40Z
