Help Center3BBL 5BBL 7BBL Compact Brewing Kettle
Related Products
-
30HL 40HL 50HL Turnkey Brewery Commercial Beer Brewing EquipmentUS$ 10000 - 150000MOQ: 1 Set -
Beer Brewing System Brewhouse Brewery Mash UnitUS$ 20000 - 80000MOQ: 1 Set
-
5BBL 7BBL 10BBL TRADITIONAL 2VESSEL BREWHOUSEUS$ 15000 - 60000MOQ: 1 Set
-
3HL 5HL 10HL Three Vessel Company Brewhouse Steam HeatedUS$ 5000 - 60000MOQ: 1 Set
-
Beer Conical Fermenter Beer Brewing TankUS$ 2000 - 30000MOQ: 1 Set

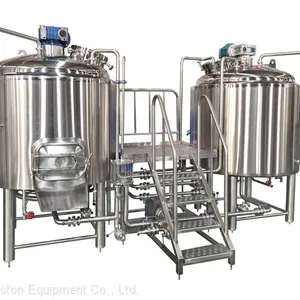

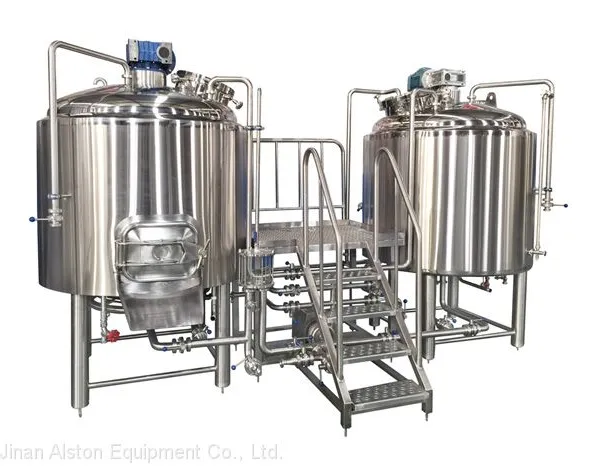

3BBL,5BBL,7BBL,10BBL Three vessel compact brewing system.
Mash lauter tank, Kettle Whirlpool, hot water at the lower part.
Description
Capacity: 3HL, 5HL, 10HL Or 3BBL 5BBL 7BBL 10BBL or customized
Heating method: Electric / steam / gas fired
Efficiency: 1-3Brews per day
The traditional three vessel combined brewhouse configuration is mash / lauter (uper)+hot water tank(lower)+ boiling tank / whirlpool tank.
It is flexible to do either decoction or infusion mashing process. The whole brewhouse sized as exact beer plato / gravity from client.
The whole system is compact and easy to install.
Standard Setup
● Mash / Lauter tank : Upper lauter tun, with top stir, VFD, lower hot water tank with electric heating
● Kettle/ whirlpool tank: electric or gas fire for heating, tangent wort inlet.
● Support fittings: double / single stage plate cooler, piping strainer, grist hydrator, wort sink etc
● Standard brewhouse platform or customized
● All pump & Stir with VFD
● Valves to be manual butterfly one or pneumatic
● Piping connection to be TC or DIN.
Features
● Mash boiling tank combined for decoction brewing
● To stir with shaft connector to lower the twist force
● Natural filter by gravity and get more clear wort
● Well adjusted temp and water blending unit for better grain and water mixing
● Special tank and piping construction to avoid the wort aeration problem and decrease the material lost
● Special designed steam condensing unit, with both steam condensing and water heating function
● Brewhouse automation with possible upgrading.
● The whole system can be installed on platform for easy removing and installation
