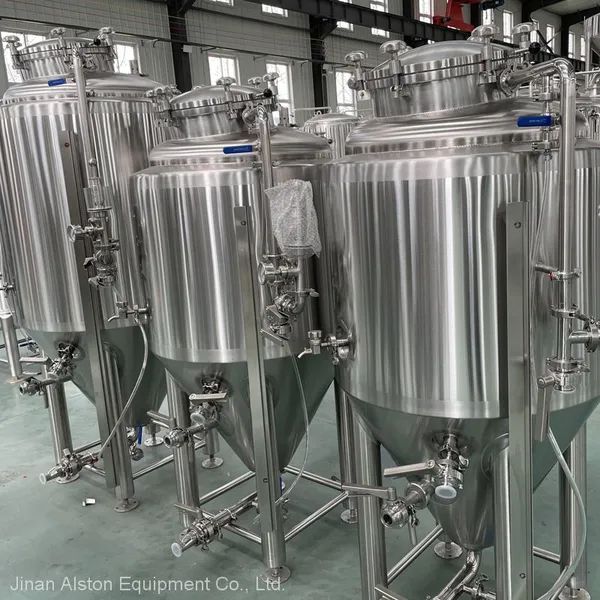

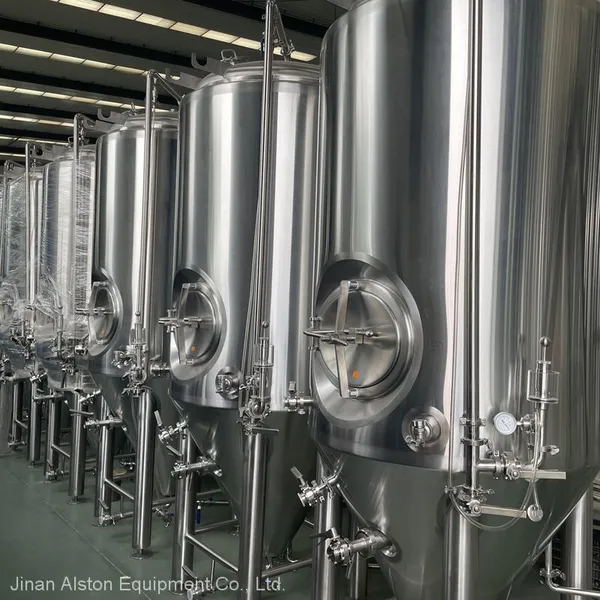

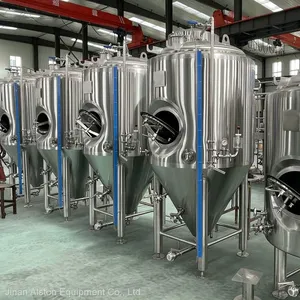

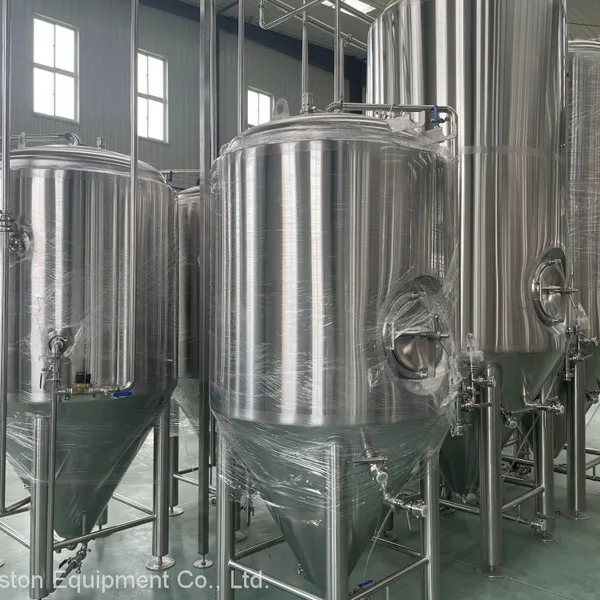

Beer Fermentation Unitank 1-300BBL
US$ 5000 - 80000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ASTE/Alston Brew
Place of Origin:
China
Model Number:
as design
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, Tianjin or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brewery Beer Fermenting Vessel 1000L 20HL 5HL 30HLUS$ 7000 - 60000MOQ: 1 Set -
Stacked Beer Fermentation Tank Unitank and BrewingUS$ 2000 - 8000MOQ: 1 Set
-
Stainless Steel Conical Beer Fermentation Tank Beer Fermenting TankUS$ 2000 - 50000MOQ: 1 Set
-
Beer Conical Fermenter Beer Brewing TankUS$ 2000 - 30000MOQ: 1 Set
-
Vertical Stainless Steel Jacket Bright Beer Tank 500L-20000LUS$ 2000 - 9000MOQ: 1 Set
Brand Name
ASTE/Alston Brew
Place of Origin
China
Model Number
as design
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
5 years
Weight
as design
Dimension(L*W*H)
as design
Condition
New
Voltage
customized
Power(W)
as design
Processing Types
Other, beer, kombucha, cider
1.Brewery Fermentation system:
Beer Unitank, Function: beer fermenting&Serving
Working Capacity: 1BBL/100L-50BBL/5000L.
Inner Diameter: Requirement.
PU Insulation: 80-100mm
Outside Diameter: Requirement.
All tanks are made by sanitary SS304 material,
which meet domestic and international food safety and hygiene standard.
They are cylindrical cone bottom tank, the cone is 60° for exhaust the yeast easier.
The tanks with dimple cooling jacketon cone and cylinder, cooled by glycol water.
Also the glycol inlet is seperated control according to volume of tank.
Type: Double Sayer Conical Tank, Single Wall Conical Tank.
Beer Unitank, Function: beer fermenting&Serving
Working Capacity: 1BBL/100L-50BBL/5000L.
Inner Diameter: Requirement.
PU Insulation: 80-100mm
Outside Diameter: Requirement.
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
All tanks are made by sanitary SS304 material,
which meet domestic and international food safety and hygiene standard.
They are cylindrical cone bottom tank, the cone is 60° for exhaust the yeast easier.
The tanks with dimple cooling jacketon cone and cylinder, cooled by glycol water.
Also the glycol inlet is seperated control according to volume of tank.
Type: Double Sayer Conical Tank, Single Wall Conical Tank.
Volume: 1HL-200HL, 1BBL-200BBL. (Support Customized).
Specifications
1.All AISI-304 Stainless Steel Construction
2.Jacketed & Insulated
3.Dual Zone Dimple Cooling Jacket
4.Dish Top & 60° Conical Bottom
5. Stainless Steel Legs with Leveling Ports
Fermenter Includes:
1.Top Manway or Side Shadow less Manway
2.Racking Port with Tri-Clover Butterfly Valve
3.Discharge Port with Tri-Clover Butterfly Valve
4.2 Tri-Clover Outlets with Butterfly Valves
5.CIP Arm and Spray Ball
6.Sample Valve
7.Shock proof Pressure Gauge
8.Safety Valve
9.Thermowell
10.Carbonation stone
