Zero buoyancy winch cable Kevran tension shielded twisted-pair signal cable and power supply seawater protection combined underwater cable
Zero buoyancy line US standard specification
American standard buoyancy line commonly used specifications are 28AWG, 26AWG, 24AWG, 22AWG, 20AWG, etc., cable commonly used core number has 2 core,4 core, 6 core, 8 core 1*2*26AWG,2*2*26AWG,3*2*26AWG,4*2*26AWG, etc. The specific cable core number and specification size can be customized according to user requirements. Some products such as 2*2*26AWG,4*2*26AWG,2*28AWG, etc., tensile is the use of imported Kevlar bulletproof wire woven mesh tensile strength, high tensile strength. Shanghai Rusheng Wire and Cable Co., Ltd. can be customized according to the requirements of various special requirements of underwater ROV cables.
Zero buoyancy line required
The cable is required to have good underwater sealing performance, long-term work can not have the skin damage and water penetration into the cable to affect the normal work of the cable bad situation, used to meet different water depths, control signals and various sensor test signal transmission, the cable is required to have good bearing capacity and impact resistance. It can process special watertight load-bearing cables with integral vulcanized watertight bearing connectors at both ends.
Zero buoyancy line use
Zero buoyancy line is used for underwater monitoring, mapping, exploration, such as underwater robots, underwater unmanned gliders, all kinds of submersible motors, etc., for the investigation of offshore oil resources, as a special requirement cable for offshore oil drilling platforms, as a cable for the use of warships and ships.

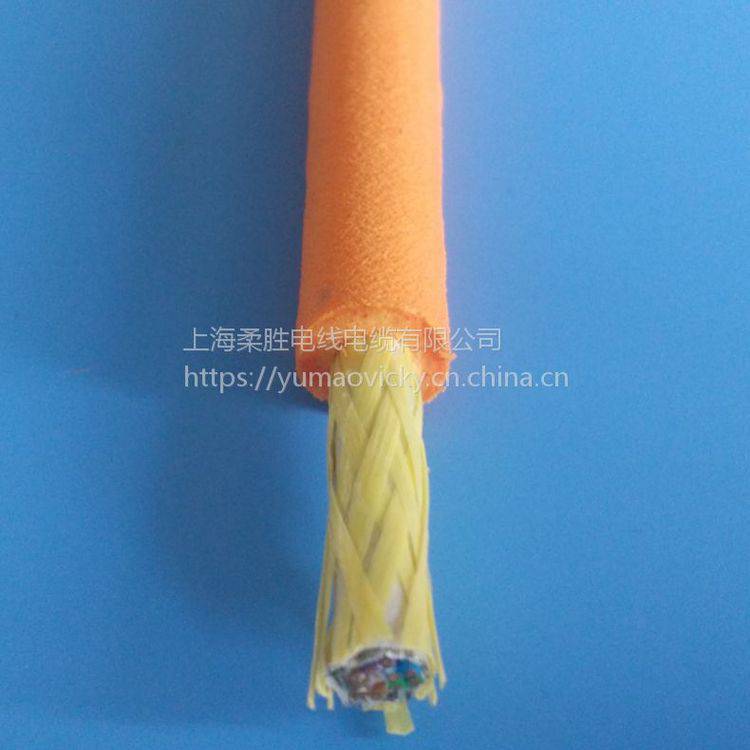

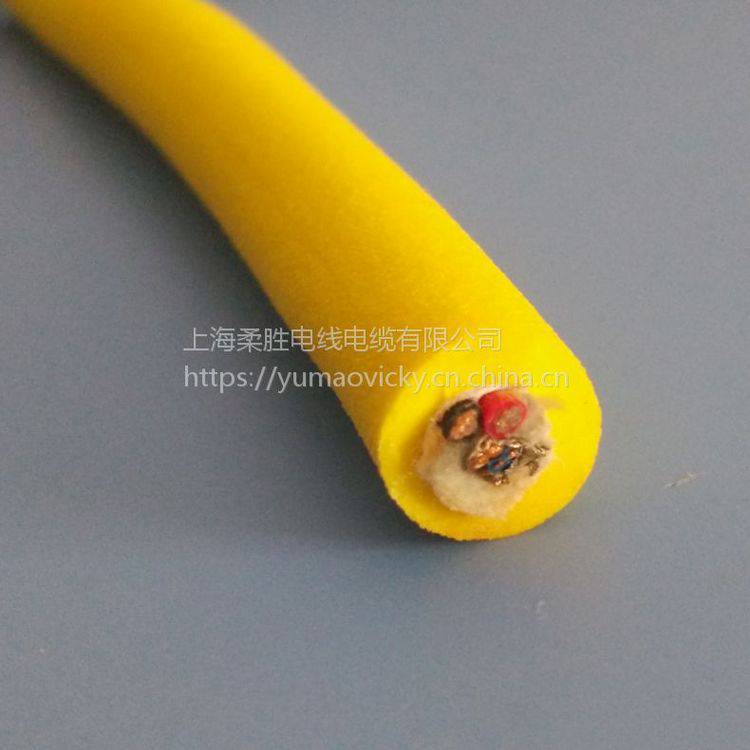

Zero buoyancy line structure
Conductor: multi-strand ultrafine stranded oxygen-free copper wire
Insulation: special high density material against sea water
Color: core line color separation
Mask: No option
Tensile parts: Kevlar bulletproof fiber braided
Sheath: Polyurethane (PUR)
Color: Sheath color yellow
Rated voltage: 300/300V
Test voltage: 2500V
Working water depth: 100 meters
Zero buoyancy line operating temperature
Fixed installation -40℃ to +85℃
Mobile installation: -30℃ to +85℃
Zero bending radius of buoyancy line
Fixed installation: 5 x cable diameter (D)
Mobile installation:
When the travel is less than 10 meters, the bending radius is 7.5×d
When the stroke is ≥10 meters, the bending radius is 10×D
Main products of Rousheng Company:
Zero buoyancy cable, anti-seawater cable, underwater robot cable, floating cable, underwater photoelectric composite cable, high flexible tow chain cable, Low temperature and cold resistant cable, cable, oil resistant cable, lift cable, high flexibility and torsion cable, polyurethane (PUR/TPU) tow chain cable, servo cable, driving handle line, video transmission cable, encoder cable, sensor signal line, robot cable, flat cable, elevator cable, crane cable, reel cable, grab machine cable, scraper cable, rock drill cable , gantry cable, sling cable, elevator cable, reel cable, tow chain cable, tow chain video cable
