Product Overview
Four-axis 3D CNC Foam Cutter is mainly used for cutting the lost foam mold. The equipment is controlled by a computer and does not need to be programmed. It can be cut by drawing a graphics file readable by the cutting software with AutoCAD on the computer. Realize the automatic cutting of single-section and double-section models, which saves time and improves production efficiency.
Product structure

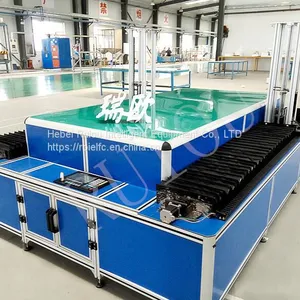

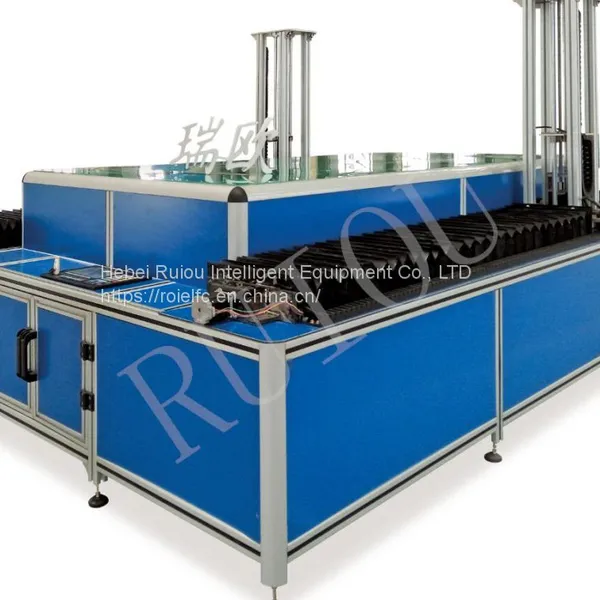

The four-axis CNC foam cutting machine is mainly composed of a body, a tower, a control box, a computer and its cutting accessories (resistance wire, fish mouth clip, etc.).
Four-axis 3D Foam Cutting Machine Performance and Features
1. High degree of automation, direct control of codes or drawings on the computer side, automatic cutting can be realized, and the efficiency is high, which is several times that of manual mold making.
2. There are many types of cutting patterns, which can realize most types of cutting of double-section entities.
3. Save materials, realize computer typesetting, and make the best use of the material.
4. The Y axis is driven by a ball screw cylinder. The accuracy of the ball screw cylinder is level 5. The X axis is driven by a rack and pinion.
5. The driving motor is a stepping motor, which adopts the brand standard series stepping motor, which has strong interchangeability.
6, having a cutting software GMFC same proportion graphics rendering function, for example an equilateral triangle, the current drawn through the other of dxf plt code file format or an equilateral triangle, without re-rendering its different sized equilateral triangle shape, the software simply Just change two parameters in. (Use with caution in different cross-section patterns).
