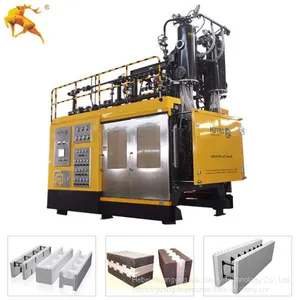

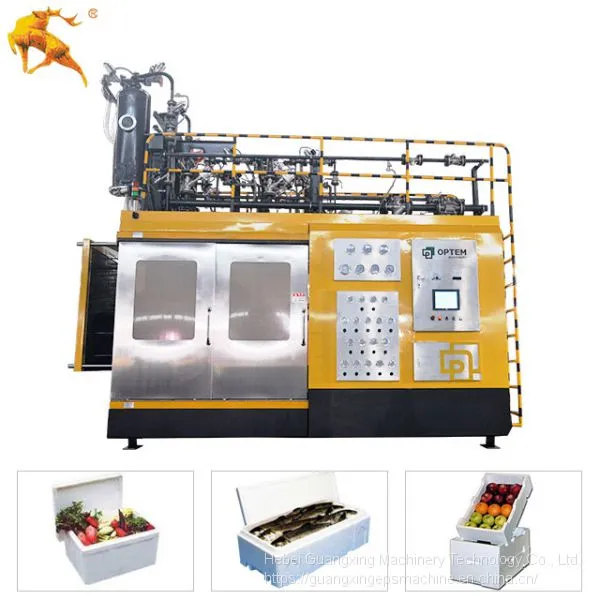

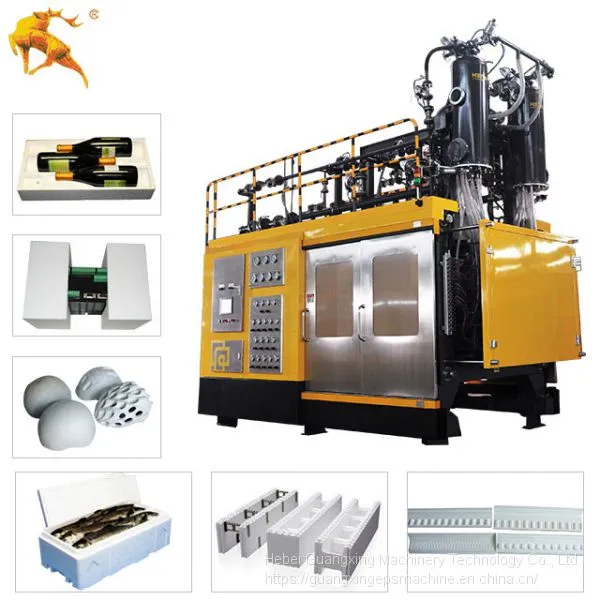

Help CenterEps Shape Moulding Machine
Related Products
-
Styrofoam Shape Moulding MachineUS$ 29000 - 32000MOQ: 1 Piece -
Thermocol Shape Moulding MachineUS$ 29000 - 32000MOQ: 1 Piece
-
Polystyrene Shape Moulding MachineUS$ 29000 - 32000MOQ: 1 Piece
-
Full Automatic EPS Block Molding MachineUS$ 29000 - 32000MOQ: 1 Piece
-
Full Automatic Styrofoam Block Molding MachineUS$ 29000 - 32000MOQ: 1 Piece
With 30 years experience, Guangxing Machinery make the qualifiedeps automatic
vacuum shape molding machine, eps shape moulding machine, thermocol molding
machine, styrofoam moulding machine, eps fish box machine. We provide Turn-key
ervice for EPS production.
Technical Data:
Item |
Unit |
GPZ1412 |
GPZ1714 |
GPZ1816 |
GPZ1915 |
Standard mold size |
MM |
1400x1200 |
1700x1400 |
1800x1600 |
1900x1500 |
Finish product size |
MM |
1200×1000×380 |
1500×1200×380 |
1600x1400x380 |
1700x1300x380 |
Mold opening distance |
MM |
210-1610 |
210-1610 |
210-1610 |
210-1610 |
Steam consumption |
T/T |
8-12 |
8-12 |
8-12 |
8-12 |
Steam inlet |
MM |
DN100 |
DN100 |
DN100 |
DN100 |
Cooling water inlet |
MM |
DN80 |
DN80 |
DN80 |
DN80 |
Discharge hole |
MM |
DN125 |
DN150 |
DN150 |
DN150 |
|
Compressed air consumption |
KG/cycle |
1.4 |
1.6 |
1.8 |
1.8 |
|
Vacuum pump air suction volume |
M3/min |
4.66 |
4.66 |
4.66 |
4.66 |
Installed power |
KW |
17.2 |
17.2 |
20.7 |
20.7 |
Overall dimension |
MM |
4950×2300×5350 |
4950×2650×5550 |
4950X2750X5750 |
4950X2850X5750 |
Machine weight |
T |
7.8 |
8.5 |
9 |
9.5 |
Cycle time |
SEC |
50-110 |
6-120 |
6-130 |
6-130 |
The machine Features:
Durable structure:
The frame adopt steel plate welding with panel thickness more than
δ20 that will be increased strength and the structure will be more stable.
2. Guide sleeve of the main frame adopt bi-parting self-lubricating graphite
3. copper sleeve and special structure design:
4. Adopt high strength aluminum frame sliding door:
5. Self-adaptive moving-mold auxiliary support design:
Advantage of hydraulic system:
1. ecial designed hydraulic station can achieve multi-speed open & close
control . The maximum closing speed can reach 265 mm/s
1.2.With multi-speed mould closing and opening control, machine works
more efficient and stable .
1.3.Mould moving distance is controlled by digital encoder which lead to
the smoothly speed conversion , no pause , no impact.
Multifunctional control system:
1. The PLC system adopt Schneider programmable controller
1.2.Use first grade brand in China and world wide for main spare parts, like
1.chneider , AirTAC, Yoshitake, ESG , etc.
1.3.Control system is designed to meet different production requirements
for various EPS foam packaging products .
Optimized pipe System:
1.Adopt large diameter steam valve control , reduce heating time and energy
saving .
2.Using balance valve or propotional valve to control the main steam pipe,
with high and low pressure dual pressure control, to achieve double-sided
penetration and different keeping ressure Different pressure setting ,
optimize the heating process, reduce steam energy con sumption
3.Large-diameter exhaust valve setting , shorter feeding time and more
effective.
4.Compressed air is controlled by balance valve. The pressure is adjusted
timely, largely reduce electric consumption
