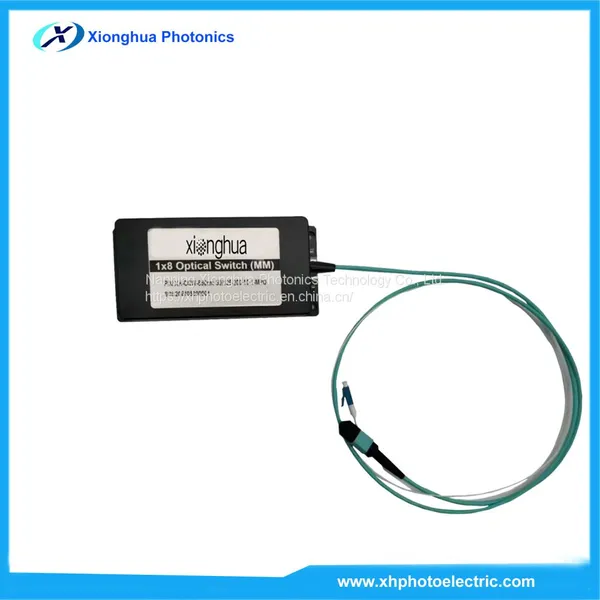

Help CenterMPO Connector 1X8 Mechanical Fiber Optical Switches Osw 900um
Related Products
-
Data Center Application Equipment 24X24 Full Switch Matrix Optical SwitchesUS$ 2500 - 12000MOQ: 1 Piece -
Ome Fiber Switching Equipment 1X64 Fiber Optical Switch Premium SupplierUS$ 1500 - 2000MOQ: 1 Piece
-
1X24 Optical Switch With mm 50/125um Fiber 1550nm WavelengthUS$ 800 - 1500MOQ: 1 Piece
-
1X4 Single Mode Fiber Optic Switch OADM SystemUS$ 300 - 500MOQ: 1 Piece
-
Fiber Switching Equipment 1X128 Fiber Optical Switch Premium SupplieresUS$ 2500 - 3000MOQ: 1 Piece
XH-OSW-1X8 optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications. The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.
Features
Low insertion loss, wide wavelength range
Low channel crosstalk, high stability, high reliability
Proprietary technology, no glue in the optical path
Locking and non-locking control types are available
Performance
Parameter |
Parameter Values |
|
Model |
XH-OSW-1X16 |
|
|
Insertion Loss |
1 |
|
Typ:0.5 dB Max:1.0 dB | ||
Wavelength Range |
532~1064 nm |
1260~1650 nm |
Wavelength Testing |
532/650/780/850/980 nm |
1310/1490/1550/1625 nm |
Return Loss |
MM ≥ 30 SM ≥ 50 |
|
Crosstalk |
MM ≥ 70 SM ≥ 70 |
|
PDL |
≤0.05dB |
|
WDL |
≤0.25 dB |
|
TDL |
≤0.25 dB |
|
Repeatability |
≤0.02 dB |
|
Lifetime |
≥107 |
|
Switching Time |
≤8 ms |
|
Transmission Power |
≤500 mW |
|
Connector |
FC,LC,SC,ST |
|
Control |
TTL |
|
Operating Voltage |
5V |
|
Working Current |
500mA |
|
Operating Temperature |
-20 ºC ~ +70 ºC |
|
Storage Temperature |
-40 ºC ~ +85 ºC |
|
Dimensions
Ordering Information : XH-OSW-1XN-A-B-C-D-E
Channel(N) |
Wavelength(A) |
Fiber Type(B)
|
Fiber Diameter(C)
|
Fiber Length (D) |
Connector(E) |
N:≤16 |
850:850nm 1310:1310nm 1550:1550nm 1310/1550:1310nm/1550nm X:Others |
SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 HI1060:HI1060 X:Others |
25::250um 90:900um 200:200um X:Others |
05:0.5m 10:1.0m 15:1.5m X:Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X:Others |
