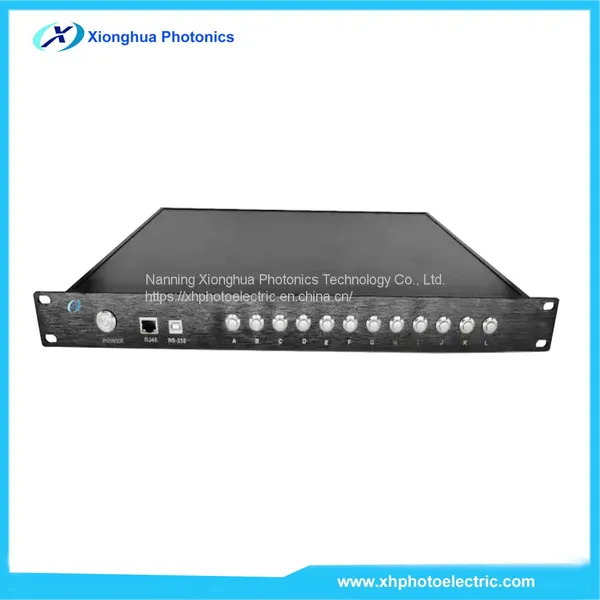

XH-FSW-2X2F-U optical switch is an optical path control device, which has the function of controlling the optical path and converting the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems in optical testing systems for optical fibers, optical devices, networks and field engineering. Optical cable testing ; Optical device adjustment.
Features:
It has the characteristics of small insertion loss and fast switching speed.
The internal circuit of the optical switch is self-testing, and the fault alarm is notified.
LCD display, intuitively display the status of the light path, convenient for users to operate
The optical path switching setting can be performed by the panel keys and commands.
Key operation can be locked by serial port command
Parameter
Parameter |
Parameter Values |
Model |
XH-FSW-2X2F-U |
Wavelength Range |
1260~1650nm |
Insertion Loss |
≤ 1.2 dB |
Repeatability |
≤ 0.02 dB |
Return Loss |
≥ 50 dB |
Crosstalk |
≥ 70 dB |
WDL |
≤ 0.25 dB |
PDL |
≤ 0.05 dB |
Fiber Type |
SM(9/125um) |
connector |
FC\PC |
Monitoring port |
RJ45,RS-232 |
Operating power |
AC:100~240V |
Operating Temperature |
-10 ~ +60ºC |
Operating Temperature |
-40 ºC ~ +85 ºC |
Dimension |
19" 1U(483 X 230 X 45) |
