Mid Certificate 45~60hz AC Kwh 2P Din Rail Single Phase Digital Energy Meter Rated 10(80)A for Charging Piles and Solar Pv Monitor
- T/T L/C Credit Card PayPal
You May Like
-
Acrel din rail energy meter ADL200 with RS485 communication power consumption meter widely used in charging pile
-
Acrel din rail energy meter ADL200 with RS485 communication power consumption meter widely used in charging pile
-
Single Phase Energy Meter ADL200 With rs485 MID Certified
-
Single Phase Bidirectional Electrical Din Rail Energy Meter ADL200 With RS485 Modbus Communication
-
Acrel Din Rail Energy Meter Mid Certified Adl200 With Rs485 Communication Power Consumption Meter Widely Used In Charging Pile
-
Acrel ADL Series Electric KWH Energy Meter Digital AC Meter Single Phase Din Rail Energy Meter ADL200
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | ADL200 | Phase | Single Phase | |
| Output Voltage | AC 220V~265V | Operating Temperature | -25℃~55℃ | |
| Dimensions | 90*36*65mm (L*W*H) | Display Type | Digital Only | |
| Accuracy Class | 1 | Measuring Energy Range | 0-99999.9kwh |
Product Description

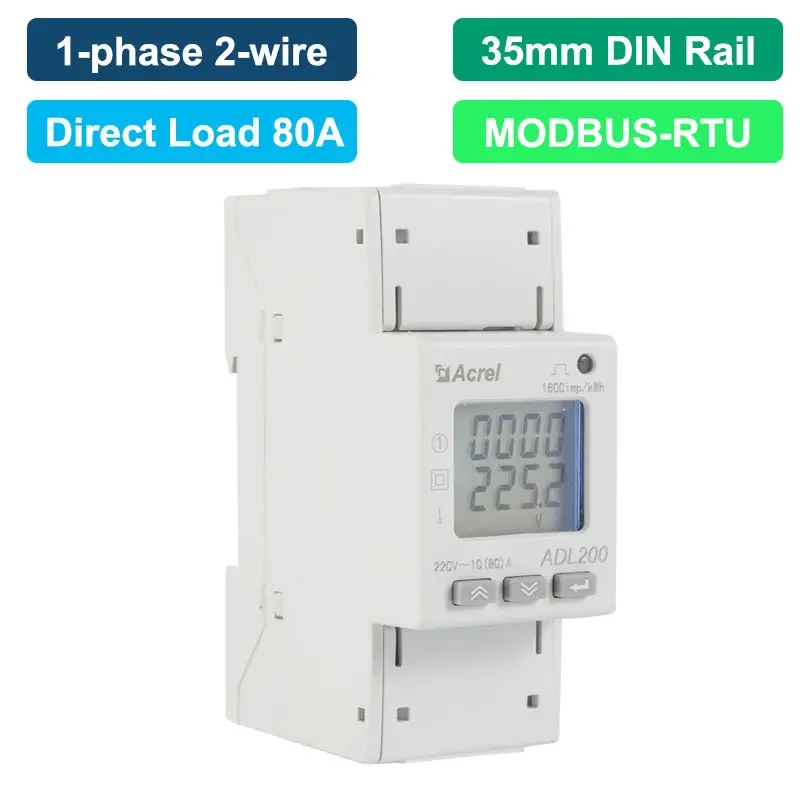

ADL200 MID Single-phase DIN Rail Energy Meter
ADL200 single-phase electronic watt-hour meter is mainly used to measure single-phase active energy in low-voltage networks. It can also measure voltage, current, power, and other electricity. It can also be equipped with an RS485 communication function to facilitate users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize the sub-item electric energy measurement, statistics, and analysis of different areas and different loads. The product meets the requirements of the national standard GB/T17215.321-2008 and the enterprise standard Q31/0114000129C035-2017 "Enterprise Standard for Rail Mounted Electric Energy Meters".

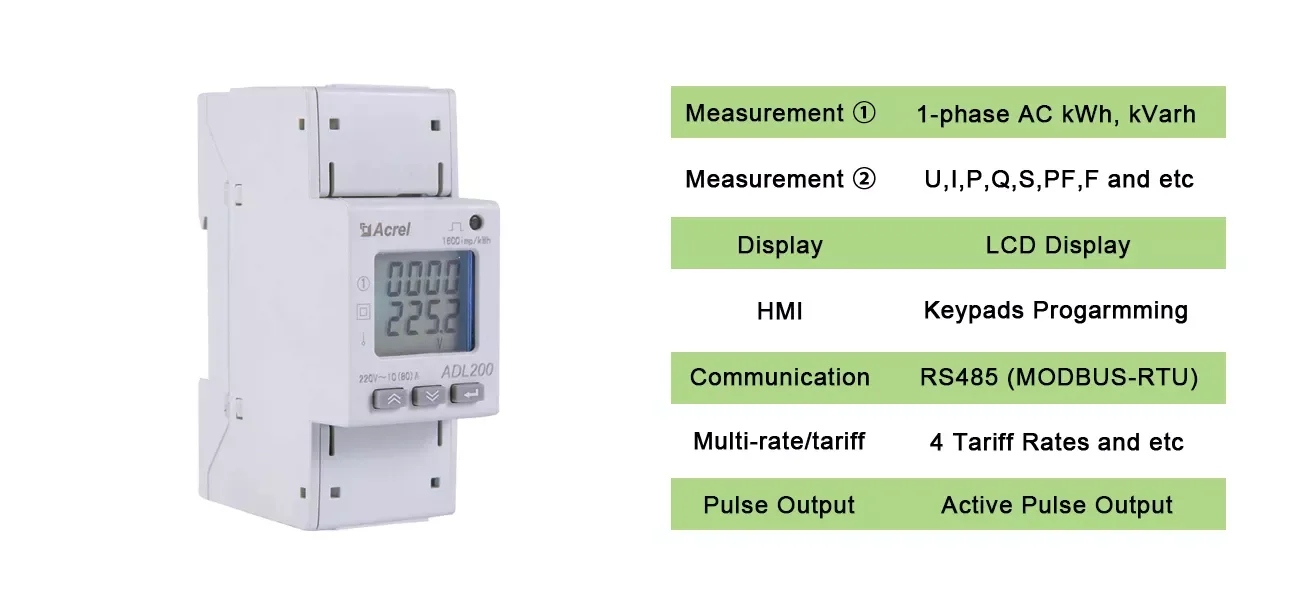

Picture | Specification | Optional |

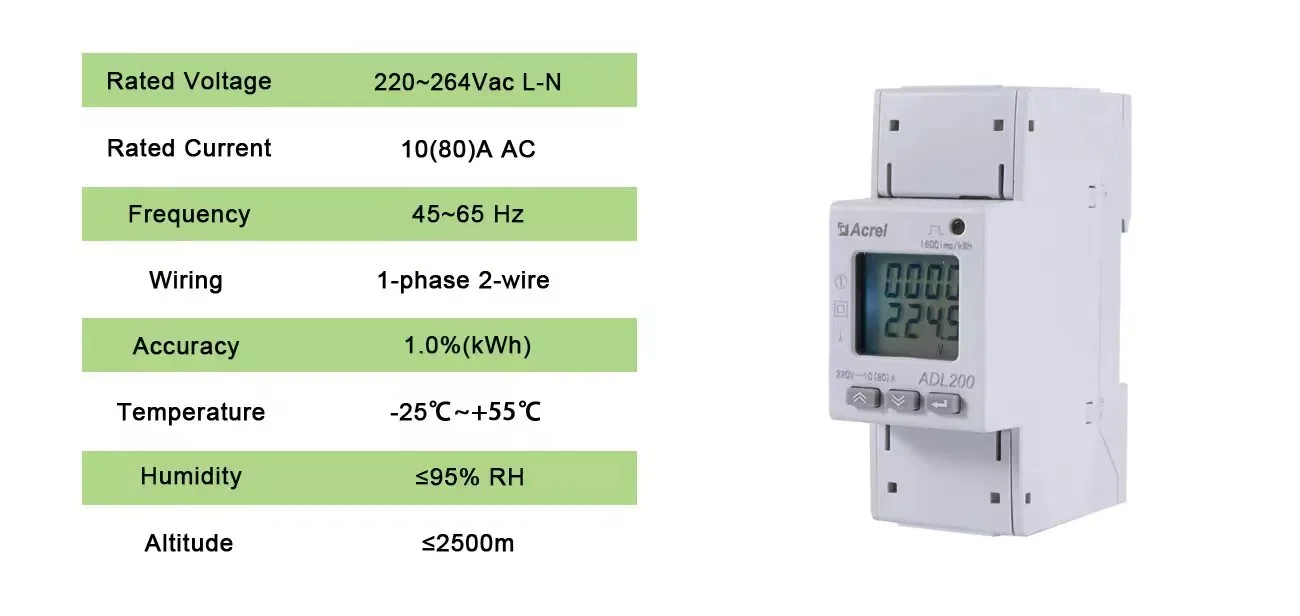

| ● Measurement: 1-phase AC kWh, Active Power, Current, Voltage and etc ● Accuracy: 1.0% (kWh) ● Frequency: 45~65Hz ● Rated Voltage: 220~264Vac (direct connect) ● Rated Current: 10(80)A AC (direct connect) ● Communication: RS485 (MODBUS-RTU) ● Dimension: 90*36*65mm (L*W*H) ● Installation: 35mm DIN Rail ● Standard&Certificate: IEC; CE;CE-MID;EAC | ● Multi-rate/tariff: 4 Tariff Rates and etc |
| Diverse Electricity Parameters Measurement ● U (Voltage) ● I (Current) ● P (Power) ● Q (Reactive power) ● S (Apparent power) ● PF (Power factor) ● kWh (Kilowatt-hours) ● kVarh (Kilovar-hours) |
| Multi-rate/Flexible Tariff ● 4 Time zone ● 4 Tariff rate (Spike, Peak, Flat, Valley) ● 2 Time period list ● 14 Time period by day |
| HMI for Parameters Setting ● Code ● Protocol ● Address ● Baud rate ● Parity ● All Display |
1. Function
Function | Function description | Function provide |
Measurement of kWh | Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage |
■ |
Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency | ■ |
LCD Display | 8 bits section LCD display | ■ |
Key programming | 3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol | ■ |
Pulse output | Active energy pulse output | ■ |
Multi-tariff | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | □F |
Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | ■ |
(■：Standard；□：Optional)
2. Technical parameter
Input voltage | Reference voltage | AC 220V |
Reference frequency | 50Hz | |
Power consumption | <10VA | |
Input current | Basic current | 10A |
Maximum current | 80A | |
Starting current | 4‰Ib | |
Consumption | <4VA | |
Measurement performance | Accuracy of measuring | 1 class |
Range of measuring | 000000.00~99999999kWh | |
Clock accuracy | Error≤0.5s/d | |
Active pulse | Pulse width | 80±20ms |
Pulse constant | 1000imp/kWh | |
Communicati on | Interface | RS485(A+、B-) |
Connection mode | Shielded twisted pair conductors | |
Protocol | MODBUS-RTU | |

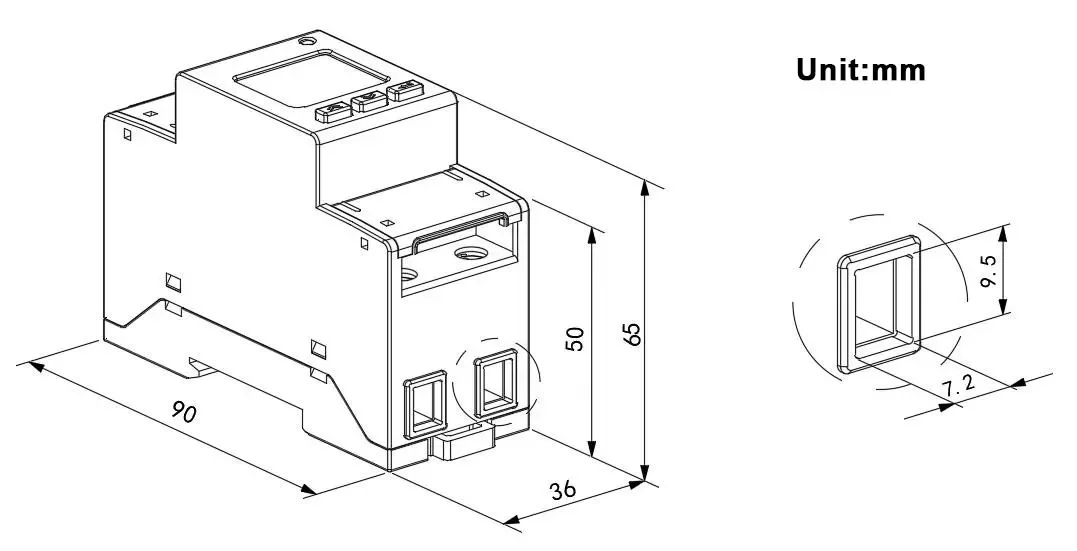

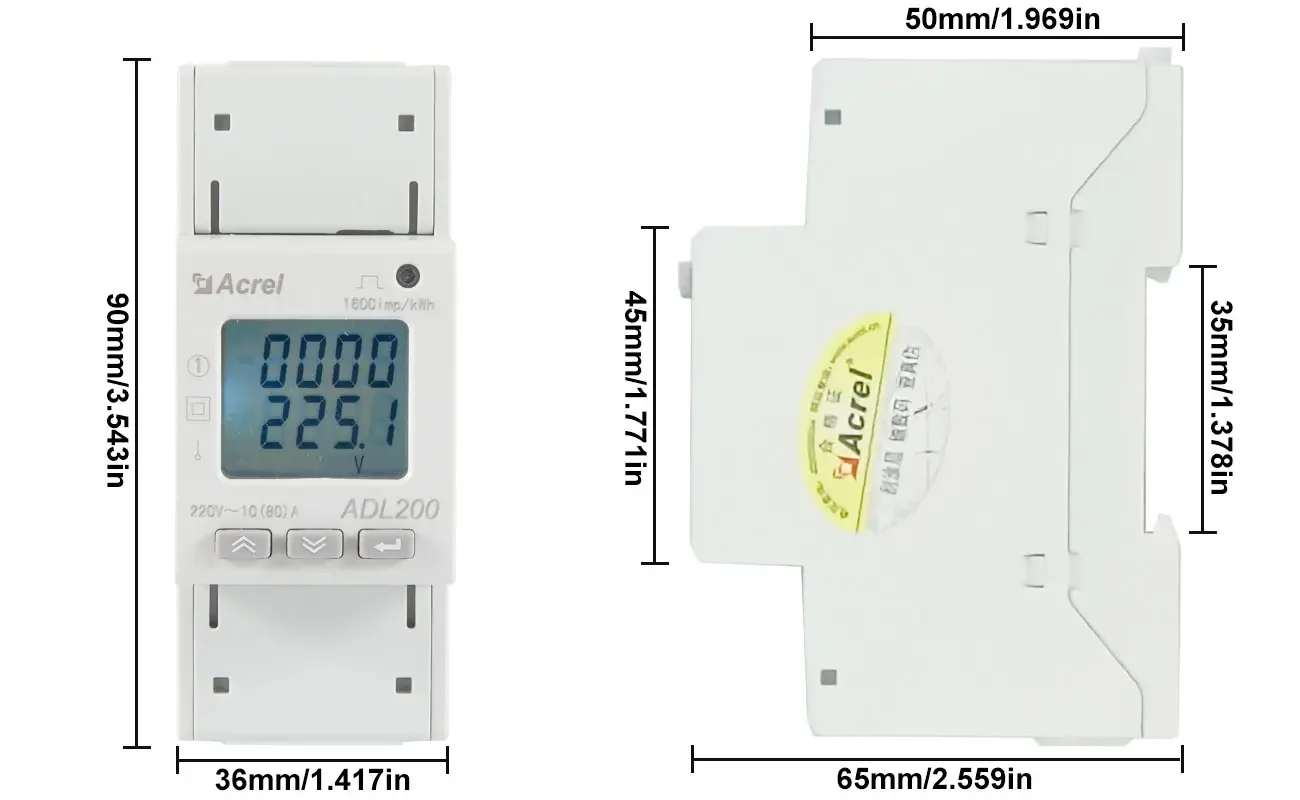

Outline | Length × Width × Height | 90mm×36mm×65mm |
Strong current terminal Torque | <1.8Nm | |
Temperature range | Work temperature | -25℃~55℃ |
Storage Temperature | -40℃~70℃ | |
Relative humidity | ≤95%(No condensation) | |
Altitude | <2000m | |

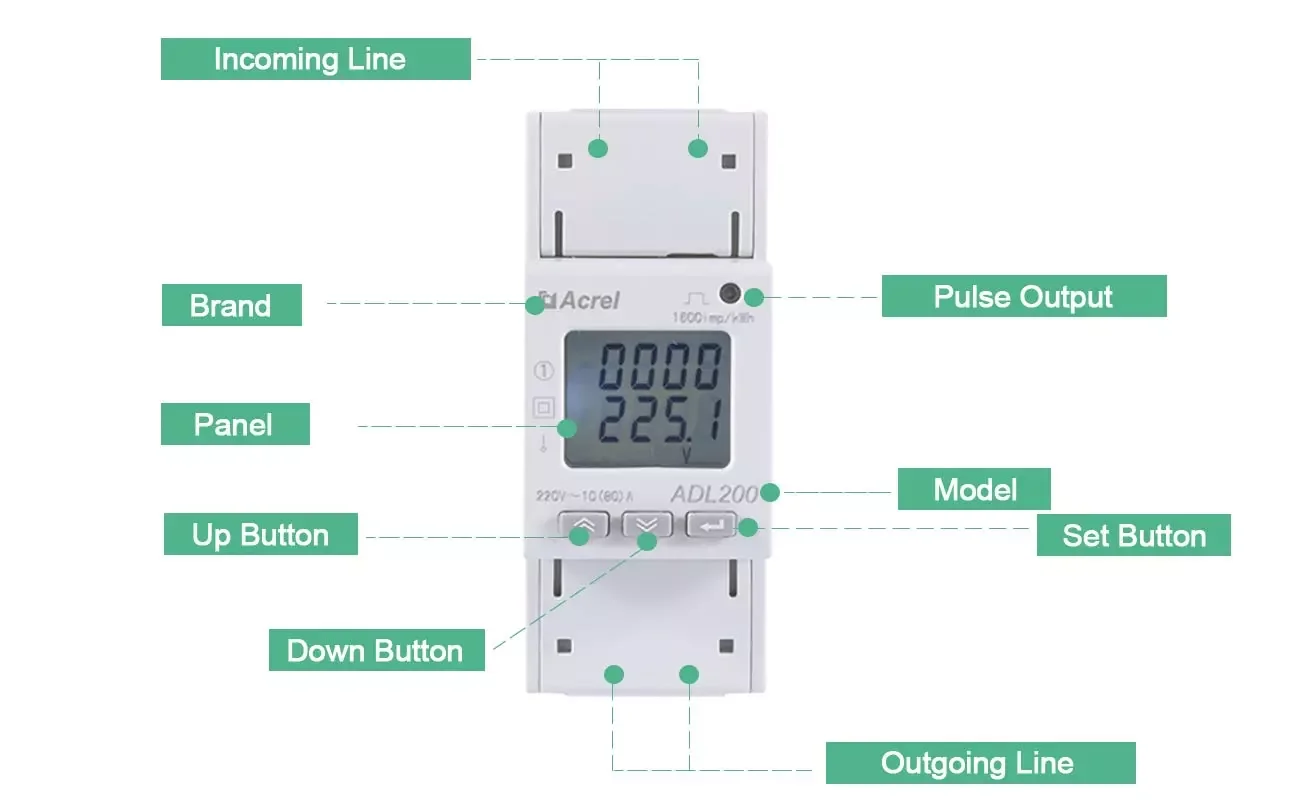

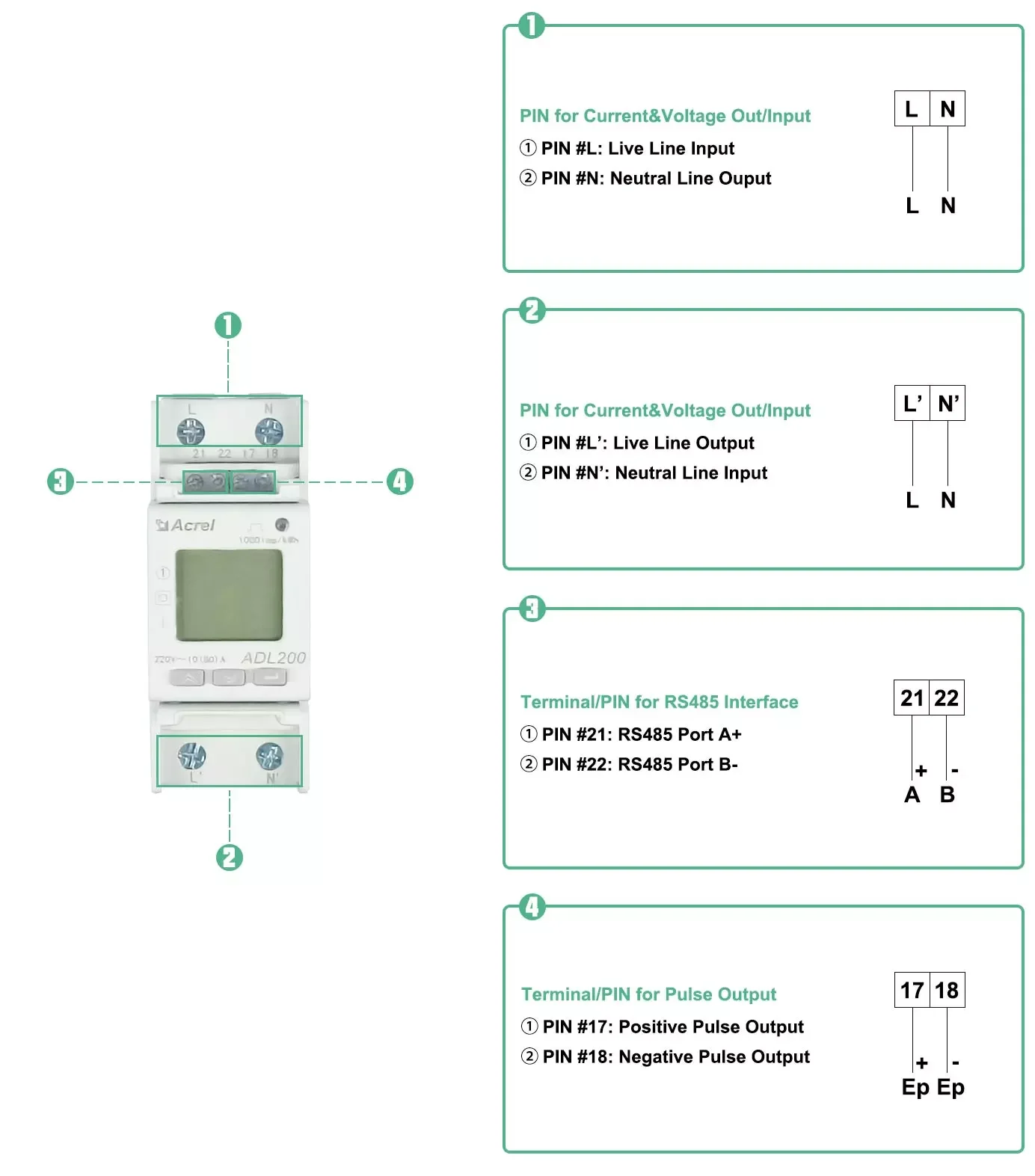

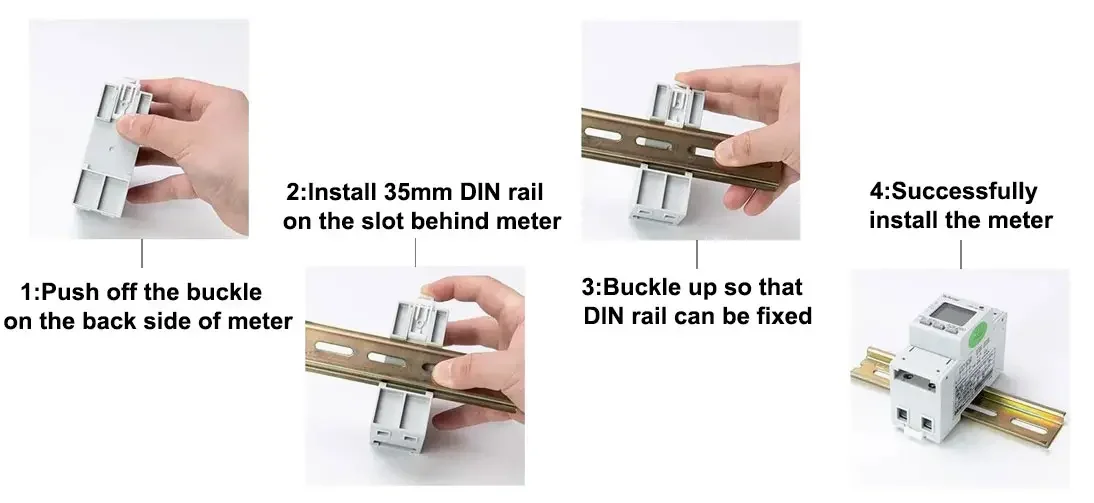

PIN/Terminal Overview of ADL200

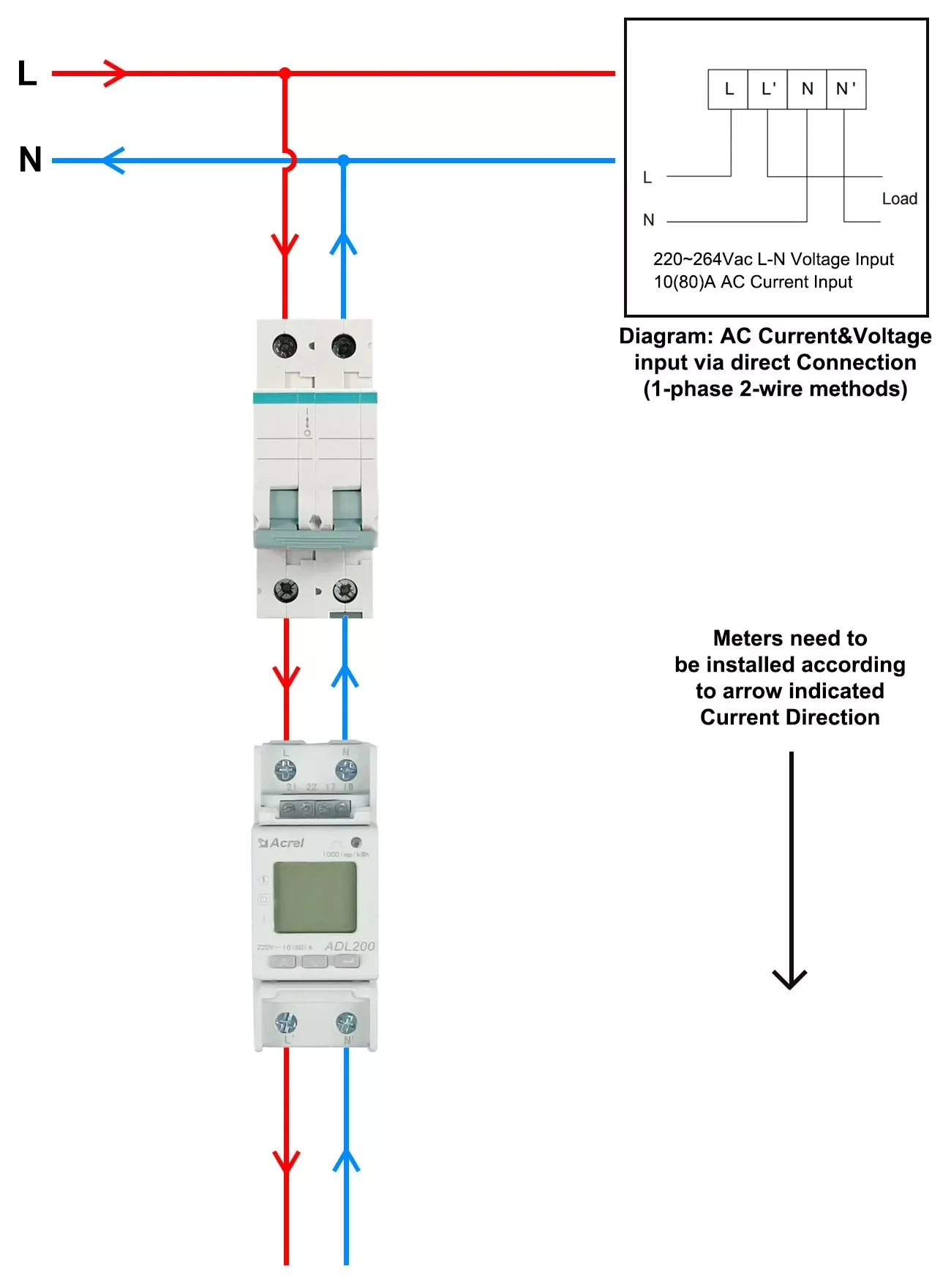

Power Wiring: 1-phase 2-wire via direct connect

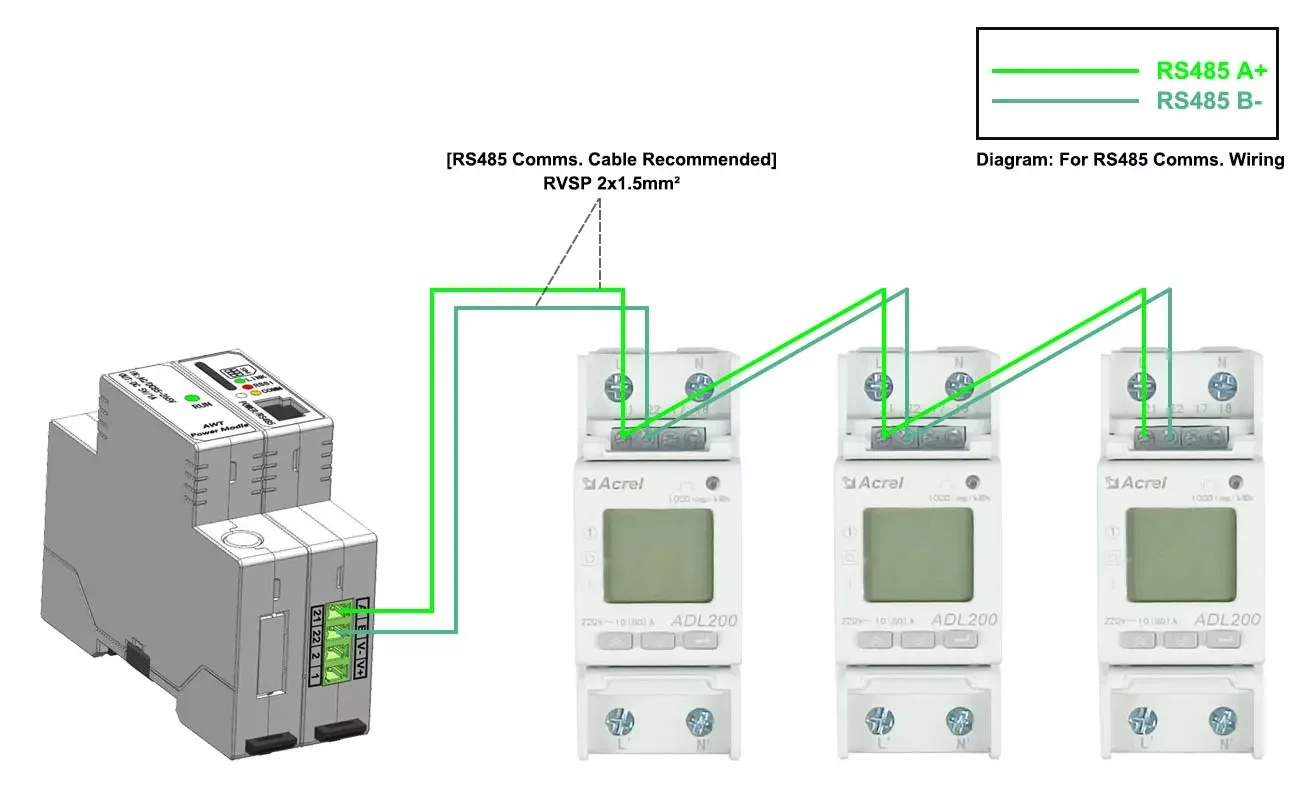

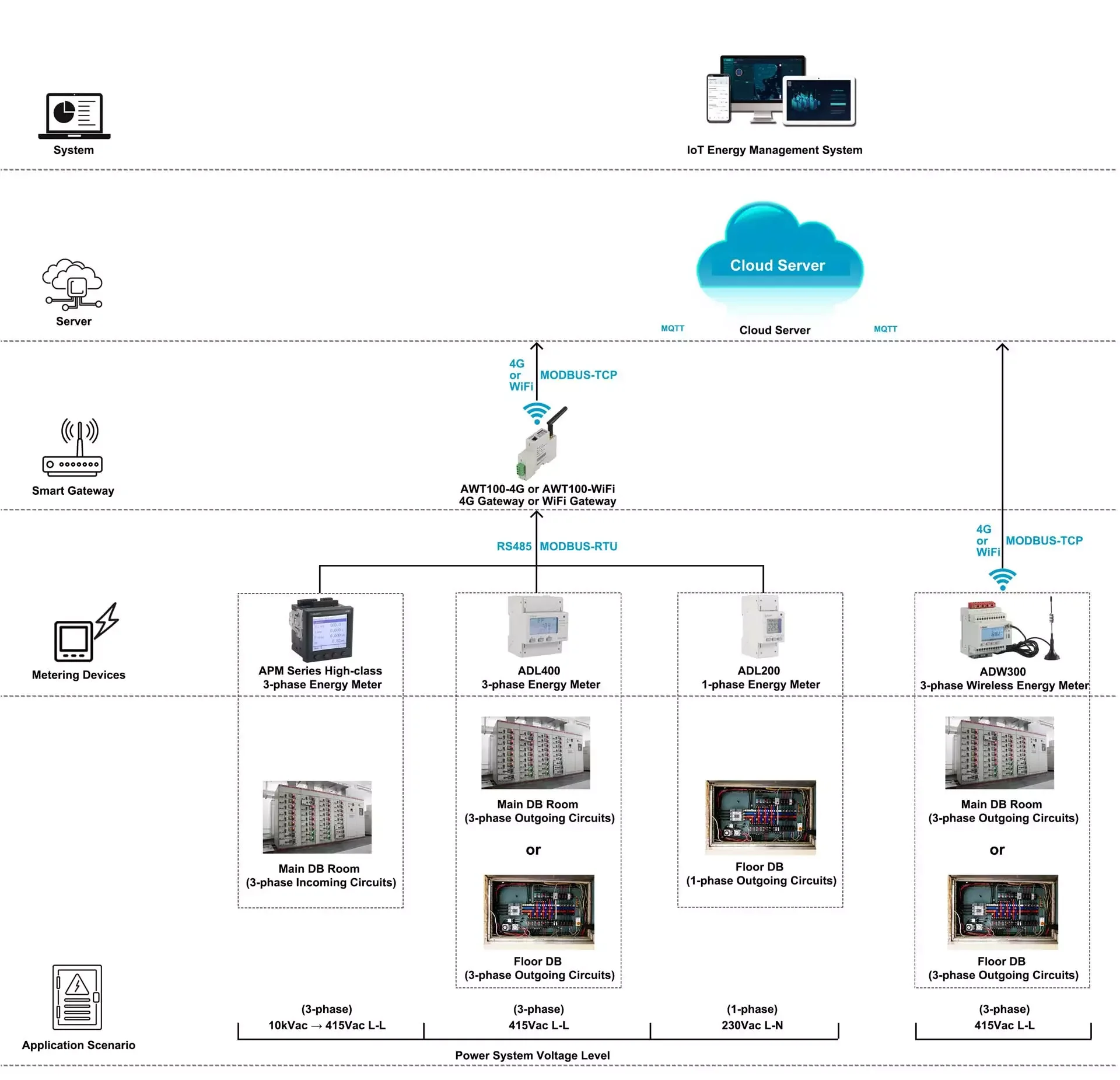

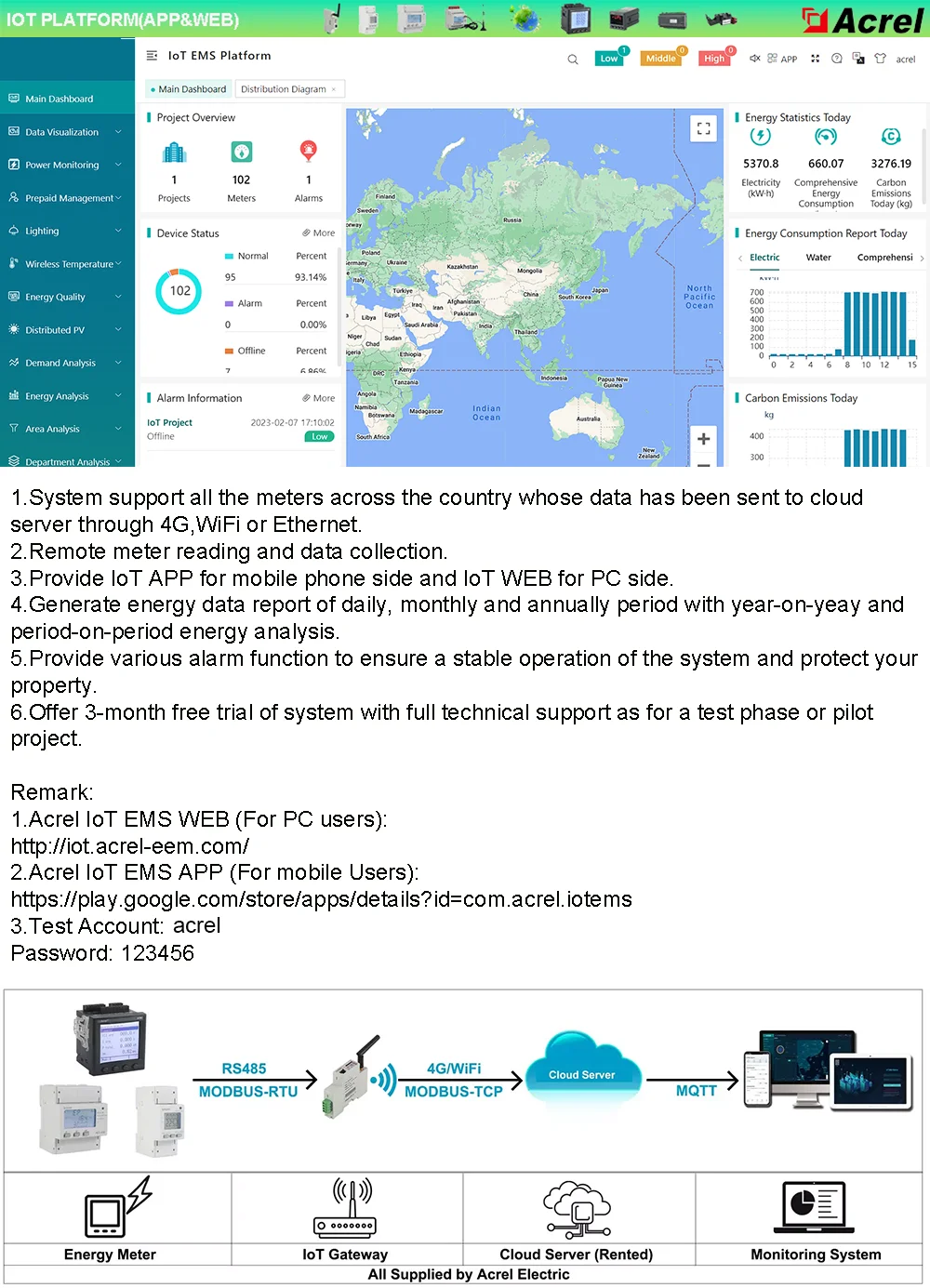

Communication Wiring: RS485 wired Communication with IoT Gateway
