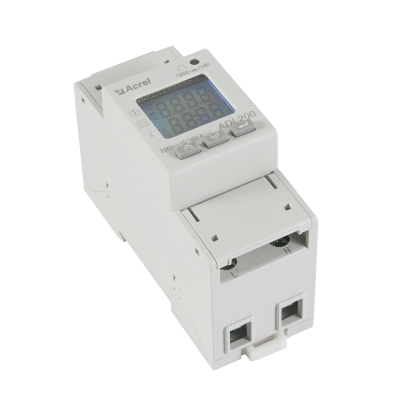

Single Phase Energy Meter ADL200 With Rs485 MID Certified

Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

HMI for Parameters Setting

● Code

● Protocol

● Address

● Baud rate

● Parity

● All Display

  Measurement of kWh

Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage

■

  Measurement of electrical parameters

Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency

■

  LCD Display

8 bits section LCD display

■

  Key programming

3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol

■

  Pulse output

Active energy pulse output

■

  Multi-tariff

Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates

□F

  Communication

Communication interface: RS485, Communication protocol: MODBUS-RTU

■

Reference frequency

50Hz

Power consumption

<10VA

Input current

Basic current

10A

Maximum current

80A

Starting current

4‰Ib

Consumption

<4VA

Measurement performance

Accuracy of measuring

1 class

Range of measuring

000000.00~99999999kWh

Clock accuracy

Error≤0.5s/d

Active pulse

Pulse width

80±20ms

Pulse constant

1000imp/kWh

Communicati on

Interface

RS485(A+、B-)

Connection mode

Shielded twisted pair conductors

Protocol

MODBUS-RTU

Strong current terminal

Torque

<1.8Nm

Storage Temperature

-40℃~70℃

Relative humidity

≤95%(No condensation)

Altitude

<2000m
