Home > Products > Ceramic Valve > Pneumatic double disc valve

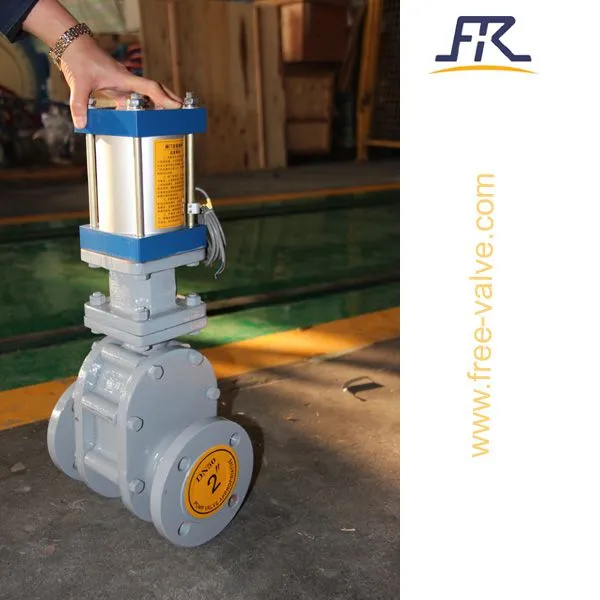

Pneumatic double disc valve
- 200 Set / Sets per Month
- Shanghai Port
- T/T L/C D/P D/A
- 25 days
- Pneumatic Parallel Sliding Ceramic Wear-Resistance discharge Gate Valve FRZ644TC
- Pneumatic Parallel Sliding Tungsten carbide Wear-Resistance discharge Gate Valve FRZ644Y
- Pneumatic High Performance ceramic rotating disc feeding gate valve for fly ash system
- DN150 10k Y Type Slurry Valve
- Three-Way Slurry Valve
- Three-way slurry reversing valve FRJ543Y
Product Details
Brand Name: | FREE-VALVE | Place of Origin: | China | Model Number: | FRZ644Y-10C |
Material: | Casting | Application: | General | Structure: | Gate |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Manual |
Port Size: | DN50-DN300 | Media: | Other, Abrasive medium | Temperature of Media: | Medium Temperature |
Packaging Details
Ply-Wooden Box
Product Description
Pneumatic metal seated double disc gate valve opening test
FREE-VALVE brand Pneumatic M Double Disc Valve is mainly used in feeding and dumping the dry powder and the transport pipeline, which not only adopt toughening ceramic as shut off and wear out resistance material, but also design construction of pressure self-sealing and valve disc auto-rotate, so as to the sealing surface within the dry powder get more wear resistance in process of opening and closing frequently, thereby, which guarantee the high requirements of sealing performance of this valve and long working time.
Features:
1. Sealing pair is made of hard alloy,which have perfect performance to resist wear and flushing.
2. Two-side sealing can realized due to double disc structure of the pneumatic double disc gate valve.
3. It inserts spring between double valve disks to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
Technical Parameters
1) Size Range: NPS2~NPS12,DN50~DN300
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~350℃
4) Connection Type: Flange
5) Sealing material: Hard Alloy
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Flange standards:ASME B16.5,GB/T9113
9)Operating Type: Pneumatic
Applications

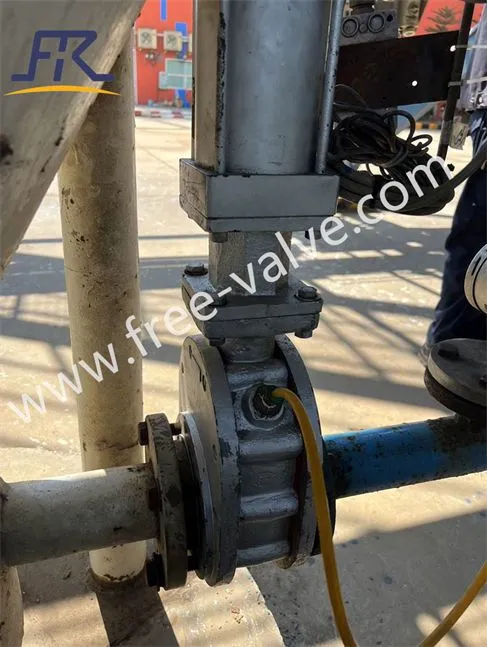

1. Power plant ash handling system.
2. Cement industry-dry powder conveying and dumping.
3. Dressing works-dry powder materials’ selection and conveying.
Price:500-5000USD/set
Price terms:FOB,CIF,CFR,FCA
Payment terms:TT,LC
Delivery time:30days
Model:FRZ644TC
Zhengzhou Free Fluid Control Technology Co.,Ltd
Wechat ID:Free_Valve
Whats App:+8613460250295
Email&Skype :marketing@free-valve.com
Company Profile
ZHENGZHOU FREE FLUID CONTROL TECHNOLOTY CO.,LTD specialized in manufacturing all kinds of high, medium and low pressure fluid control complete sets of flow control equipment, have over than 30 years industrial valve working experience .
The company has a young and energetic, the courage to open up the sales team, to take the advanced mode of operation, all-round attack, built a domestic and two international sales network, to establish and implement a marketing strategy "for customers to create value-added". FREE VALVE sales team to use the call center and e-commerce system to build a brand new marketing system, after-sales service also goes beyond the simple maintenance, warranty concept, to provide technical support to meet the user saving energy has become the core of the idea of selling.
The Board of Directors introduced a team of professional managers, and standardized management in accordance with the requirements of modern enterprise system. The company invested over 300 million, the establishment of a comprehensive area of municipal technology centers and science and technology personnel, and create a good research and living conditions for the introduction of high-level personnel, to increase the talent introduction and employee skills training efforts.
Today, in the Central Plains economic rise on the journey, FREE VALVE yesterday's success as into the starting line of the listed companies; fight dare to win FREE VALVE people is the full cast century corporate brand, in order to demonstrate the charm of oriental culture, and write FREE history a new chapter in triumph!
