Acrel Switchgear Smart 24 Channels Temperature Monitoring Device Controller ARTM-24 For Distribution Box
- T/T L/C Credit Card PayPal
You May Like
-
Acrel DJSF1352-Rn DO/DI Function 2 Channels DC Power Consumption Meter Rs485 Modbus-RTU for Twin Ev Charger&Battery Monitoring
-
DJSF1352-RN DC Dual-circuits Monitoring DIN Rail Energy Meter for Solar RTU With App Smart
-
UL DJSF1352-Rn 75mV Shunt Or 0-5V Hall Senor Connect 2 Channels DC Kwh Monitoring Meter For Charging Piles And Solar Pv Monitor
-
Acrel DJSF1352-RN Dc Measurement Energy Metering Smart Kwh Meter Iot Electricity Sensor
-
IEC Standard IT Medical Intelligent Insulation Monitoring Instrument For Hospital Insulation Monitoring
-
AMC96L-E4/KC Multifunction AC Power Meter For Current Voltage Power Factor Electric Energy Parameters Power Grid Separately
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | ARTM-24 | Temperature Range | -20℃~55℃ | |
| Usage | Industrial | Accuracy | ±1℃ |
Product Description

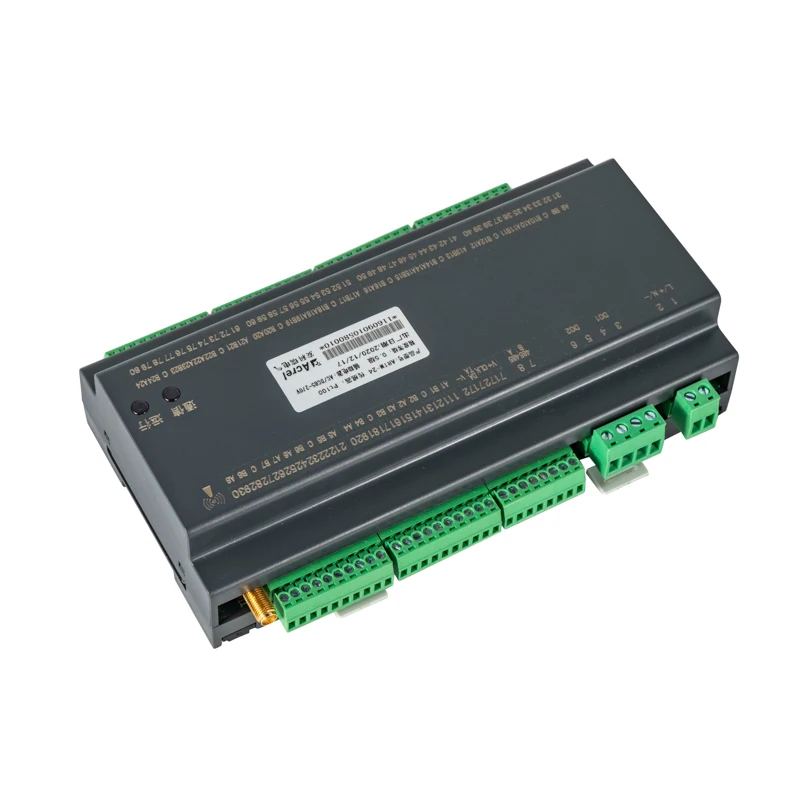

24 loops Multi-Channel Temperature Controller ARTM-24

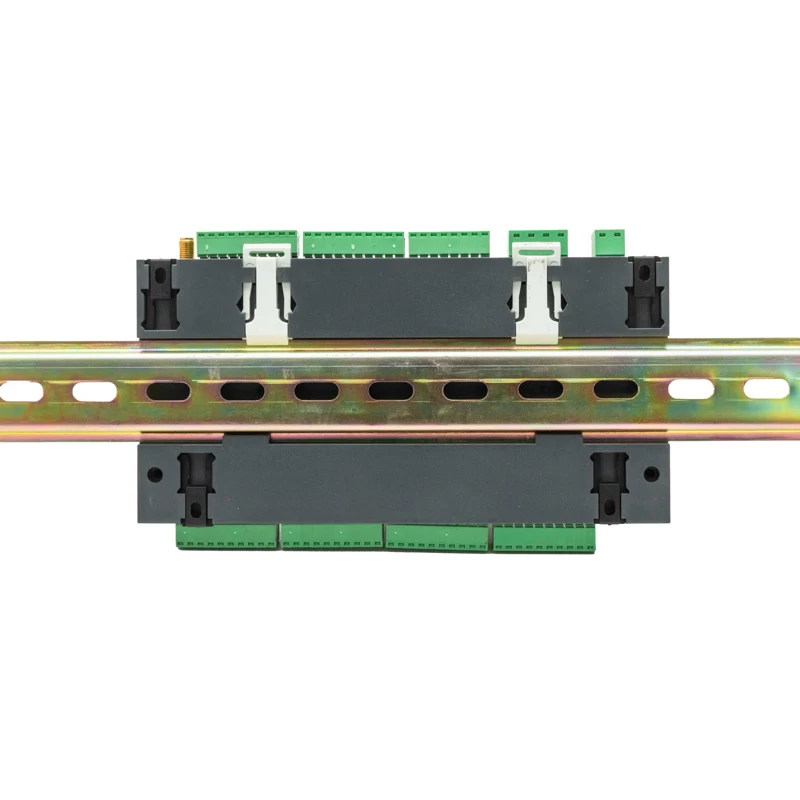

| ● 24 NTC，PT100 or PT1000 measurement; ● 35mm Din Rail Installation ● Temperature Accuracy:± 1 ● Output capacity:AC250V/5A,DC30V/5A |
The ARTM-24 temperature detector can be connected to NTC, PT100/PT1000, and thermocouple sensors, and is mainly used for temperature measurement at low-voltage electrical nodes, transformer windings, motor windings, and other places.
Item | Index | |
ARTM-24 | ||
channel | 24 | |
Input signal | NTC:R25=10.00kΩ;B25/50=3380K; NTC:R25=50.00kΩ;B25/50=4150K; NTC:R25=100.00kΩ;B25/50=3950K; PT100/PT1000:Three-wire system Thermocouples support K, T, J, E, and N types. | |
Measuring range | NTC:-40℃~140℃; PT100: the maximum support is - 200 ℃~850 ℃, and the actual range depends on PT100; PT1000: the maximum support is - 200 ℃~850 ℃, and the actual range depends on PT1000; Thermocouple: the maximum support is - 200 ℃~1372 ℃, and the actual range depends on the thermocouple model. | |
Accuracy class (standard signal) | NTC:±1℃; PT100/PT1000:-200℃~200℃,±1℃;+200℃~850℃,±1%; Thermocouple:1% . | |
Auxiliary power supply | Voltage range | AC85~265V/DC100-350V,DC12~30V |
Power consumption | <=2W | |
Alarm output | channel | 2 sets of normally open |
volume | AC250V/5A,DC30V/5A | |
Temperature and humidity input | channel | 1(optional) |
Environment temperature | ±1℃ | |
environment humidity | ±3% | |
communication | protocol | MODBUS-RTU |
Port | RS485 | |
Baud rate | 2400,4800,9600,19200 | |
Environmental requirements | working temperature | -20℃~55℃ |
Working humidity | <=95% | |
|
PT100 Wiring diagram |
|
NTC Wiring diagram |
|
Thermocouple Wiring diagram |
|
|
|
|
