ptfe mesh teflonE in fiberglass ptfe conveyor belts for tunnel dryer machine
- 10000 Set / Sets per Month
- guangzhou
- T/T L/C
- 7 days
- aluminium profile welding screen printing aluminum Frame
- Stretcher guide rail aluminium profile
- squeegee clamp kit AL extruded profile fabricated
- 3KW 410nm 350mm UV Gallium GA Lamp for screen printing Plate exposure
- oval ink scraping Zirconia ring for pad printing machine
- aluminum Ink Cup for tampoprint Pad Printer
Product Details
Brand Name: | tamprinter | Model Number: | ID38OD100L300 |
Product Description
Common specification
0.73*4.96m
0.98*7.96m
1.18*19.95m
Thickness(mm) | Weight(g/㎡) | Maxiumn Operation Temperature(℃) | Width(mm) | Tensile Strength(N/cm) |
0.08 | 150 | -70~280 / 460 | 1250 | 430/330 |
0.13 | 275 | -70~280 / 460 | 1250 | 560/345 |
0.25 | 520 | -70~280 / 460 | 1250 | 650/420 |
0.35 | 710 | -70~280 / 460 | 4100 | 810/450 |
0.4 | 820 | -70~280 / 460 | 4100 | 950/500 |
0.45 | 915 | -70~280 / 460 | 4100 | 980/500 |
0.55 | 1030 | -70~280 / 460 | 4100 | 1000/500 |
0.65 | 1120 | -70~280 / 460 | 4100 | 1080/580 |
0.85 | 1240 | -70~280 / 460 | 4100 | 1100/800 |
1 | 1800 | -70~280 / 460 | 4100 | 1500/1150 |

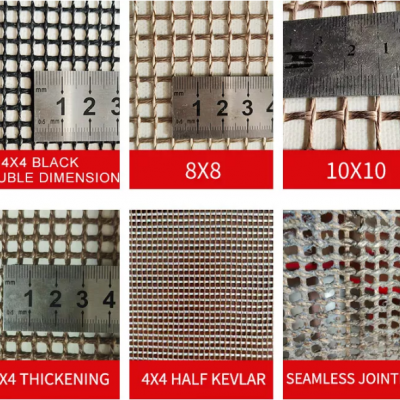

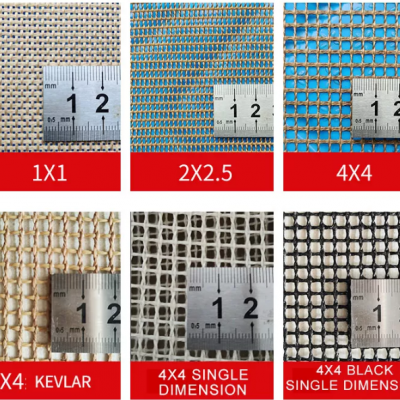

Teflon conveyor belt is also known as infrared tunnel furnace conveyor belt, uv machine conveyor belt, Teflon conveyor belt, PTFE conveyor belt and high temperature resistant conveyor belt, Teflon conveyor belt is divided into Teflon mesh conveyor belt and Teflon high temperature Two kinds of cloth, both of which are based on glass fiber cloth coated with Teflon resin to make Teflon (PTFE) conveyor belt base cloth; among them, the specification of Teflon mesh conveyor belt is defined by the mesh size , there are mainly 1×1MM, 2×2.5MM, 4×4MM, 10×10MM and other meshes, and according to the warp and weft, there are single-weft and double-weft Teflon grid conveyor belts; Teflon high-temperature cloth is The specifications are distinguished by thickness, and the thinnest can reach 0.08MM.
Features
Various Teflon conveyor belts
1. Used for low temperature -70 ℃, high temperature 260 ℃, with weather resistance, anti-aging. After practical application, if placed at 250°C for 200 days continuously, not only the strength will not decrease, but also the weight will not decrease; at 350°C for 120 hours, the weight will only decrease by about 0.6%; at -180°C It can maintain the original softness under ultra-low temperature conditions.
2. Non-adhesiveness of Teflon conveyor belt: it is not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
3. Resistant to chemical corrosion, resistant to strong acid, strong alkali, aqua regia and various organic solvents.
4. Teflon conveyor belt has good dimensional stability (elongation coefficient less than 5‰) and high strength. Has good mechanical properties.
5. Anti-bending fatigue, can be used for smaller wheel diameters.
6. Drug resistance, non-toxic. Resistant to almost all potion items.
7. Fire and flame retardant.
8. Air permeability --- the air permeability of the conveyor belt, reducing the consumption of heat source and improving the drying efficiency
Application range
Teflon food high temperature cloth conveyor belt
1. Anti-adhesive lining, gasket, cloth and conveyor belt; according to different thickness, it is used for conveyor belts, adhesive tapes, sealing tapes, etc. of various drying machines.
2. Welding cloth for welding and sealing of plastic products; plastic sheet, film, and heat-sealing sheet lining tape.
3. High electrical insulation: electrical insulation tape base, spacers, gaskets, and linings. High frequency copper clad laminate.
4. Heat-resistant cladding layer; laminated base material, heat insulation body wrapping.
5. Microwave gaskets, oven sheets, food drying;
6. Adhesive belt, transfer printing ironing tablecloth, carpet adhesive curing conveyor belt, rubber vulcanizing conveyor belt, abrasive sheet curing release cloth, etc.
7. Base cloth for pressure sensitive tape.
8. Architectural membrane materials: canopies for various sports venues, station pavilions, parasols, landscape canopies, etc.
9. Used for anti-corrosion cladding of various petrochemical pipelines, environmental desulfurization of waste gas from power plants, etc.
10. Flexible compensator, friction material, grinding wheel slice.
11. After special processing, "anti-static cloth" can be made.

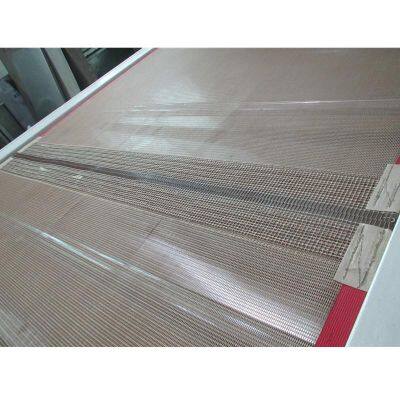

Teflon mesh conveyor belt has the characteristics of mesh and easy ventilation, so it is widely used in textile printing and dyeing, printing drying belt, screen printing, ultraviolet drying, UV series, light curing machine, offset printing machine, loose drying Machines, non-woven fabric dryers, high-frequency dryers, guide belts of food baking machines, temperature-controlled drying rooms, rapid drying of flux-based inks, and drying of general moisture-containing items.
Teflon high-temperature cloth has the characteristics of high temperature resistance, small friction coefficient of surface machine, and good insulation. It is widely used in bonding machines, clothing printing and dyeing and other machinery.
connector
Teflon mesh conveyor belt joints are mainly soft joints (bull nose joints) and steel buckle joints
There are many ways of Teflon high temperature cloth joints, such as butt joint, lap joint,
Soft joints, thin lap joints, steel buckle joints, etc.
Binding style
Teflon turning film edging, Kevlar edging, Teflon cloth edging, etc.
Mesh Belt Supplement: Due to the difference in equipment width, it is recommended to use double weft for extra-wide mesh belts.
life extension method
First: the transmission wheel at the transition of the Teflon conveyor belt. Practice has proved that when starting, the belt pulley causes excessive local force on the conveyor belt, resulting in tearing of the conveyor belt. The mesh belt deviation correction device can completely solve this problem.
Second: Improve the impact force of the industrial conveyor belt. Longer, larger, and heavier products are easy to get stuck between other parts and the conveyor belt during the conveying process, and the probability of foreign matter tearing the conveyor belt is high. Eliminates belt damage caused by this. For the hopper with a large drop, a buffer baffle is installed inside to prevent the material from directly impacting the conveyor belt..
