YLBZ40-200 HENGYANG HEAVY INDUSTRY HYDRAULIC WHEEL SIDE BRAKE HYDRAULIC PORT TERMINAL AND OTHER INDUSTRIES

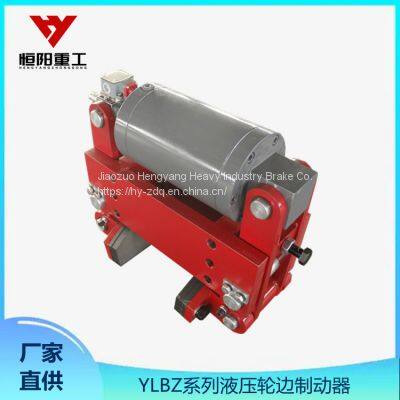

YLBZ Series Hydraulic Wheel Side Brake

Applications:

YLBZ series hydraulic wheelside brake is mainly used for outdoor large and medium-sized cranes and harbour loading and unloading machinery to prevent wind under working condition and auxiliary wind braking under non-working condition. The wheelside brake is generally used only on the passive wheel and performs direct braking, which can effectively prevent the wheel being braked from rolling displacement under the action of wind. The use of wheel brake for wind braking is currently a new and more effective wind protection measures, is being widely used. If the wind brake is used on the high-speed axle of the driving wheel at the same time, the effect will be better and more economical.

Conform to the standard:

The technical requirements of caliper disc brake conform to JB/T10917-2008 standard.

Main features:

▲ Normally closed design, safe and reliable; disc spring applied brake, hydraulic station centralised drive release;　

▲ Limit switch is set for interlock protection;　　　

▲ High performance non-asbestos friction liner, high and stable coefficient of friction, insensitive to water and salt spray (seawater);

▲ Anti-corrosion type design, all fasteners and pins are made of stainless steel (or QPQ surface treatment), good anti-corrosion;　　

▲ Reasonable sealing structure design and imported name brand seals. Good effect and long life.　　

▲ Flexible installation position, easy to use, adjust and maintain.

Working conditions.

◆ Ambient temperature: -20°C ~ + 50°C

◆ Relative humidity: ≤90%.

◆ Optional hydraulic station (see hydraulic station catalogue for details)

◆ If there are special requirements, please consult with us when ordering.
