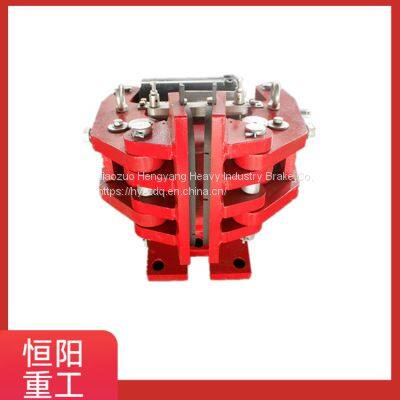

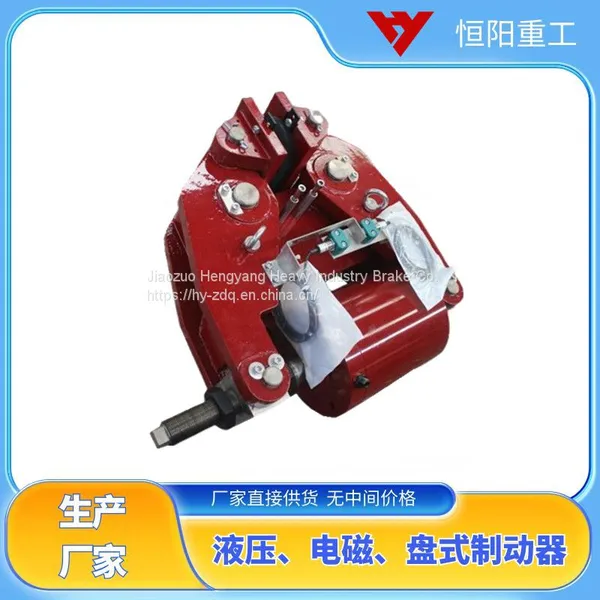

Help CenterSBD120-D Disc Brake Hengyang Heavy Industry With Hydraulic Actuated Release Device
Related Products
-
Hengyang Heavy Industry SVD240-D Hydraulic Safety Brake With Fault IndicationCNY 1500 - 2900MOQ: 5 Units -
Hengyang Heavy Industry SBD100-A Hydraulic Safety Brake Casting CraneCNY 1500 - 2900MOQ: 5 Units
-
Hengyang Heavy Industry SBD125-A Hydraulic Safety Emergency Brake Short Closing TimeCNY 1500 - 2900MOQ: 5 Units
-
Hengyang Heavy Industry SBD160-A Hydraulic Safety Brake is Suitable for Belt Conveyor Etc.CNY 1500 - 2900MOQ: 5 Units
-
Hengyang Heavy Industry SBD200-A Hydraulic Safety Brake With Special Disc Spring Applied ForceCNY 1500 - 2900MOQ: 5 Units
Figure 2 shows a schematic diagram of the structure of a floating caliper disc brake. The caliper bracket 3 is fixed on the steering knuckle, and the caliper body 1 and bracket 3 can slide axially along the guide pin 2. When braking, the piston 8 under the action of hydraulic pressure p1, the movable brake block 6 (with friction block wear alarm device) pushed to the brake disc 4. At the same time, the reaction force p2 acting on the brake caliper body 1 pushes the brake caliper body to move to the right along the guiding pin 2, so that the fixed brake block 5 fixed on the brake caliper body pressed against the brake disc. As a result, the friction blocks on both sides of the brake disc clamp the brake disc under the action of p1 and p2, which generates a braking torque on the brake disc in the direction opposite to the direction of movement, thus prompting the vehicle to brake.
Contrary to the fixed-caliper disc brake, the single-side hydraulic cylinder structure of the floating-caliper disc brake does not require an oil passage across the brake disc, so not only are the axial and radial dimensions smaller, and it is possible to arrange it closer to the wheel hub, but there is also less chance of heat vaporisation of the braking fluid.
In addition, the floating caliper disc brake does not need to be equipped with a parking caliper when it is used as both a service and parking brake, but only needs to be equipped with a parking caliper.
