Home > Products > extruding production line > Refrigerator Door Gasket Extruding Machine

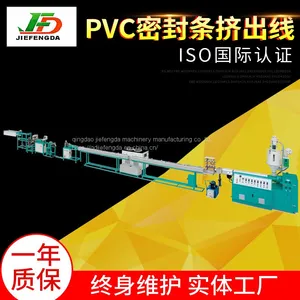

Refrigerator Door Gasket Extruding Machine
- qingdao
- T/T L/C PayPal
- 30 days
You May Like
Product Details
| Brand Name | jiefengda | Place of Origin | China | |
| Model Number | Extruding-1 | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Dimension(L*W*H) | L:25000MM | |
| Voltage | 380V 50HZ | Application | Granules | |
| Condition | New | Power(W) | 66KW | |
| Plastic Processed | PVC | Screw Design | Single-screw |
Product Description
Profile:
The electical control system of this production line is controlled by OMRON PLC and touch panel.Equipped with intelligent algorithm,it sets the parameter through touch panel to realize the punching ,automatic45 degree corner cutting at both ends,automatic feeding by mechnical arm while producing door seal.the entire production line only needs one staff to reach the qualified product ,with easy operation,precise size and high production efficiency .
Technical process
PVC aggregate,secondary crushing aggregate->mixing and drying->heating ,extruding,molding->cooling,shaping ->traction->automatic punching->automatic45 degree corner cutting at both ends->automatic feeding->taking away the finished door seal manually
Device elements :
Plastics crushed 2.Plastics blender mixer 3.Automatic drying and feeding machine 4.Plastics extruder 5.Automatic hydraulic screen exchanger oling and shaping cistern 7.water cooler 8.Traction machine9.Automatic punching and cutting unit 10.Automatic reclaimer
| Length of production line | 25000mm | |
| Working voltage | 380v 50HZ | |
| Rated current | 75A | |
| General power of the system | 66KW | |
| Pressure of air supply | 0.5-0.6MPa | |
| Production rate | 10-15m/h | |
| Speed of traction machine | 990m/h |
