Briquetting Machine for Coal/briquetting Machine for Scrap
US$ 3000 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
1 year
After-sales Service:
Overseas Engineer Service Available
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
Briquette Maker Homebase/briquette Press Homemade/briquetting Machine Hydraulic PressUS$ 3000 - 5000MOQ: 1 Set -
Briquette Machine Made in China/briquette Machine Model/briquette Machine MakersUS$ 3000 - 5000MOQ: 1 Set
-
Briquetting Machine Resale/roller Briquette Machine/briquette Roller PressUS$ 3500 - 5000MOQ: 1 Set
-
Biocoal Briquette Machine/small Briquette Machine Cost/briquette Maker IrelandUS$ 3000 - 5000MOQ: 1 Set
-
Briquetter/charcoal Making Machine/machine PressUS$ 3000 - 5000MOQ: 1 Set
Warranty
1 year
After-sales Service
Overseas Engineer Service Available
Condition
New
Motor Type
AC Motor
Pressing Mode
Twin-roller
Product Shape
Oval Shape
Transport Package
Plywood Package
Specification
XM290
Trademark
Shisheng Machinery
Origin
Henan

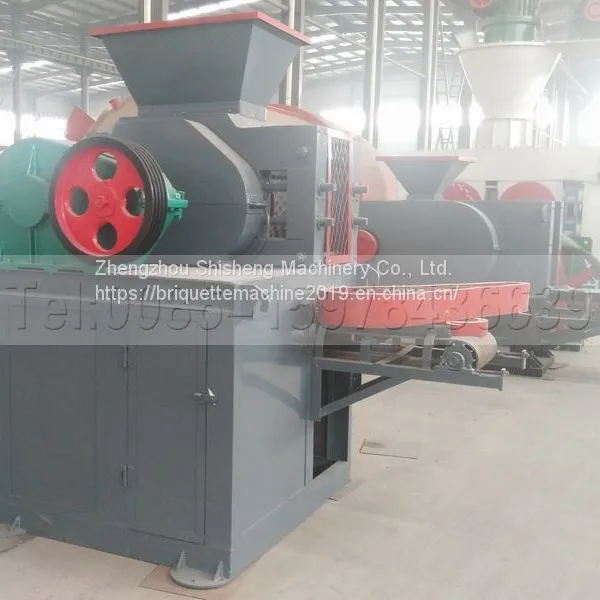

Briquetting Machine for Coal/Briquetting Machine for Scrap
briquetting machine for coal/briquetting machine for scrap Introduction:

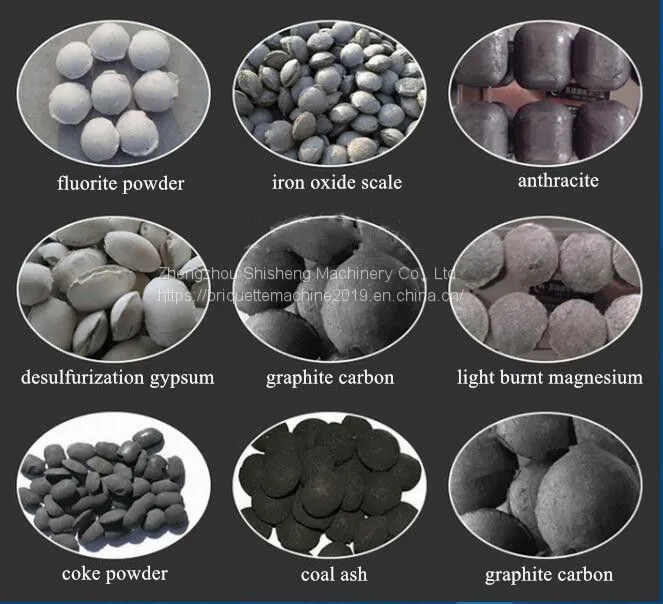

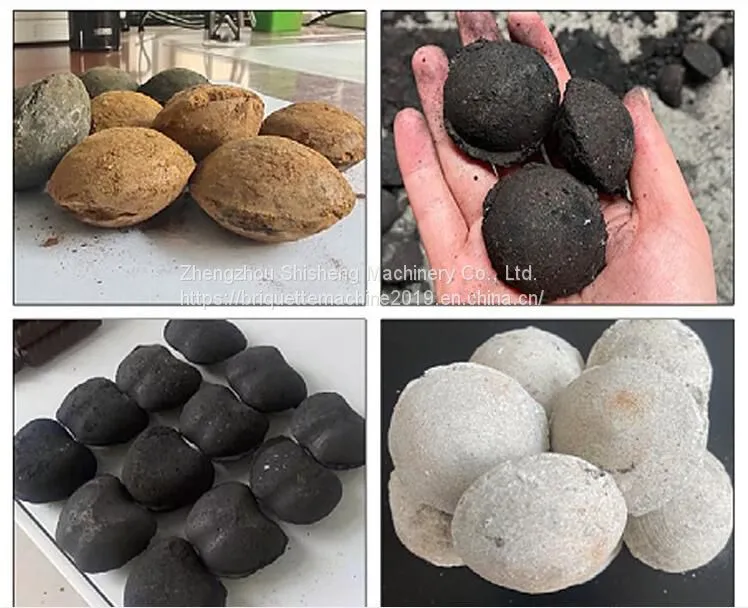

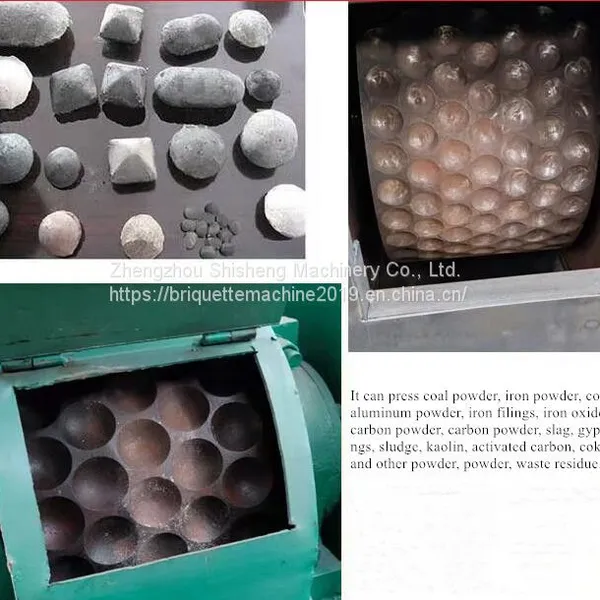

briquetting machine for coal/briquetting machine for scrap is used for coal fines, ore fines, desulfurization gypsum, phosphor gypsum, coke fines, iron fines, mill scale, fluorite power, manganese ore fine sand other material fines into briquette, which can be made to round ball shape,oval shape,pillowshape,square shape and so on,or can be manufacture as customer requirement.

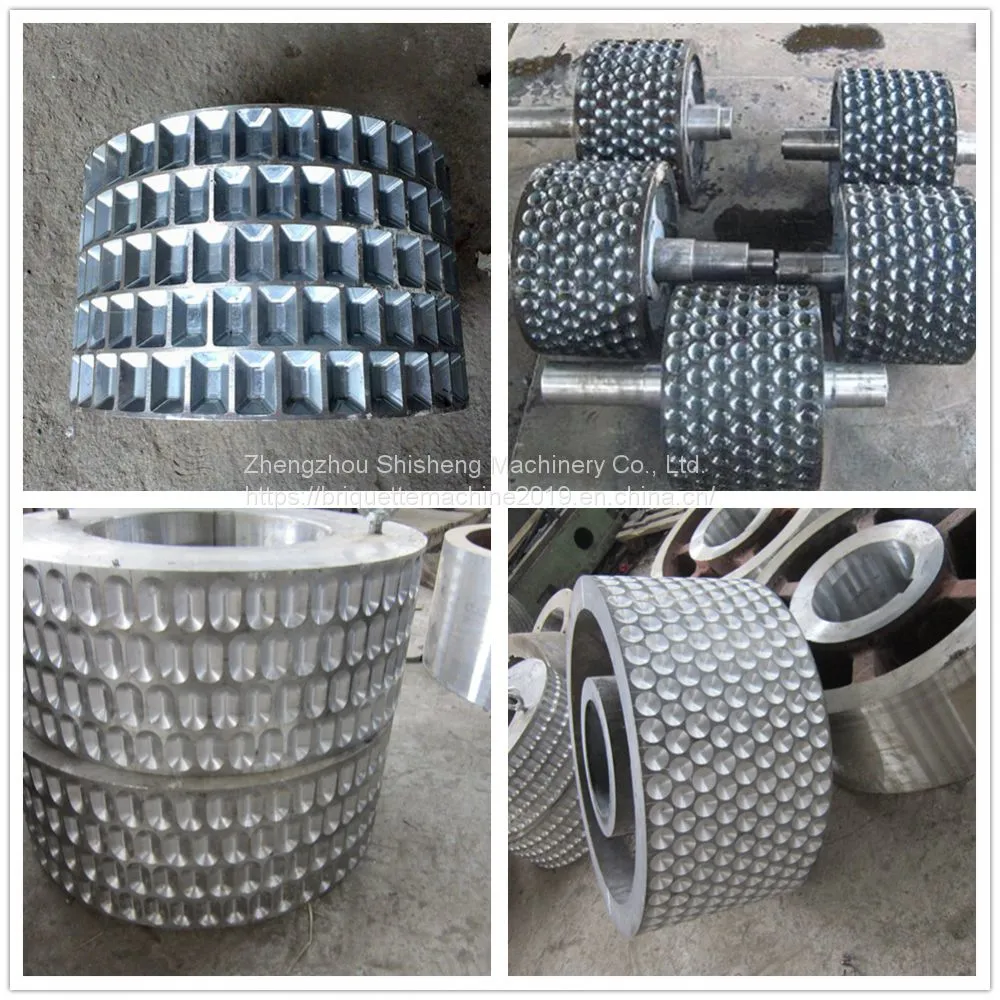

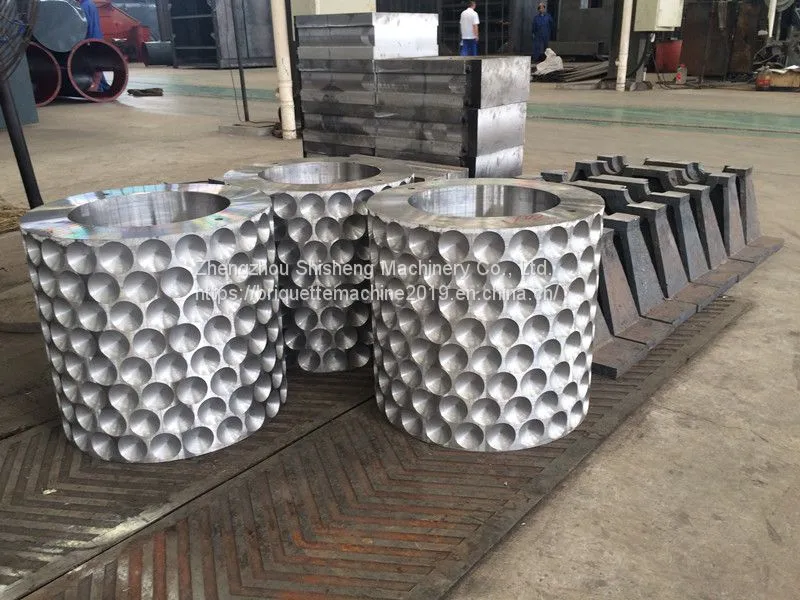

This briquetting machine for coal/briquetting machine for scrap is widely used in refratory industry,coal industry,and metallurgy industry, the main rollers adopt high-quality manganese steel materials(65Mn/9Cr2Mo), greatly improving the wear resistance and pressure ability, make the machine has a long service life, has been widely used in recent years.
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||

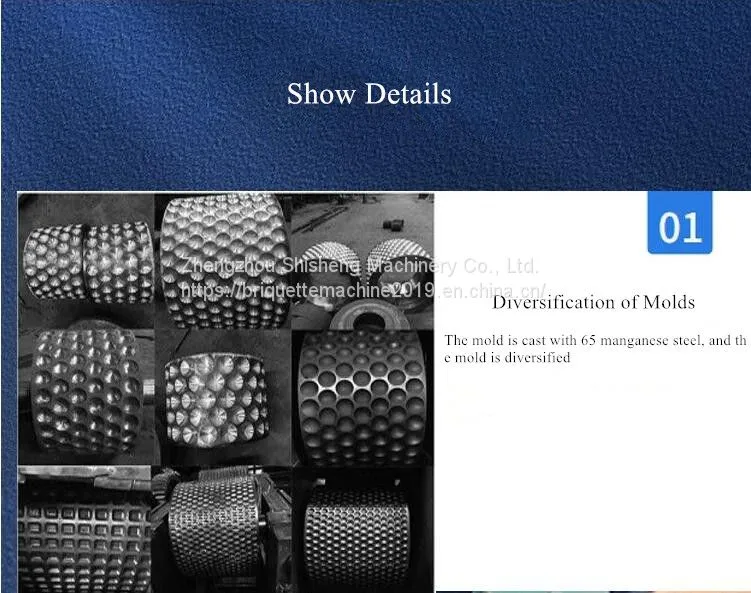

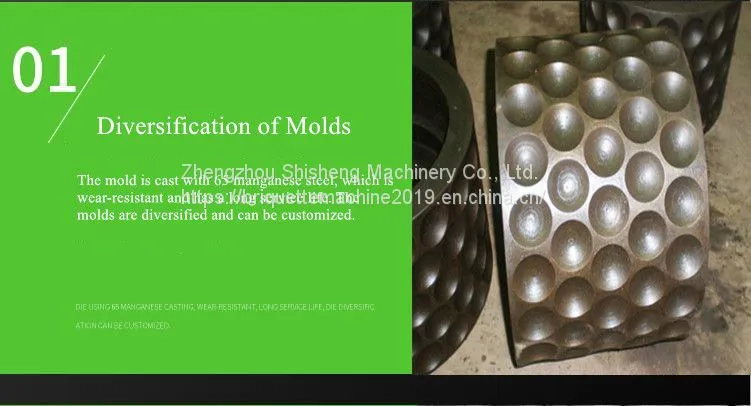

| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||

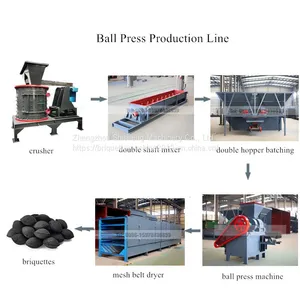

Briquetting Machine Production Line
