Waterproof Cable 2/3/4*0.75/1.0/1.5/2.0 Hydraulic Shielded Cable

Waterproof cable 2/3/4*0.75/1.0/1.5/2.0 Hydraulic cable

Waterproof cable application range:

The hydraulic cable is waterproof, oil resistant, cold resistant, corrosion resistant, UV resistant, flame retardant, bending resistant and suitable for dragging in underwater environment. Rosun Cable can be more required to process customized various combinations of special wire and cable for underwater use. Hydraulic cables are suitable for the connection between underwater instruments and aquatic equipment and the connection between underwater equipment and underwater equipment, such as water level measurement, reservoir and dam position Angle measurement, underwater robots, warships and ships, ocean exploration platforms, submersible motors and various underwater equipment towing cable use.

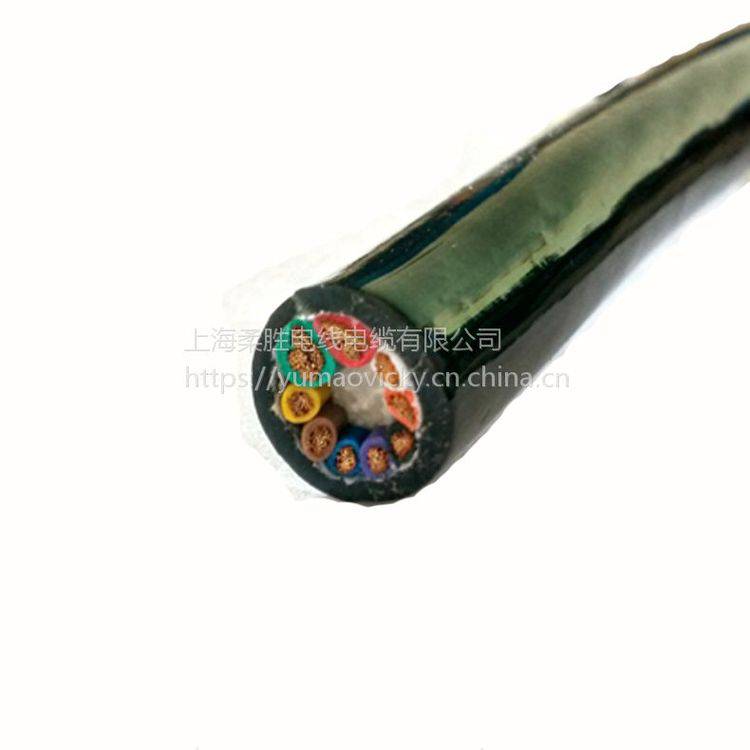

Waterproof cable structure:

Conductor: Using multiple strands of ultrafine fine stranded oxygen-free copper wire

Insulation: Special Acrylic PVC blend or TPE(optional)

Color: core color separation or numerical numbering separation

Shielding: tinned copper wire textile shielding, density: 85% or more

Jacket: polyurethane (PUR) Color: black, gray, orange

Rated voltage: cross section

Test voltage: 2500V

Waterproof cable operating temperature range:

Fixed installation -50℃ to +105℃

Mobile installation: -30℃ to +90℃

Bending radius:

Fixed installation: 5 x cable diameter (D)

Mobile installation: When the travel is less than 10 meters, the bending radius is 7.5×d

When the stroke is ≥10 meters, the bending radius is 10×D

Shanghai Rusheng main products:

Zero buoyancy cable, anti-seawater cable, underwater robot cable, floating cable, underwater photoelectric composite cable, high flexible tow chain cable, Low temperature and cold resistant cable, cable, oil resistant cable, lift cable, high flexibility and torsion cable, polyurethane (PUR/TPU) tow chain cable, servo cable, driving handle line, video transmission cable, encoder cable, sensor signal line, robot cable, flat cable, elevator cable, crane cable, reel cable, grab machine cable, scraper cable, rock drill cable , gantry cable, sling cable, elevator cable, reel cable, tow chain cable, tow chain video cable

Waterproof cable product customization description:

Shanghai Rooseng cable can customize various types and specifications of special purpose wire and cable according to customer requirements, customers provide samples or design drawings, our company can process according to the drawing and sample, and inform the user in a timely manner, for the need to optimize our company will communicate and negotiate with the user in a timely manner, if not processed will inform the user and return the sample. Technical support, Mr. Gong, tel: 13482197396, Q2939591145, WEIXIN13482197396.
