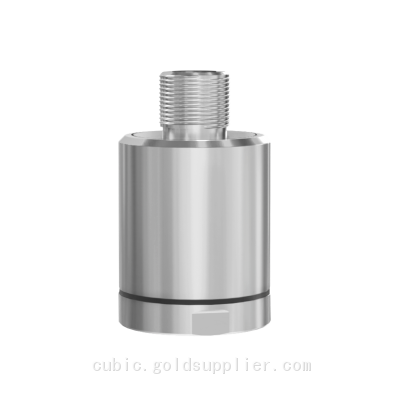

TDLAS CH4 Sensor Gasboard-2501 Series
- 30000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
TDLAS CH4 Sensor for Ambient Air Methane Detection Gasboard-2502
-
Cubic Safety Alarmer Carbon Monoxide Detector
-
Cubic Natural Gas Leakage Sensor NDIR CH4 Gas Detector
-
SF6 and Oxygen Gas Detector for HV GIS Switchgear
-
±75ppm@400-2500ppm High Accuracy NDIR CO2 Sensor CM1106HA-NS
-
Industrial Grade Low Power NDIR Methane Sensor SJH-100A-L
Product Details
| Brand Name | Cubic | Place of Origin | China | |
| Model Number | Gasboard-2501 Series | Usage | Gas Sensor |
Product Description
Introduction
Gasboard-2501 methane sensor is high-performance gas sensor based on tunable laser absorption spectroscopy technology (TDLAS).
Adopting a narrow-band tunable laser source, special gas chambers and optical path design, Gasboard-2501 TDLAS CH4 sensor has features of great stability, high precision, enhanced fast response, humidity interference-free, low maintenance and long lifetime.
Gasboard-2501 series could measure CH4 up to 100%Vol, are designed for scenarios with harsh working conditions. Suitable applications include Oil & Gas industry, energy sector, landfill monitoring, LNG transportation, gas leak detection, emission quantification, etc.
Features
1.Narrow absorbing spectrum determines great selectivity to CH4
2.Laser technology to ensure superior accuracy with low drift
3.Great anti-cross interference to other gases and high humidity
4.Fast response time
5.Low power consumption
6.Long lifetime over 10 years
7.ATEX & IECEx Ex ia IIC T4 Ga certified
Specifications
| Principle | TDLAS |
| Measurement Gas | CH4 |
| Model | Gasboard-2501-05F Gasboard-2501-100F |
| Measurement Range | 0~100%LEL (0~5%Vol) 0~100%Vol |
| Accuracy | ±5%LEL ±(0.25%Vol or 5% of reading, take whichever is greater) |
| Resolution | 0.1% LEL 0.01%Vol |
| Response Time | T90<20s |
| Output | UART_TTL (3V) |
| Working Condition | -25~55℃, 0~98%RH (non-condensing) |
| Storage Condition | -40~85℃, 0~98%RH (non-condensing) |
| Power Supply | 3.2~5.5V DC |
| Working Current | <30mA (@25℃, 3.3V DC) |
| Dimension | Dia35mm*H57.5mm |
