Product Introduction

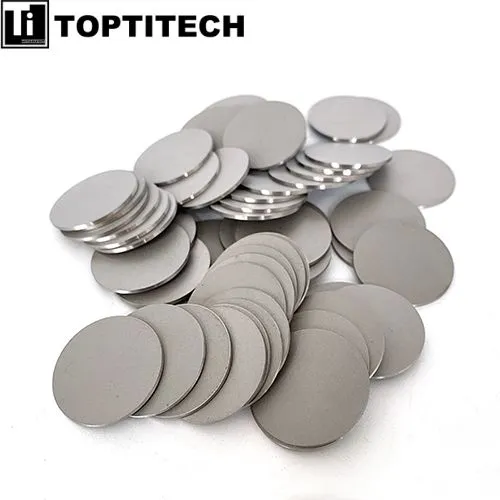

20um 316L microporous stainless steel filter disc is a type of filter element used for the filtration of liquids and gases. The disc is made by molding and sintering stainless steel powder together to create a porous structure. The resulting structure has a high filtration efficiency and a narrow pore size distribution, which allows for efficient filtration of small particles and impurities.
20um 316L microporous stainless steel filter disc is a type of corrosion-resistant steel that contains molybdenum, which improves its resistance to corrosion and pitting. This makes it a good choice for applications where the filter element will be exposed to corrosive fluids or environments.
Parameters
Brand: TOPTITECH
Material: 316L stainless steel
Max pressure: 5MPa
Max temperature: 600 degree
Types:disc

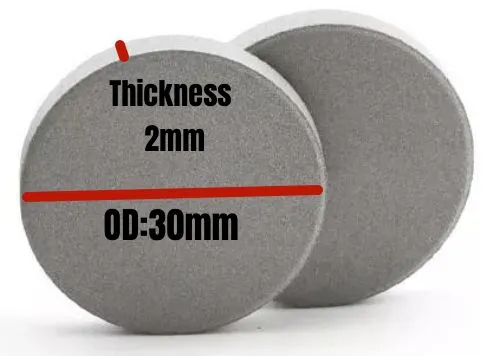

Diameter Size: 30 mm
Height Size: 2mm
Pore Size: stainless steel 20um
Three important aspects of the filter
Pore size: The pore size of the filter disc can be customized according to the specific application requirements. The pore size typically ranges from a few microns to several hundred microns.
Filtration efficiency: The sintered porous stainless steel filter disc can achieve high filtration efficiency due to its uniform pore structure. It can effectively remove particles and impurities from liquids and gases, including bacteria, viruses, and other contaminants.
Durability: The filter disc is made of durable stainless steel, which makes it highly resistant to corrosion and wear. It can withstand high temperatures, pressures, and aggressive chemicals without degrading over time.
Application
A. Solid gas separation
J. Cooling
B. Muffler, silencer
K. Diffuse, evenly spread, or uniform gas, oil, or heat
C. Air purification
L. Breathable protection
D. Filtering oil
M. Pharmaceutical, medicine
E. Dedusting, Isolation dust, dust proof
N. Chemical
F. Gas-oil dissociation
O. Chemical fiber
G. Gas liquid separation
P. Filtration for high temperature environment
H. Moisture proof
Q. High pressure reverse wash filtering
I. Heat insulation
R. Acid and alkali corrosion environment filtering
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
