Ip65 22mm Flat Head Dot Illumination 20amp Spdt 12 Volt Push Button Switch Momentary
US$ 3.46 - 3.46
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
HBAN
Place of Origin:
China
Model Number:
HB-K20A-11D/12V/R
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Ip65 22mm Green High Head 20a 1NO 1NC Push Button Starter Switch Installation ResetUS$ 2.83 - 2.83MOQ: 20 Pieces -
Ip65 22mm High Head Blue Dot Led 24v 1NO 1NC on off Button Switch Self RecoveryUS$ 3.58 - 3.58MOQ: 20 Pieces
-
Ip65 22mm Mushroom Head Dot Illumination 24v 1no 1nc Stop Start Push Button Switch MomentaryUS$ 3.58 - 3.58MOQ: 20 Pieces
-
Ip65 22mm Big Red Head 20a One Normally Open and One Normally Close Latching Push ButtonUS$ 3.27 - 3.27MOQ: 20 Pieces
-
Ip65 22mm Green Flat Head 20a 1NO 1NC Metal Push Button Switch Self RecoveryUS$ 2.94 - 2.94MOQ: 20 Pieces
Brand Name
HBAN
Place of Origin
China
Model Number
HB-K20A-11D/12V/R
Protection Level
IP65
Max. Voltage
400V
Max. Current
20A

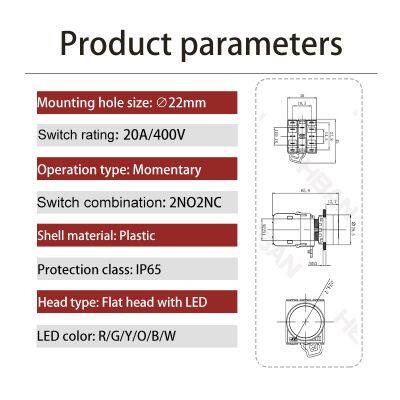

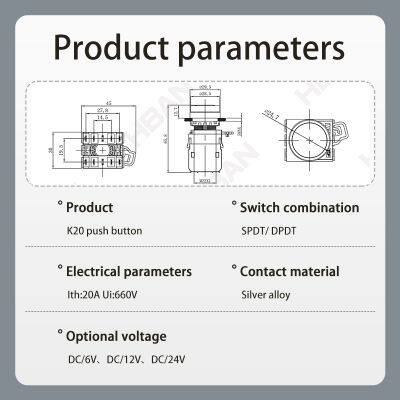

Product Paramenters:
Mounting hole size: | 22MM |
Head type: | Flat head |
Rated Voltage: | 20A/400V |
Crust material: | Plastic |
Terminal type: | Pin terminal |
Waterproof: | IP65 |
Illumination type: | Dot LED |
LED color : | Red |
LED voltage: | 12V |
LED life: | 50,000 hours |
Product Description:
Product Packaging:
We pack 20 pieces diameter 22mm 12 volt push button switch into 1 foam box to protect them.We supply 20 pieces rubber rings.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Product Information:
Shanghai hongbo (HBAN) electric
2012 ushered in the first exhibition - Hongkong
2016 2017 2018 2019 - Brazil , Dubai , Vietnam , Japan , America , India all have our footprints.
2016 2017 2018 2019 - Brazil , Dubai , Vietnam , Japan , America , India all have our footprints.
Shanghai hongbo (HBAN) electric Is national high-tech enterprise specializing in the development and manufacturing of push button switches and indicators,Adhering to the concept of customer first and quality first.Since its establishment in 2003,the company has been committed to building a high-quality switch brand in China and has achieved fruitful results.Not only has it assembled an outstanding professional R&D team,equipped with advanced high-tech production equipments,but also trained a group of skilled first-line production employees,which lead to a great progress of the innovation level and supply speed,and set the company in a leading position in the same industry.
Q: What kind of payment do you accept? Can I pay via RMB?A: We accept T/T (Wire transfer), Western Union, PayPal and credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money in RMB. No problem.
Q : What about your delivery time?A: We have a lot of products in stock. We can send the inventory products in 3 working days. If we don't have them in stock, or our stock is not enough, we will check the delivery time for you.
Q : How to ship my order? Is it safe?A: For small packages, we will send them by Express, such as DHL, FedEx, UPS, TNT. That's a Door to Door service. For big packages, we will send them by Air or by Sea. We will use good packaging and ensure the safety. We will be responsible to any product damage caused on delivery.
Q: Do you have a catalog? Can you send me the catalog to check all your products?A: Yes, we have a product catalog. Please contact us online or send an email so that we can offer you the catalog.
Q: Do you have a guarantee for your products' quality?
In 2016,the company passed the Reach certification,American UL and Canadian CUL certification
In 2022,Attended the Munich Exhibition in Germany
Q: Can you provide samples? Are the samples free?A: Yes, we can provide samples. We will collect samples fee (1-3 pcs) and you have to pay for the shipping cost. When you place an official order, we will refund the sample fee to you.
Q: What kind of payment do you accept? Can I pay via RMB?A: We accept T/T (Wire transfer), Western Union, PayPal and credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money in RMB. No problem.
Q : What about your delivery time?A: We have a lot of products in stock. We can send the inventory products in 3 working days. If we don't have them in stock, or our stock is not enough, we will check the delivery time for you.
Q : How to ship my order? Is it safe?A: For small packages, we will send them by Express, such as DHL, FedEx, UPS, TNT. That's a Door to Door service. For big packages, we will send them by Air or by Sea. We will use good packaging and ensure the safety. We will be responsible to any product damage caused on delivery.
Q: Do you have a catalog? Can you send me the catalog to check all your products?A: Yes, we have a product catalog. Please contact us online or send an email so that we can offer you the catalog.
Q: Do you have a guarantee for your products' quality?
A: We have a guarantee for one year. Any requirements or questions, please send us an email now! It'll be our great honor to service you! We will reply you ASAP. If no response within 24 hours, please kindly check the spam in your mail box.
