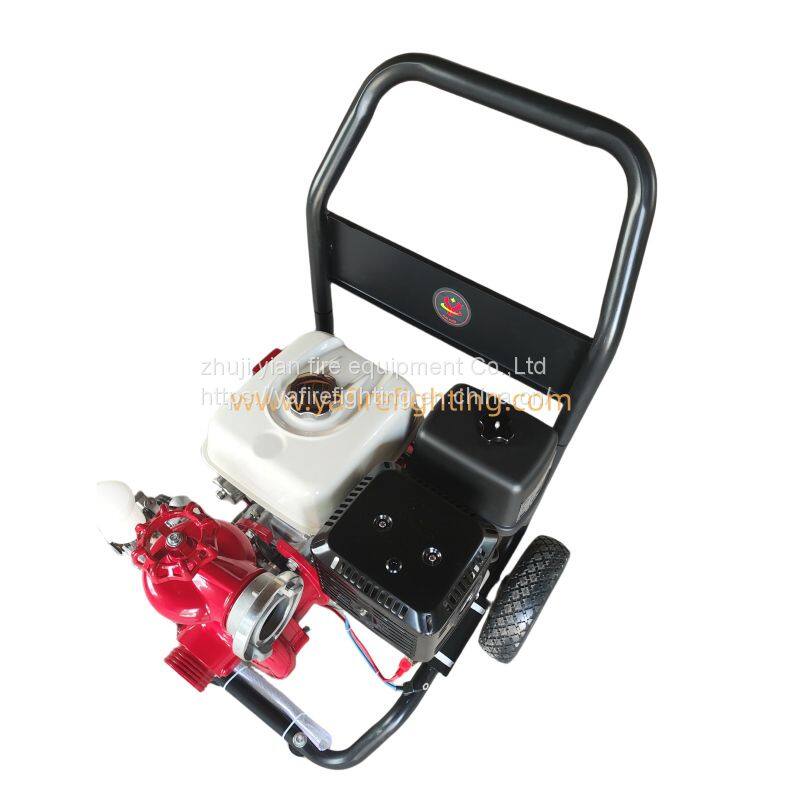

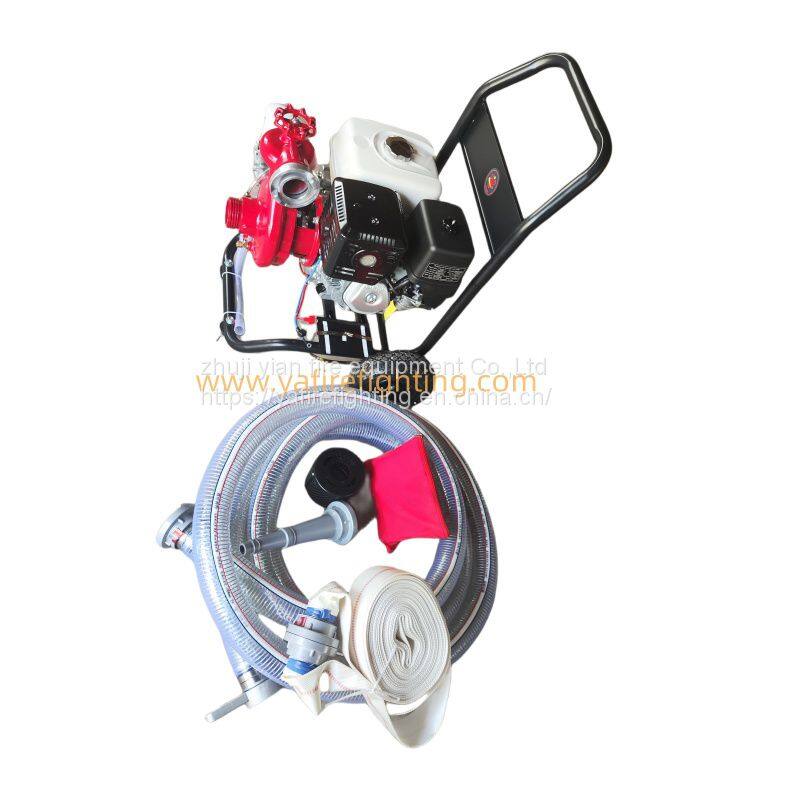

manufacturing portable water pump set

manufacturing portable water pump set is composed of engine, priming device and centrifugal water pump. It's a kind of multi-purpose pump, mainly designed for fire fighting, suitable for fire fighting in fire rescue departments, professional fire brigades, industrial and mining enterprises, counties,villiages, towns, etc.It has more advantages on narrow roads or places where fire trucks could not reach. It also could be used for drain waterlogging, drought resistance,irrigation,etc. It's an ideal equipment for watering, water supply and emergency disaster relief.

Manufacturing portable water pump set technical data:
Engine Model : Single,air-cooled,4-stroke,GX390
Displacement  : 389ml
Max theoretical power  :9.6kw /13HP
Pump body : Single stage
Fuel tank capacity:  6.5L
Oil capacity :  1.1L
Starting system:  Recoil/electric start
Rated flow:  600L/min
Rated presure : 0.6mpa
Max suction depth :  ≥7m
Priming type  : Rotary vane vacuum pump
Priming time: ≤10s
Pump head: 70m
Inlet  :65mm
Outlet:  65mm
Weight : 63kg
Appearance size : 630*530*500
Contact:linda at yafirefighting dot com
