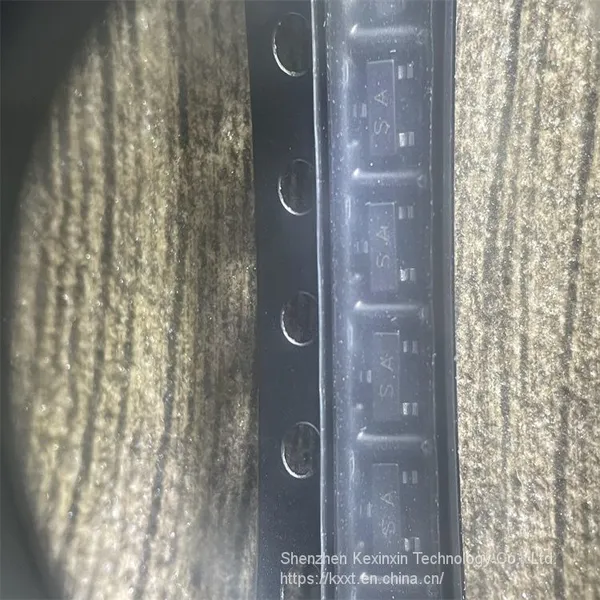

Help CenterBSS123 Onsemi / Fairchild MOSFET SOT-23 N-CH LOGIC
Related Products
-
FDA8440 Onsemi / Fairchild MOSFET 40V 100A 2.1mOhm N-Chan Power TrenchUS$ 4 - 7MOQ: 1 Piece -
FQA170N06 Onsemi / Fairchild MOSFET 60V N-Channel QFETUS$ 5 - 10MOQ: 1 Piece
-
New Original BSS87,115 Electronic Components Integrate Circuit MOSFETUS$ 0.12 - 0.4MOQ: 10 Pieces
-
SI7998DP-T1-GE3 Vishay Semiconductors MOSFET 30V Vds 20V Vgs PowerPAK SO-8US$ 0.65 - 1.3MOQ: 10 Pieces
-
100V N+N-Channel Enhancement Mode MOSFET AP40H10NFUS$ 0.28 - 0.5MOQ: 10 Pieces
Mfr. #:
BSS123
Manufacturer: onsemi
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 100 V
Id - Continuous Drain Current: 170 mA
Rds On - Drain-Source Resistance: 6 Ohms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 800 mV
Qg - Gate Charge: 2.5 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 300 mW
Channel Mode: Enhancement
Series: BSS123
Packaging: Reel
Packaging: Cut Tape
Packaging: kxxReel
Brand: onsemi / Fairchild
Configuration: Single
Fall Time: 9 ns
Forward Transconductance - Min: 0.8 S
Height: 1.2 mm
Length: 2.9 mm
Product: MOSFET Small Signal
Product Type: MOSFET
Rise Time: 9 ns
factory pack quantity: 3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Type: FET
Typical Turn-Off Delay Time: 17 ns
Typical Turn-On Delay Time: 1.7 ns
Width: 1.3 mm
Part # Aliases: BSS123_NL
Unit Weight: 0.000282 oz
Send Inquiry to This Supplier
