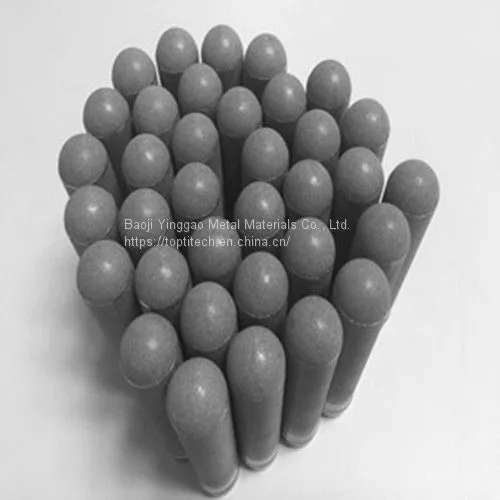

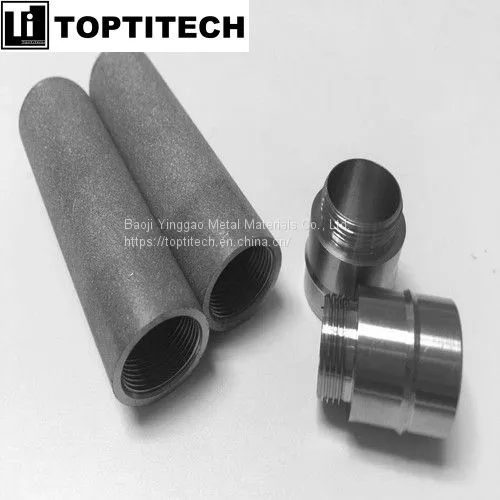

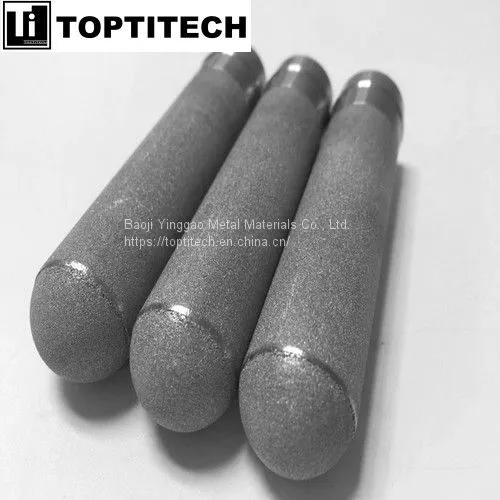

20 Inch Metal Sintered Powder Filter Cartridge
20 inch metal sintered powder filter cartridge is composed of 316L stainless steel powder. The powder is first compacted into a green body and then sintered at high temperatures to form a solid metal structure. The resulting filter element has a porous structure with a high strength-to-weight ratio and excellent corrosion resistance.
20 inch metal sintered powder filter cartridge is commonly used in the pharmaceutical, food and beverage, chemical, and petrochemical industries, among others. It is particularly well-suited for applications where high-temperature and high-pressure conditions are present, as well as in environments where chemical resistance is important.
Parameters
Material: Stainless steel304/316L
Brand:TOPTITECH
Pore Size: 0.5um, 2um, 5um, 10um, 15um, 20um, 40um, 60um, 90um, 100um
Filter Rating: 99.99%
Size: OD20MM Length50mm Wall Thickness2mm
Shape:Disc,tube, cup or customized shape
Features
Sophisticated Design
Uniform structure
High porosity
Low filtration
Resistance and good
Permeability
Good Performance
High hardness strong pressure
resistance, high and low
temperature resistance
Strong chemical properties,corrosion
resistance and long service life
Support Customization
The material is easy to shape
stable in performance durable
and can be processed into
various shapes as required
Applications
Aerospace industry: used in aerospace applications where high-temperature and high-pressure conditions are present, such as in rocket engines and fuel systems.
Automotive industry: used in automotive applications such as fuel and oil filtration, where it can withstand high temperatures and corrosive environments.
Water treatment industry: used in water treatment applications such as reverse osmosis, desalination, and wastewater treatment, where it can remove impurities and contaminants from water.
Semiconductor manufacturing industry:used in semiconductor manufacturing processes, where it can remove particles and contaminants from chemicals and gases used in the manufacturing process.
Oil and gas industry: used in the oil and gas industry for filtration of crude oil, natural gas, and other fluids used in drilling and production processes, where it can withstand high temperatures and pressures.
