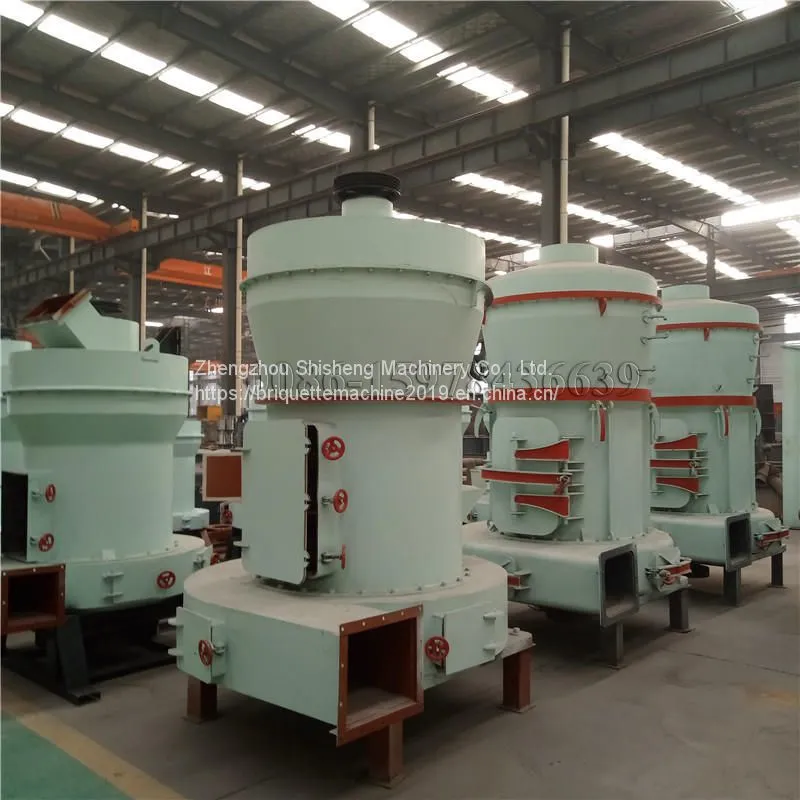

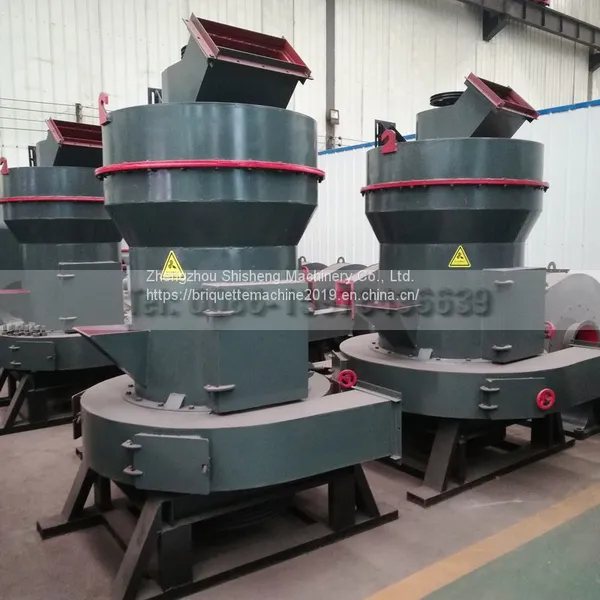

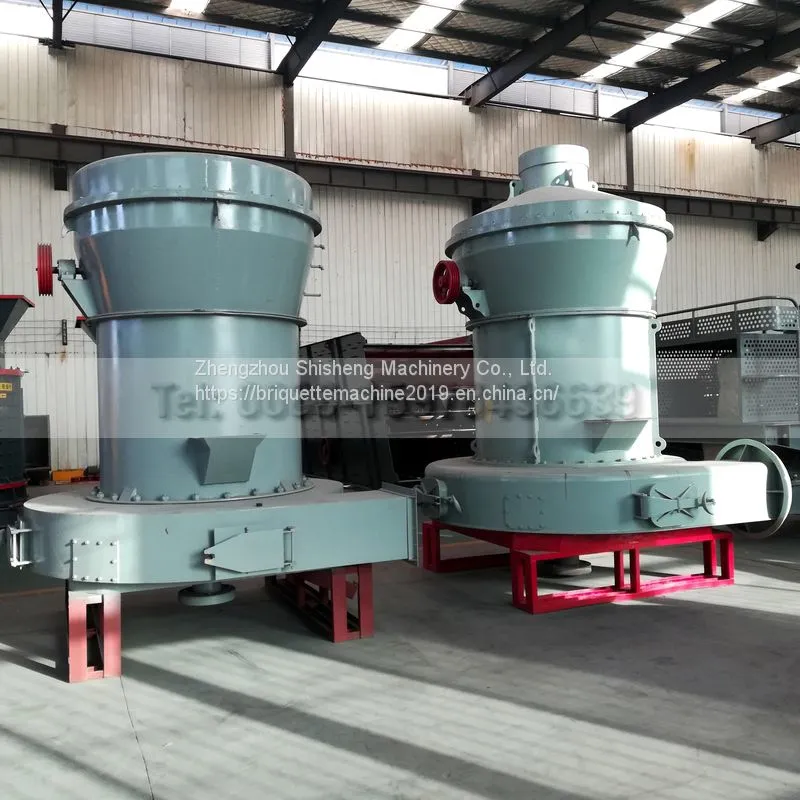

High Efficiency And Precision Classifier Raymond Roller Mill Grinding Non-flammable
Raymond Roller Mill Introduction:
This Raymond Roller Mill is widely used in barite, calcite, carborundum, silicon carbide, potassium feldspar, marble, limestone, dolomite, fluorite, lime, titanium dioxide, activated carbon, bentonite, kaolin, white cement, calcium carbonate, gypsum, glass, manganese, titanium, refractory materials, insulation materials, coal gangue, carbon black, coal, clay, talc, shell, resin, ferric oxide, hong huang dan, quartz, petroleum coke with hardness less than 7 humidity, in more than 500 in charge of flammable and explosive materials powder processing under 6%, the product size can be adjusted in the range of 60-325 mesh, part of the material up to 1000 mesh.
Raymond Roller Mill Working Principle:

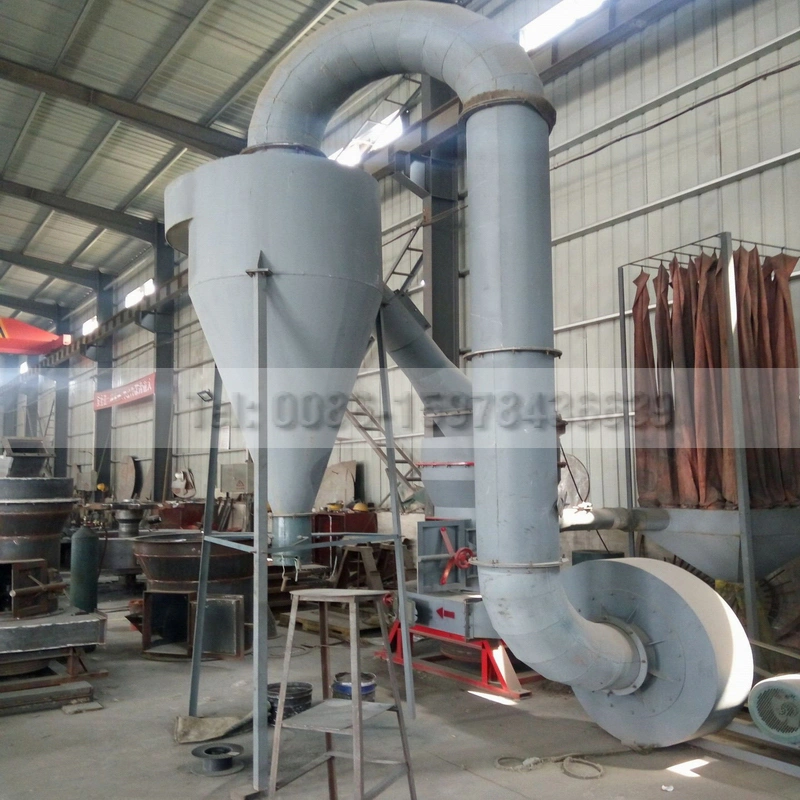

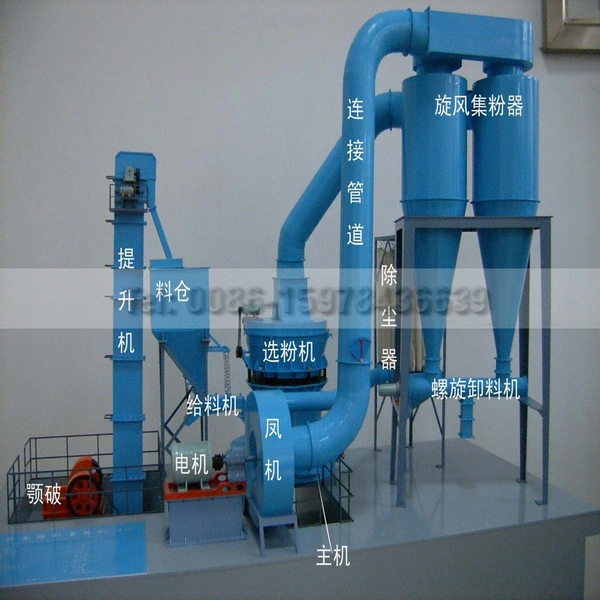

After the materials enter the grinding chamber of the main frame, the grinding roller swings outward and presses closely upon the grinding ring due to the centrifugal force generated by the rotation of the main shaft. The blade carries materials to the space between the grinding roller and grinding ring, and materials are ground as the grinding roller rolls. After being ground, the powder is selected by classifier via the cycle wind of the blower and the rough powder will be back to the grinding chamber for regrinding. The qualified powder is brought into the powder collector together with airflow. The powder comes out as end products while the airflow goes back to the powder collector in cycling to make the machine work normally. The remained airflow comes out after purification by dust filter.
Raymond Roller Mill Technical Parameter:
Model |
Roller Number(pcs) |
Mill Roll Size (R*Hmm) |
Size and Height of Grinding Ring(mm) |
Maximum Feed Length(mm) |
Product Granularity (mm) |
Capacity(t/h) |
Motor Power(kw) |
3R1510 |
3 |
150*100 |
480*100 |
15 |
0.2-0.044 |
0.3-1 |
7.5 |
3R2615 |
3 |
260*150 |
780*150 |
20 |
0.2-0.044 |
1-1.5 |
18.5 |
3R2715 |
3 |
270*150 |
830*150 |
20 |
0.2-0.044 |
1-3 |
22 |
3R3016 |
3 |
300*160 |
880*160 |
20 |
0.2-0.044 |
1-4 |
30 |
3R3018 |
3 |
300*180 |
990*180 |
20 |
0.2-0.044 |
3-5 |
30 |
4R3216 |
4 |
320*160 |
1073*160 |
25 |
0.2-0.044 |
2-6 |
37 |
4R3220 |
4 |
320*200 |
1075*200 |
25 |
0.2-0.044 |
2-7 |
37 |
5R4119 |
5 |
410*190 |
1300*190 |
35 |
0.2-0.044 |
2-8.5 |
75 |
5R4121 |
5 |
410*210 |
1300*210 |
35 |
0.2-0.044 |
3-9 |
75 |
5R4125 |
5 |
410*250 |
1300*250 |
35 |
0.2-0.044 |
5-10 |
75 |
6R4528 |
6 |
450*280 |
1600*280 |
40 |
0.2-0.044 |
3-16 |
132 |

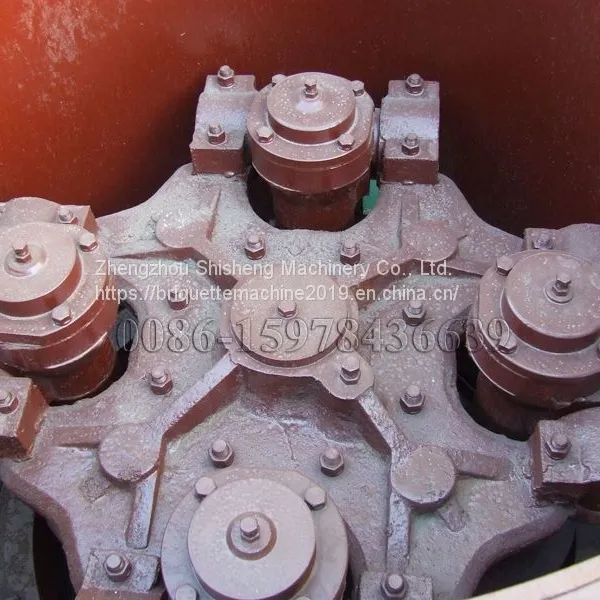

Raymond Roller Mill Spare Parts:
