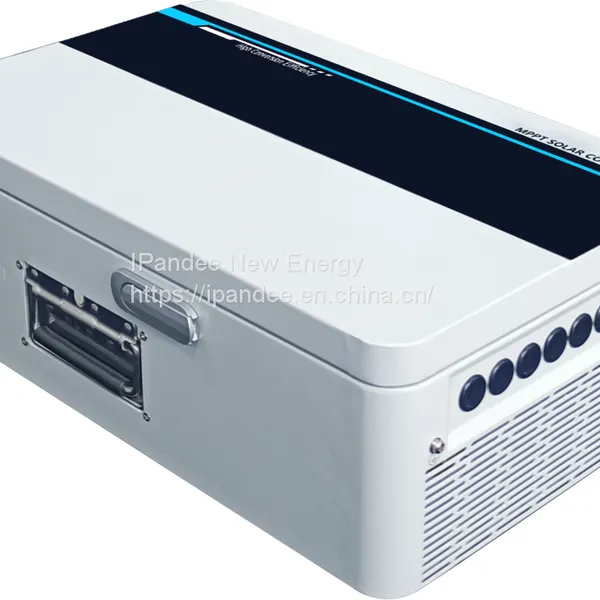

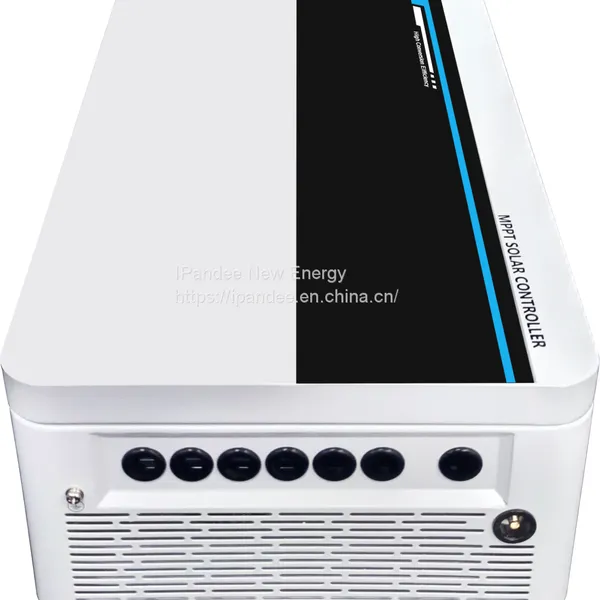

Solar Panel Regulator High Voltage Power Galaxy Auto 96V 192V 216V 240V 384V 50A 80A 100A Mppt Solar Charge Controller

FOB Price

USD $530 - $1350 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	GALAXY
Application	Charger Controller	Rated Voltage	Other, 96V
Maximum Current	100A

Product Description

Solar Panel Regulator High Voltage Power Galaxy Auto 96V 192V 216V 240V 384V 50A 80A 100A Mppt Solar Charge Controller

Galaxy series (96V, 192V, 216V, 240V)		GS96L100	GS192L50	GS216L50	GS240L50
Product Category	Controller type	Solar Charge Controller with Maximum Power Point Tracking (MPPT)
	Maximum Power Point Tracking Efficiency	99.5%
	Cooling method	forced air cooling
	Lead-acid battery system voltage range	72V~120V	144V-240V	162V-270V	180V-300V
	Lithium-ion battery system	96V	192V	216V	240V
Input characteristics	Maximum input voltage(Voc.Max)	430VDC
	Minimum MPPT voltage（Vmppt.min）	Vbat + 10V
	start charging voltage	Vbat + 20V
	Input overvoltage protection/recovery voltage	430VDC/425VDC
	Rated input power(W)	10400
Charging characteristics	Applicable battery type	Common lead-acid batteries (SEL, GEL, FLD) and custom lead-acid batteries, custom lithium iron phosphate, ternary lithium or other lithium-ion batteries
	Rated charging current	100A	50A	50A	50A
	charging method	Lead Acid Battery: CC (Quick Charge)-CV (Constant Voltage Charge)-CF (Float Charge) Li-Ion Battery: CC (Quick Charge)-CV (Constant Voltage Charge)
Load characteristics	load voltage	Same as battery voltage
	Rated load current	100A	50A	50A	50A
	load control mode	On/Off, Light Control Mode, Dual Time Period Timing Control Mode, Fixed Time Light Control Mode
Display & Communication	Display	Working status indicator or MH-M80 meter
	communication	Dual RJ45 interface/RS485 bus/host computer software/built-in Bluetooth/WIFI module mobile phone cloud monitoring (optional)
	protocol	Standard Modbus protocol & non-standard proprietary protocol
Other features	How to set	PC softwar / APP /Meter
	Protections	Input and output overvoltage protection/input reverse connection protection/ battery reverse connection protection/overheat
	Operating ambient temperature	-20℃~+50℃
	Storage temperature	-40℃~+75℃
	IP(Ingress protection)	IP21
	Recommended breaker for battery	≥125A	≥80A	≥80A	≥80A
	net weight/Gross weight	17kg/23.5kg
	Product Size/Package dimensions	313540187MM/635430295MM( wooden box)

Galaxy series (192V, 216V, 240V, 384V)		GS192H100	GS216H100	GS240H100	GS384H50	GS384H80	GS384H100
Product Category	Controller type	Solar Charge Controller with Maximum Power Point Tracking (MPPT)
	Maximum Power Point Tracking Efficiency	99.5%
	Cooling method	forced air cooling
	Lead-acid battery system voltage range	144V-240V	162V-270V	180V-300V	288V-480V
	Lithium-ion battery system	192V	216V	240V	384V
Input characteristics	Maximum input voltage(Voc.Max)	660VDC			850VDC
	Minimum MPPT voltage（Vmppt.min）	Vbat + 10V
	start charging voltage	Vbat + 20V
	Input overvoltage protection/recovery voltage	660VDC			850VDC/845VDC
	Rated input power(W)	20800	23400	26000	2080	33280	41600
Charging characteristics	Applicable battery type	Common lead-acid batteries (SEL, GEL, FLD) and custom lead-acid batteries, custom lithium iron phosphate, ternary lithium or other lithium-ion batteries
	Rated charging current	100A	100A	100A	50A	80A	100A
	charging method	Lead Acid Battery: CC (Quick Charge)-CV (Constant Voltage Charge)-CF (Float Charge) Li-lon Battery: CC (Quick Charge)-CV (Constant Voltage Charge)
Load characteristics	load voltage	Same as battery voltage
	Rated load current	--	--	--	--	--	--
	load control mode	On/Off, Light Control Mode, Dual Time Period Timing Control Mode, Fixed Time Light Control Mode	Normally open
Display & Communication	Display	Working status indicator or MH-M80 meter
	communication	Dual RJ45 interface/RS485 bus/host computer software/built-in Bluetooth/WIFI module mobile phone cloud monitoring (optional)
	protocol	Standard Modbus protocol & non-standard proprietary protocol
Other features	How to set	PC softwar / APP /Meter
	Protections	Input and output overvoltage protection/input reverse connection protection/ overheat protection/overcharge protection
	Operating ambient temperature	-20℃~+50℃
	Storage temperature	-40℃~+75℃
	IP(Ingress protection)	IP21
	Recommended breaker for battery	≥125A	≥125A	≥125A	≥80A	≥100A	≥125A
	net weight/Gross weight	32kg/30kg			--
	Product Size/Package dimensions	340522222MM/620450335MM (wooden box)			340585227MM/680450335MM (wooden box)
