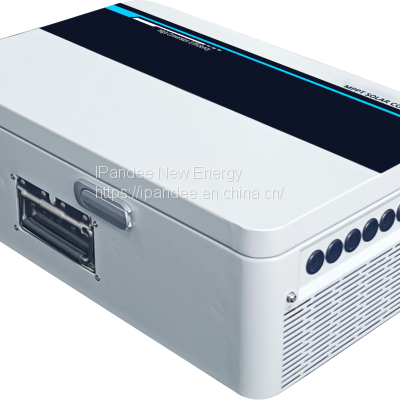

Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System

IPandee New Energy
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System thumbnail-1
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System thumbnail-2
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System thumbnail-3
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System thumbnail-4
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System thumbnail-5
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System photo-1
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System photo-2
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System photo-3
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System photo-4
Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt Ipanda Mppt 100A For Telecom Sites Backup Power System photo-5
US$ 530 - 1350 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
GALAXY
Application:
Charger Controller
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number GALAXY
Application Charger Controller
Rated Voltage Other, 96V
Maximum Current 100A

Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt ipanda Mppt 100A For Telecom Sites Backup Power System

Galaxy series
(96V, 192V, 216V, 240V)
GS96L100
GS192L50
GS216L50
GS240L50
Product Category
Controller type
Solar Charge Controller with Maximum Power Point Tracking (MPPT)
Maximum Power Point Tracking Efficiency
99.5%
Cooling method
forced air cooling
Lead-acid battery system voltage range
72V~120V
144V-240V
162V-270V
180V-300V
Lithium-ion battery system
96V
192V
216V
240V
Input characteristics
Maximum input voltage(Voc.Max)
430VDC
Minimum MPPT voltage（Vmppt.min）
Vbat + 10V
start charging voltage
Vbat + 20V
Input overvoltage protection/recovery voltage
430VDC/425VDC
Rated input power(W)
10400
Charging characteristics
Applicable battery type
Common lead-acid batteries (SEL, GEL, FLD) and custom lead-acid batteries, custom lithium iron phosphate, ternary lithium or other lithium-ion batteries
Rated charging current
100A
50A
50A
50A
charging method
Lead Acid Battery: CC (Quick Charge)-CV (Constant Voltage Charge)-CF (Float Charge) Li-Ion Battery: CC (Quick Charge)-CV (Constant Voltage Charge)
Load characteristics
load voltage
Same as battery voltage
Rated load current
100A
50A
50A
50A
load control mode
On/Off, Light Control Mode, Dual Time Period Timing Control Mode, Fixed Time Light Control Mode
Display & Communication
Display
Working status indicator or MH-M80 meter
communication
Dual RJ45 interface/RS485 bus/host computer software/built-in Bluetooth/WIFI module mobile phone cloud monitoring (optional)
protocol
Standard Modbus protocol & non-standard proprietary protocol
Other features
How to set
PC softwar / APP /Meter
Protections
Input and output overvoltage protection/input reverse connection protection/ battery reverse connection protection/overheat
Operating ambient temperature
 -20℃~+50℃
Storage temperature
 -40℃~+75℃
IP(Ingress protection)
IP21
Recommended breaker for battery
≥125A
≥80A
≥80A
≥80A
net weight/Gross weight
17kg/23.5kg
Product Size/Package dimensions
313*540*187MM/635*430*295MM( wooden box)
Galaxy series
(192V, 216V, 240V, 384V)
GS192H100
GS216H100
GS240H100
GS384H50
GS384H80
GS384H100
Product Category
Controller type
Solar Charge Controller with Maximum Power Point Tracking (MPPT)
Maximum Power Point Tracking Efficiency
99.5%
Cooling method
forced air cooling
Lead-acid battery system voltage range
144V-240V
162V-270V
180V-300V
288V-480V
Lithium-ion battery system
192V
216V
240V
384V
Input characteristics
Maximum input voltage(Voc.Max)
660VDC
850VDC
Minimum MPPT voltage（Vmppt.min）
Vbat + 10V
start charging voltage
Vbat + 20V
Input overvoltage protection/recovery voltage
660VDC
850VDC/845VDC
Rated input power(W)
20800
23400
26000
2080
33280
41600
Charging characteristics
Applicable battery type
Common lead-acid batteries (SEL, GEL, FLD) and custom lead-acid batteries, custom lithium iron phosphate, ternary lithium or other
lithium-ion batteries
Rated charging current
100A
100A
100A
50A
80A
100A
charging method
Lead Acid Battery: CC (Quick Charge)-CV (Constant Voltage Charge)-CF (Float Charge) Li-lon Battery: CC (Quick Charge)-CV (Constant
Voltage Charge)
Load characteristics
load voltage
Same as battery voltage
Rated load current
--
--
--
--
--
--
load control mode
On/Off, Light Control Mode, Dual Time Period Timing Control Mode, Fixed Time Light Control Mode
Normally open
Display & Communication
Display
Working status indicator or MH-M80 meter
communication
Dual RJ45 interface/RS485 bus/host computer software/built-in Bluetooth/WIFI module mobile phone cloud monitoring (optional)
protocol
Standard Modbus protocol & non-standard proprietary protocol
Other features
How to set
PC softwar / APP /Meter
Protections
Input and output overvoltage protection/input reverse connection protection/ overheat protection/overcharge protection
Operating ambient temperature
 -20℃~+50℃
Storage temperature
 -40℃~+75℃
IP(Ingress protection)
IP21
Recommended breaker for battery
≥125A
≥125A
≥125A
≥80A
≥100A
≥125A
net weight/Gross weight
32kg/30kg
--
Product Size/Package dimensions
340*522*222MM/620*450*335MM (wooden box)
340*585*227MM/680*450*335MM (wooden box)

Solar Charge Controller 50A 80A 100A 96V/192V/384V/480V Ipanda Mppt ipanda Mppt 100A For Telecom Sites Backup Power System
