Long Service Life Raymond Mill For Gypsum Unique Airtightness
- 100 Set / Sets per Month
- High Efficiency And Precision Classifier Raymond Mill For Limestone Unique Airtightness
- High Efficiency And Precision Classifier Raymond Mill For Limestone Unique Airtightness
- Long Service Life Raymond Grinder Easy To Install And Adjust
- Easy To Install And Adjust Raymond Mills Long Service Life
- Easy To Install And Adjust Raymond Mills Can Be Used In Grinding Of Quartz
- Long Service Life Raymond Grinder Convenient Repaire And Maintenance
Product Description
Introduction:

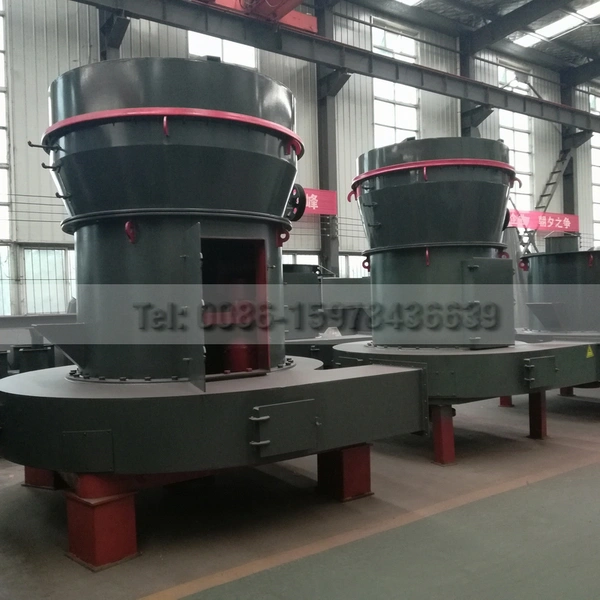

Raymon mill also known as Raymond grinding mill, Raymond roller mill and Raymond grinder. Is suitable for grinding non-flammable and non-explosive materials. The finished powder size can be adjusted between 30-425 mesh(0.613mm-0.044mm)
The raymond grinding mill is widely used in such small and medium industries as mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement, etc. It can be used in grinding of quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore,slag, carborundum, bauxite, rock phosphate, coal , etc.
Main Features:
1. High efficiency and precision classifier, unique airtightness, which canensure the quality of end products.
2. The wear-resistant volute can effectively improve the material liquidity, decrease the air volume loss and avoid air energy loss.
3. The bevel gear overall dive can achieve higher transmission efficiency, easy to install and adjust, long service life and lower cost.
4. Convenient repaire and maintenance.
5. Long service life.
Working Principle:

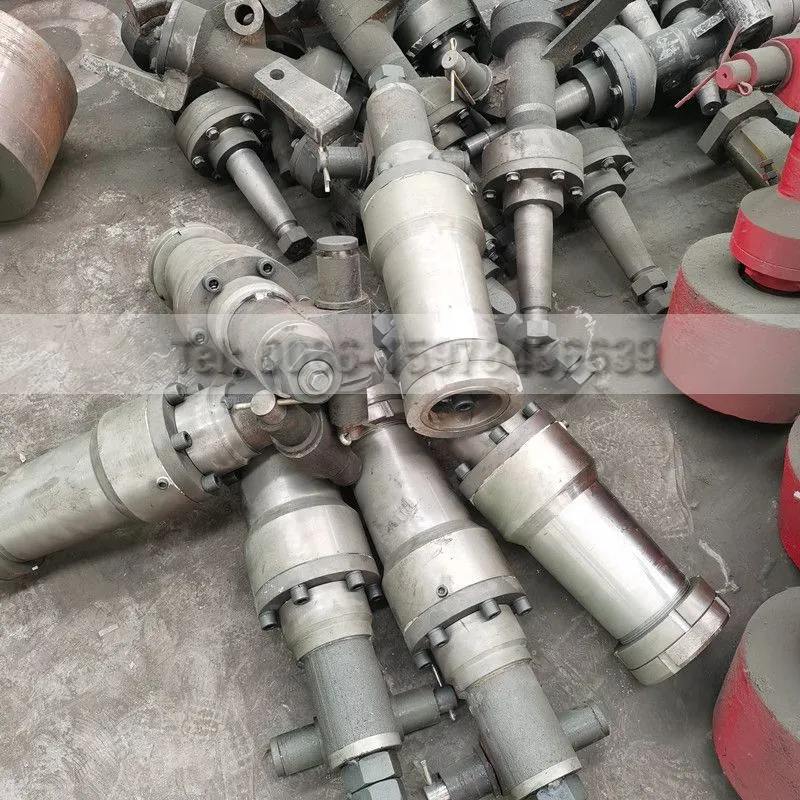

After the materials enter the grinding chamber of the main frame, the grinding roller swings outward and presses closely upon the grinding ring due to the centrifugal force generated by the rotation of the main shaft. The blade carries materials to the space between the grinding roller and grinding ring, and materials are ground as the grinding roller rolls. After being ground, the powder is selected by classifier via the cycle wind of the blower and the rough powder will be back to the grinding chamber for regrinding. The qualified powder is brought into the powder collector together with airflow. The powder comes out as end products while the airflow goes back to the powder collector in cycling to make the machine work normally. The remained airflow comes out after purification by dust filter.
Technical Parameter:
Model | Roller Number(pcs) | Mill Roll Size (R*Hmm) | Size and Height of Grinding Ring(mm) | Maximum Feed Length(mm) | Product Granularity (mm) | Capacity(t/h) | Motor Power(kw) |
3R1510 | 3 | 150*100 | 480*100 | 15 | 0.2-0.044 | 0.3-1 | 7.5 |
3R2615 | 3 | 260*150 | 780*150 | 20 | 0.2-0.044 | 1-1.5 | 18.5 |
3R2715 | 3 | 270*150 | 830*150 | 20 | 0.2-0.044 | 1-3 | 22 |
3R3016 | 3 | 300*160 | 880*160 | 20 | 0.2-0.044 | 1-4 | 30 |
3R3018 | 3 | 300*180 | 990*180 | 20 | 0.2-0.044 | 3-5 | 30 |
4R3216 | 4 | 320*160 | 1073*160 | 25 | 0.2-0.044 | 2-6 | 37 |
4R3220 | 4 | 320*200 | 1075*200 | 25 | 0.2-0.044 | 2-7 | 37 |
5R4119 | 5 | 410*190 | 1300*190 | 35 | 0.2-0.044 | 2-8.5 | 75 |
5R4121 | 5 | 410*210 | 1300*210 | 35 | 0.2-0.044 | 3-9 | 75 |
5R4125 | 5 | 410*250 | 1300*250 | 35 | 0.2-0.044 | 5-10 | 75 |
6R4528 | 6 | 450*280 | 1600*280 | 40 | 0.2-0.044 | 3-16 | 132 |
Company Profile
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
