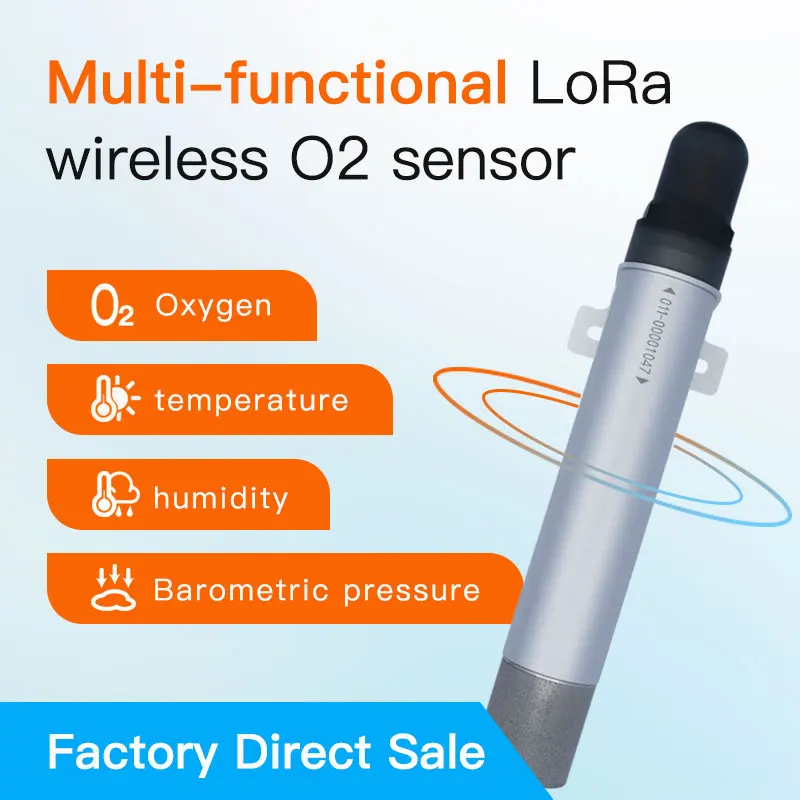

Help CenterThingsend 4 in 1 Lora Wireless Oxygen Sensor for Oxygen Humidity Temperature Pressure Monitoring
Related Products
-
Iot Lora Long Range Remote Control Wireless Door Magnetic Contact Sensor for Security Door Window Entry Alarm Iot Lora Long Range Remote Control Wireless Door Magnetic Contact Sensor for Security Door Window Entry Alarm Iot Lora Long Range Remote ControlUS$ 18 - 25MOQ: 1 Piece -
Smart Agriculture IOT LoRa Wireless CO2 Sensor With Temperature Humidity MonitoringUS$ 100MOQ: 1 Piece
-
LoRa Agriculture Sensor 3-in-1 Wireless Temperature Humidity and Carbon Dioxide Sensor for Greenhouse CO2 MonitoringUS$ 100MOQ: 1 Piece
-
DS18B20 Probe Lora Wireless Temperature SensorUS$ 30 - 40MOQ: 1 Piece
-
Lora Wireless Temperature and Humidity SensorUS$ 38 - 42MOQ: 1 Piece
Welcome to our store,we're manufacturer of wireless sensors and wireless transceivers.Please feel free to contact Mrs.Sarah Yuan:WhatsApp +86 18820739215/sarah@thingsend.com
1.Features
Track Oxygen(0-25%)
Track Temperature (-40°C to 80°C)
Track Humidity (0 - 100%RH）
Barometric pressure Range (500 -1200mbar)
Fluorescence-based optical technology
Battery operated,and battery can be replaced by user,place it anywhere
LoRa Wireless transmission distance is more than 5KM in open field(No obstacles)
Receive alarm sound and email alert
Set high-low threshold value for alert
Monitors /alerts battery levels
Monitors /alerts if wireless signal lost
Unlimited history of readings for 6 months
Monitor every 240 mins default,5-240mins can be changed by user
Free software
Alert multiple users
One concentrator can work with more than 100pcs sensors.
LED light on when taking readings
Requires 1pc AA lithium batteries (included)
Manufacturing,support OEM/ODM service
2.Operation process
XZ-DS02-O2A switch to different modes according to using way：
Sleeping mode：Sensor no work, no transmission, and sleeping with low consumption
Starting mode：Light sensing triggering，
Trigger 3 times continuously within 10S，after triggering successfully at the 3rd time
Red light fast blinks 3 times, start successfully.
（Triggering way: hand holds light-sensitive part 1～2S，
loosen and red light blinks once）
Notice：Dark light canrsquot trigger ，pls use lens hood under hard light
Triggering mode：trigger once，detect sensor and send signal,
Detection transmitting cycle of sensor can be set.
Normal Mode：periodically detect sensor and send signal
3.Technical Parameters
4.Various Concentrators/Gateways for Choosing
5.Free Software for Monitoring
Using the browser to configure the remote IP, port or domain name, local IP or dynamic IP; one can use our company's Galaxy platform software, which can provide CS stand-alone version and BS cloud service version; we can also provide communication protocol and users build their own platforms.
6. Data Protocol
Example：GW_ID:12345,TYPE:CO2,ID:1,STAT:11000000,CO2: 500ppm, T:14.5℃,H:36.3%, ST:5M,
V:3.66v,SN:2,RSSI:-79dBm,E:160.2020,N:110.2020,Time:2018-2-4 14:20:39
Explanation：
7.Dimension：
