Smart Agriculture IOT LoRa Wireless CO2 Sensor With Temperature Humidity Monitoring

Smart Agriculture IOT LoRa Wireless CO2 Sensor With Temperature Humidity Monitoring photo-1

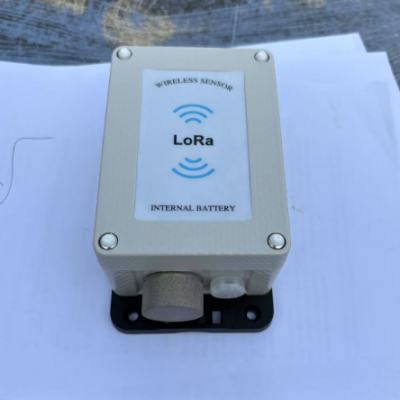

Smart Agriculture IOT LoRa Wireless CO2 Sensor With Temperature Humidity Monitoring photo-2

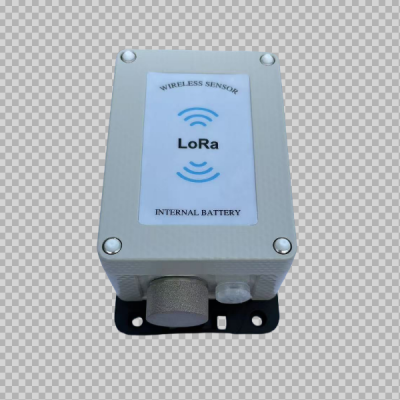

Smart Agriculture IOT LoRa Wireless CO2 Sensor With Temperature Humidity Monitoring photo-3
US$ 100 ≥1 Piece
Key Specifications
Get Latest Price
Customized:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Customized Customized
Welcome to our store,we're manufacturer of wireless sensors and wireless transceivers.Please feel free to contact Mrs.Sarah Yuan:WhatsApp +86 18820739215/sarah@thingsend.comProduct Introduction

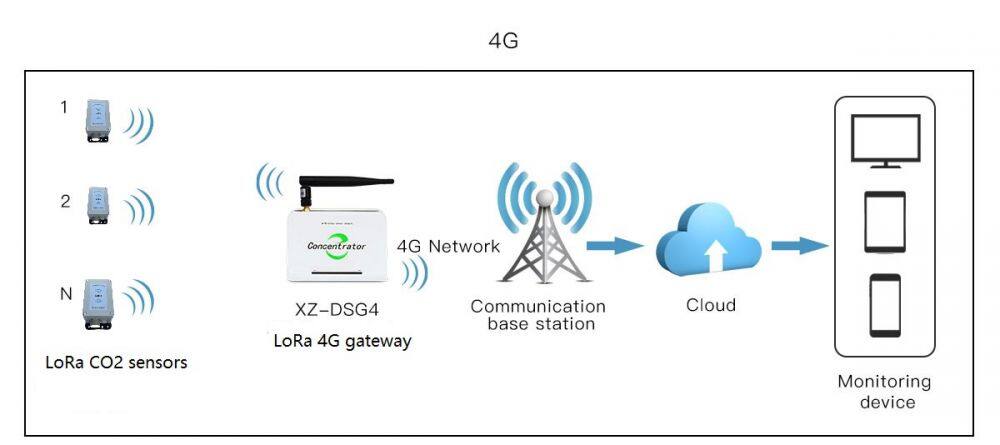

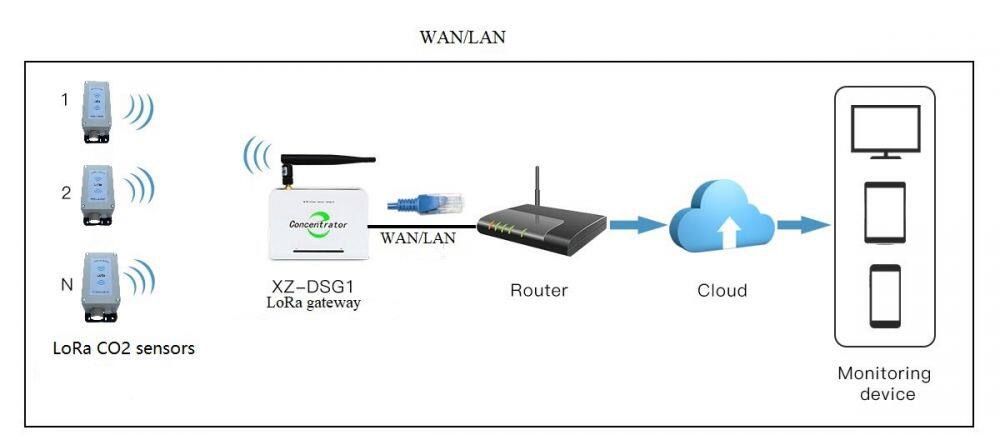

3-in-1 lora wireless carbon dioxide sensor is a high quality wireless temperature humidity and CO2 measuring instrument.It consists of CO2 sensor,temperature and humidity sensor, signal processing circuit, lora communication module and battery.Working with our lora wireless gateway can realize remote temperature and humidity data acquisition. Lora wireless gateway sends data to a third party data acquisition equipment by using USB serial/Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors.
Product Features
♦High quality and high accuracy
♦Large battery works up for 2 years,and battery can be replaced by user
♦Wireless transmission distance between receiver and sensor maximum up to 5km
♦Multiple application environments
♦One lora gateway can work with more than 100pcs sensors.
♦Manufacturing,support OEM/ODM service
Specification
CO2 range1
400-2000PPM
CO2 Accuracy1
±(50ppm + 5% of reading)
CO2 range2
400-5000ppm
CO2 Accuracy2
±(40ppm + 5% of reading)
CO2 range3
0-25vol%
CO2 Accuracy3
0.5 vol% +3% measured value
CO2 range4
0-100vol%
CO2 Accuracy4
1vol% +3% measured value
Temperature range
-40~65℃
Temperature accuracy
Humidity range
0-100%
Humidity accuracy
±3.5%(90%)
Working Frequency
433MHz /480MHz /868MHz /915MHz /925MHz customized
Acquisition cycle
5~240mins settable by user(30mins default)
Power supply
3.6V Li-SOCI2 battery, replaceable
Transmission Distance
5KM Line of sight
Transmit Power
Receive Sensitivity
<-136dBm
Transmit Current
Receive Current
<20mA
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols and API for your to build your own platform.
Gateway Choice
