Easy to Operate Leak And Seal Strength Testing Instrument ASTM D3078 Leak Tester for Seal Packaging

•


• USES AND METHOD

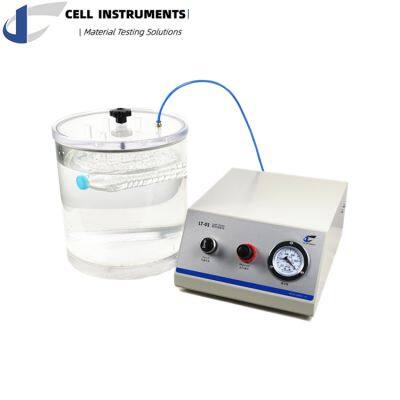

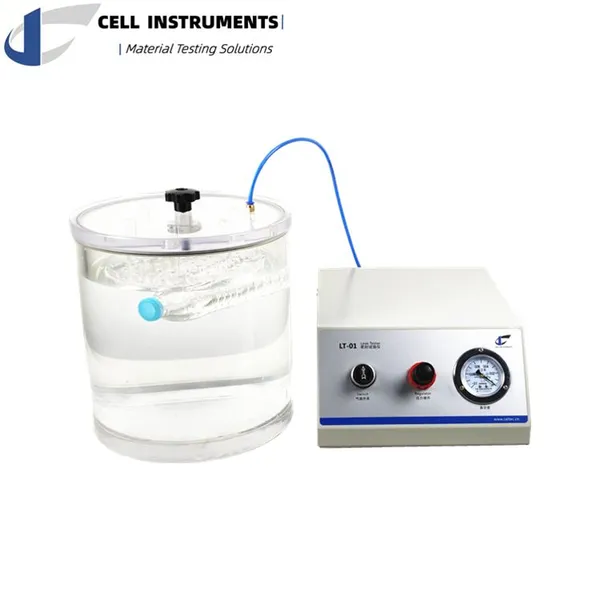

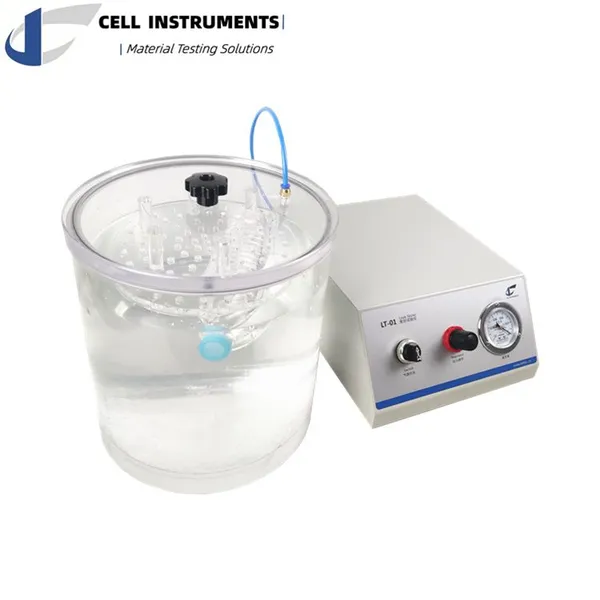

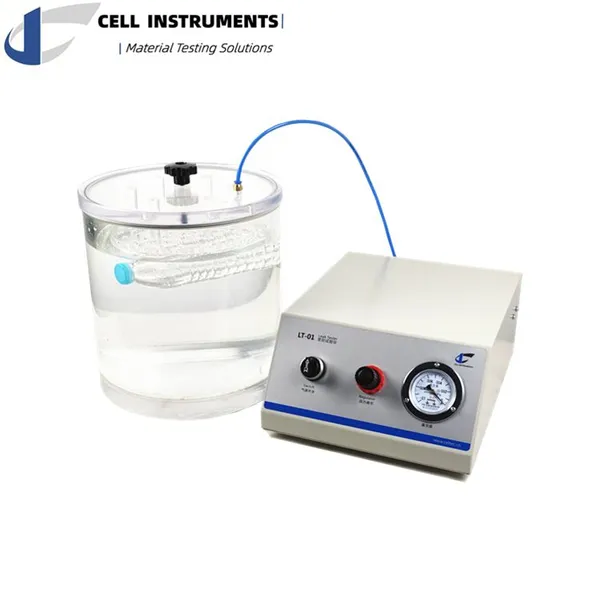

LT-01 is an economical manually operated vacuum leak tester. It’s also designed by ASTM D3078 standard test method for determination of leaks in flexible packaging by bubble emission.

Equipped with the control unit and a standard test chamber with usable space of 270 φ*210mm H, it is suitable for seal integrity tests for various package forms used in food, pharmaceutical, medical, stationery, cosmetics, packaging sectors, etc.

A test sample is placed into this chamber filled with water and the air is drawn out to a controlled level of vacuum. Thus a pressure difference is created inside and outside the sample. The gross leaks can be checked and tracked by eye, when the sample is expanded.

Features

The leak test system requires no electricity

High leak test efficiency

Extra-thick PMMA

Different chamber sizes available

No calibration needed

No vacuum pump required

Easy installation, start-up and operation

Low maintenance

TECHNICAL DATE

Vacuum: 0~-90KPa

Vacuum chamber size: Φ270 mm x 210 mm (H)  ( Customization available)

Gas source: 0.7 MPa Compressed air to be prepared by user

STANDARS

ASTM D3078 , ASTM F1585, GB/T 15171
