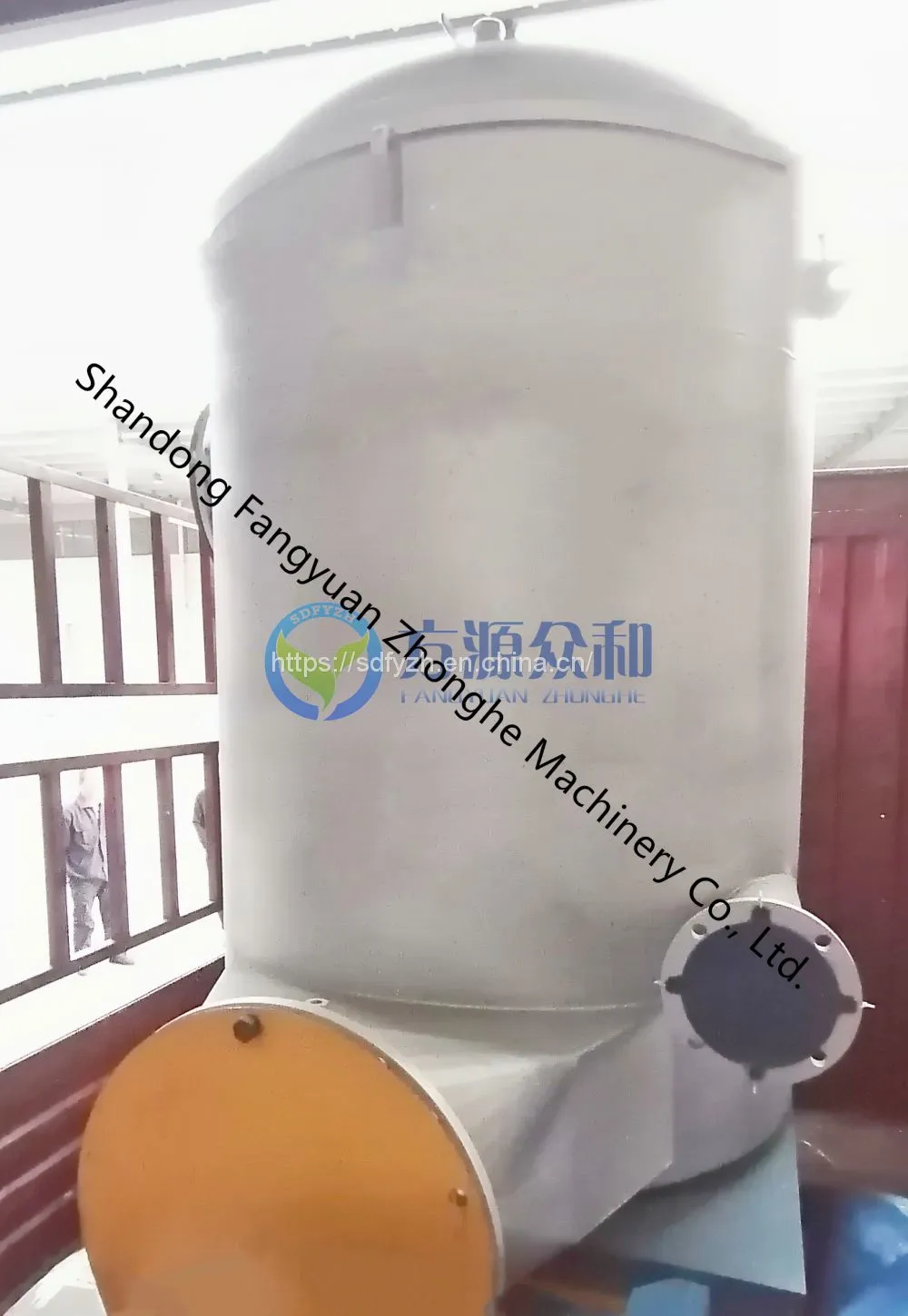

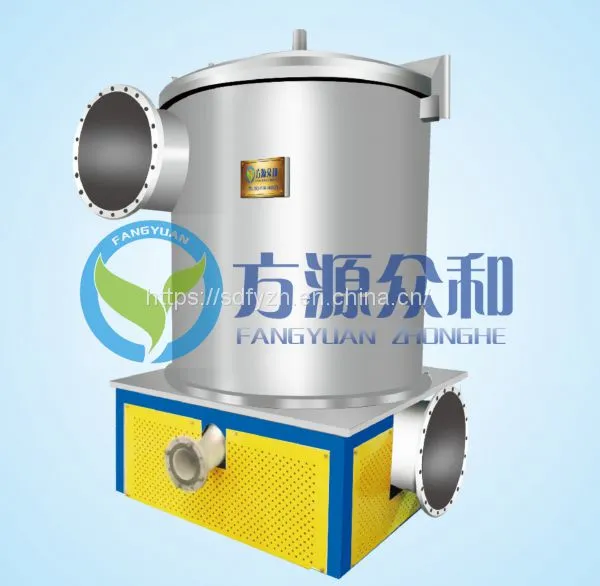

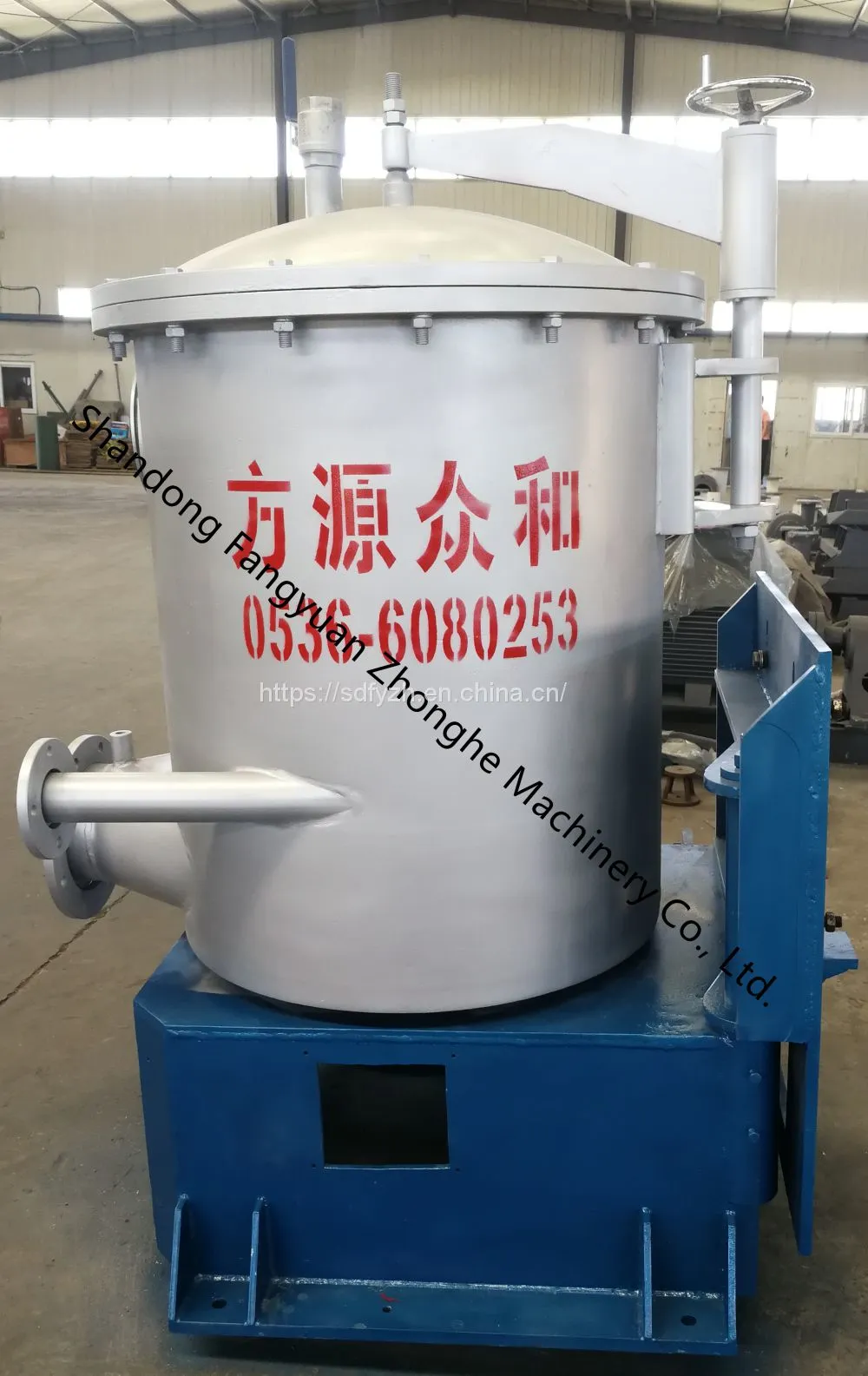

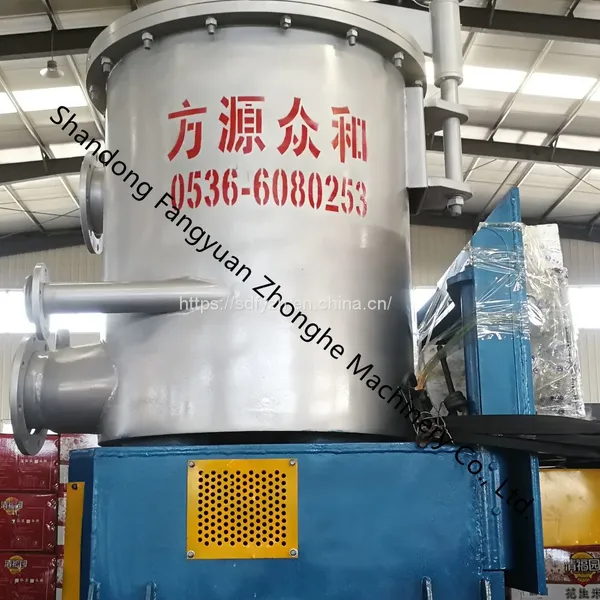

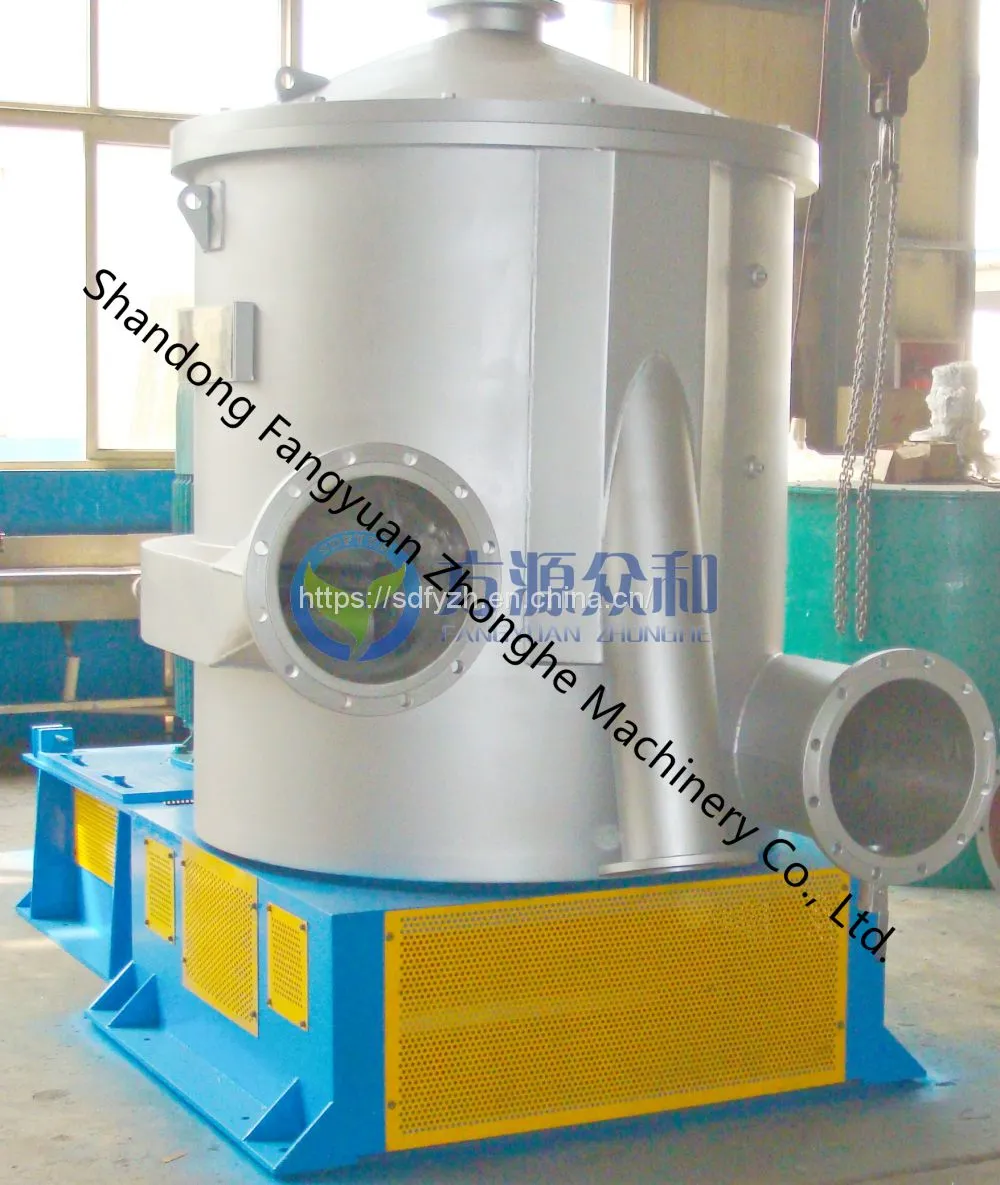

Pressure Screen with Inflow Type for Papermaking Mill
- 15 Set / Sets per Month
- Qingdao Port
- T/T L/C
- 30 days
- Water Treatment Equipment Automatic Quartz Sand Filter
- Automatic Pulp Molding Tissue Paper Machine
- High Performance Double DISC Refiner for Paper Pulp Making Machine
- DAF Equipment Dissolved Air Flotation of Oil Water Separator
- Wastewater Treatment Plant Circular Dissolved Air Flotation
- Flanged propeller for slurry box agitator for pulping equipment
Product Details
Brand Name: | Fangyuan Zhonghe | Place of Origin: | China | Model Number: | FNY |
Certification: | CE/ISO:9001 | Type: | Pulping Equipment | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 1-5T | Dimension(L*W*H): | As per model |
Condition: | New | Voltage: | 380-415V/50-60HZ | Power(W): | As per model |
Computerized: | No |
Product Description
Product Description
The Inflow Type Pressure Screen is mainly used for screening in the pulp and paper making industry, it can also be used as the selection of the pulping system.
The product is made of stainless steel sieve drum, and all parts and components in contact with the slurry are made of stainless steel material and polished to prevent fiber winding. The rotor is mostly a multi-rotor structure, and the rotor material is specially treated stainless steel, evenly distributed on the outside of the sieve drum. It has the characteristics of high screening efficiency, high volume, low pulse, long service life, compact structure, easy maintenance and so on.
Model | FNY~0.6 | FNY~1.2 | FNY~1.5 | FNY~2.0 | FNY~2.5 | FNY~3.0 | FNY~3.5 | FNY~4.0 | |
Screening area(m2) | 0.6 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | |
Diameter of screen hole(mm) | φ1.2~2 | ||||||||
Diameter of screen seam(mm) | 20.15~0.55 | ||||||||
Pressure of inflow pulp(Mpa) | 0.1~0.25 | ||||||||
Screening concentration(%) | Pulp making0.5~1.5 Before mesh0.3~0.8 | ||||||||
Production capacity(t/d) | 8φ1.2~2 Hole | 25~50 | 60~90 | 75~110 | 90~150 | 100~180 | 120~210 | 180~270 | 250~400 |
0.15~0.55 Seam | 15-40 | 30-90 | 40-110 | 55~150 | 70~160 | 90~200 | 110~250 | 140~350 | |
Matching motor(KW) | 11~22 | 22~37 | 37~45 | 45~55 | 55~75 | 75~90 | 90~110 | 110~132 |
NOTE: Production capacity is as a reference value. The size is related to difference of operation pressure, concentration of inflow pulp, fiber state, proportion of slag, dimension of opening hole.
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as Inflow Type Pressure Screen, sewage treatment equipment and crescent type tissue paper machine, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The Inflow Type Pressure Screen manufacutred by our factory were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
With the rapid development of the national economy and the requirement of the sustainable development and harmonious development, environmental protection is playing a more and more important role. China's environmental protection industry is facing unprecedented opportunities for development. To improve the living environment of mankind and write a brilliant chapter of Chinese environmental protection industry, we will make unremitting efforts and have succeeded in carrying out an assignment. Our company warmly welcomes friends and business colleagues all over the world to come and guide us in creating a better future for environmental protection.
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
Q2. How to install the Inflow Type Pressure Screen?
A: We can give you guide by video, voice, email and all kinds of chatting APP
If there's still doubt, we can arrange the professinal engineer to install in your country
Q3. How do you pack the Inflow Type Pressure Screen?
A: Normally as the export standard or as your needs
Q4. What is your available port of shipment?
A: Qingdao port, etc.
Q5. Do you offer guarantee for the Inflow Type Pressure Screen?
A: Yes, under the right condition, we can offer time warranty for our products
