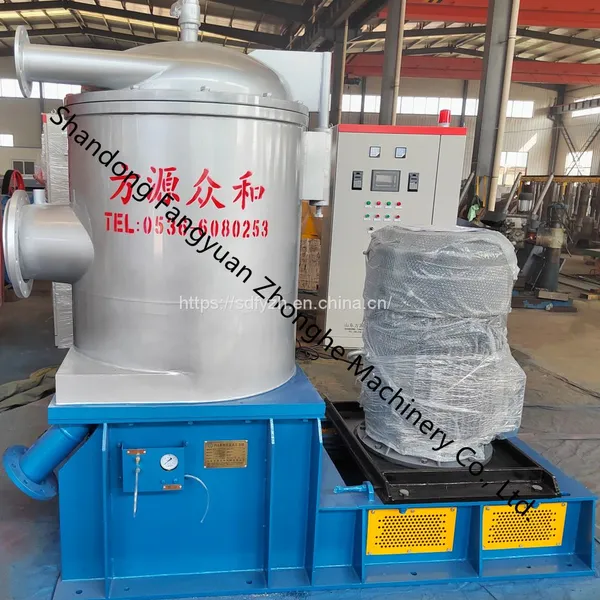

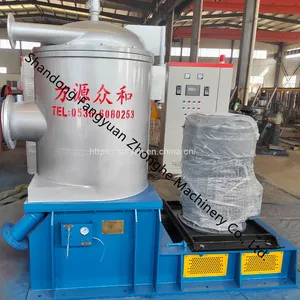

Help CenterPaper Pulping Equipment Pressure Screen for Recycling Waste Paper
Related Products
-
Pressure Screen for Toilet Paper Tissue Paper Making MillUS$ 5000 - 30000MOQ: 1 Set -
Pulping Equipment Pressure Screen / Paper Pulping MachineUS$ 5000 - 30000MOQ: 1 Set
-
Paper Pulp Machinery Pressure Screen for Recycling Waste PaperUS$ 5000 - 30000MOQ: 1 Set
-
China Upflow Pressure Screen for Papermaking Stock PreparationUS$ 5000 - 30000MOQ: 1 Set
-
Upflow Pressure Screen for Pulping Paper Machine LineUS$ 5000 - 30000MOQ: 1 Set

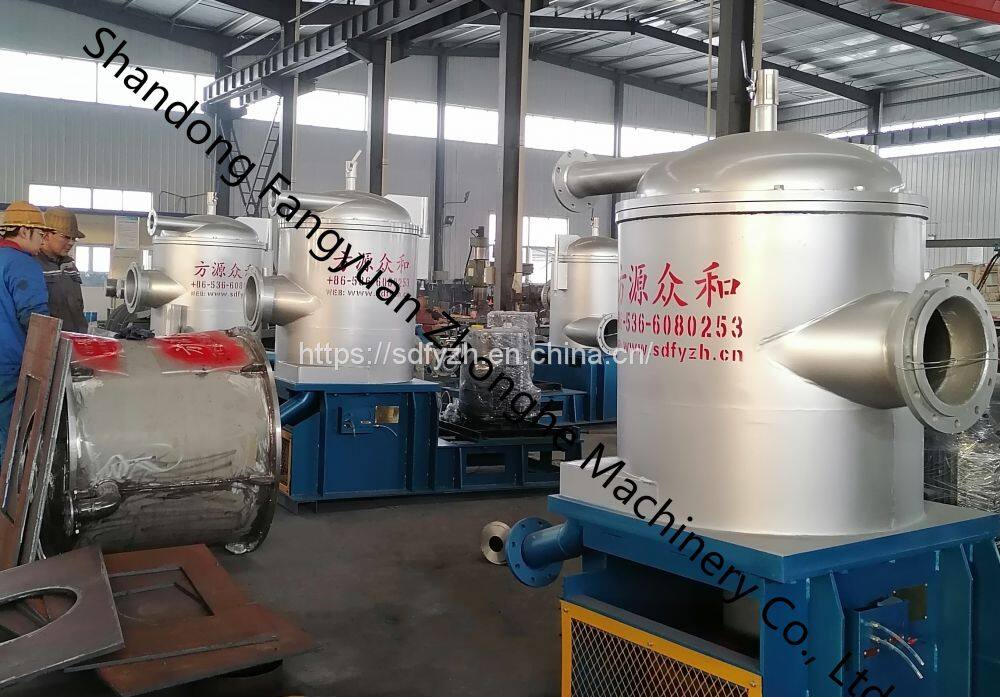

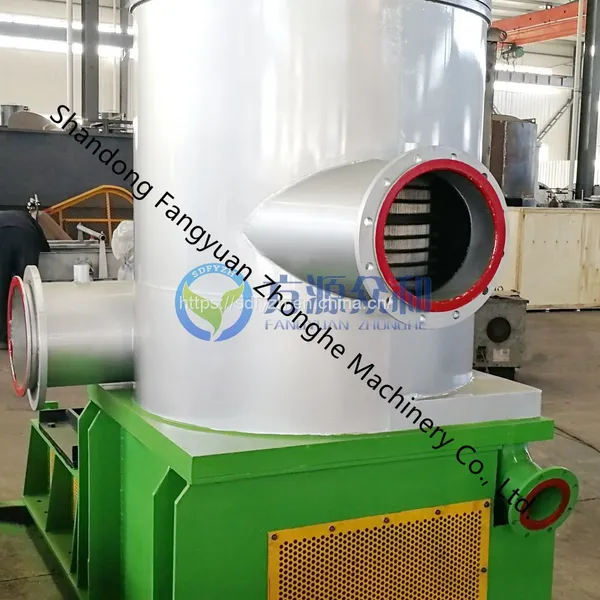

FLS Upflow Pressure Screen is a new type of recycled pulp screening equipment, which is developed by our company based on the import of the imported prototype and reference to the development and design of advanced technical data from foreign countries. The equipment is designed as a upflow structure for the characteristics of the impurities in the recycled pulp. It can be widely used in the screening of the coarse sieves, fine sieves and paper machines of various waste pulp. It has incomparable good working performance and reliability, so it is an updated replacement product for various domestic pressure sieves used in regenerated pulp treatment.
FLS UPFLOW PRESSURE SCREEN(FINE SCREENING)
Model | FLS0.3 | FLS0.5 | FLS0.8 | FLS1.2 | FLS2.0 | FLS3.0 | FLS4.0 | FLS5.0 |
Dimension of sieve seam(mm) | 0.15-0.45 | |||||||
Screening area(m2) | 0.3 | 0.5 | 0.8 | 1.2 | 2.0 | 3.0 | 4.0 | 5.0 |
Concentration of inflowt&output pulp(%) | 0.8-2.0 | |||||||
Power of motor(KW) | 15 | 22 | 30 | 45 | 75 | 132 | 185 | 315 |
Production capacity(T/D) | 10-20 | 20-30 | 25-50 | 40-80 | 70-140 | 120-200 | 150-400 | 200-600 |
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as FLS Upflow Pressure Screen, sewage treatment equipment and crescent type tissue paper machine, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The FLS Upflow Pressure Screen manufacutred by our factory were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of p for more than 20 years of experience
Q2. How to install the FLS Upflow Pressure Screen?
A: We can give you guide by video, voice, email and all kinds chatting APP
If there's still doubt, we can arrange the professinal engineer to install in your country
Q3. How do you pack the FLS Upflow Pressure Screen?
A: Normally as the export standard or as your needs
Q4. What is your available port of shipment?
A: Qingdao port, etc.
Q5. Do you offer guarantee for the FLS Upflow Pressure Screen?
A: Yes, under the right condition, we can offer time warranty for our products.
