STAINLESS STEEL CRANK SHAFT BRASS TURNING PART MILLING MACHINED PARTS

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port NINGBO
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

It Is Processed By Star Dual-Spindle CNC Centering Machine. The Spindle First Uses Tungsten-Carbide Twist Drill To Process The Bottom Hole, And Then Uses A Boring Cutter To Finish The Inner Hole. Then Use A Roughing Cutter With A 60 °R0.4 Corner To Process The Rough Outer Diameter, And Then Use A Fine Turning Tool With 35 ° R0.2 Corner To Finish The Outer Diameter To Process The V-Shaped Groove, And Then Use A 90 ° Truning Tool To Process The Mesh. Use The D10.0 Tungsten Steel Milling Cutter To Mill The H13 Hexagon, And Then Use The 35° Precision Turning Tool To Remove The Burr After Machining The Hexagon, And Then Use The Tungsten-Carbide Center Drill, The Tungsten Steel Bit To Process The Threaded Bottom Hole, And Then Use The M2.5 Tap To Process The Side Thread. For The Auxiliary Axis, We Use The Tungsten Steel Drill To Process The Bottom Hole, The Boring Cutter To Process The Rough Inner Hole, The Boring Cutter To Finish The Inner Hole And The End Face, Then Use The D4.0 Milling Cutter To Process The Inner Hexagon.

We Can Customize All Kinds Of Brass Turning Parts And Precision Turning Parts According To Customer's Requirements. The Delivery Is Fast And The Sample Delivery Time Is As Fast As 3 Days. After A Long Time Production, We Have All Kinds Of Machining Accessories. Basically, We Do Not Need To Reorder The Chuck And Tool Tapping Drill Etc. For Ordinary Brass Parts, We Can Directly Change The Machine To Complete The Production. The Product Is One Of Our Representative Brass Turning Parts, Stainless Steel Turning Parts With Thread, Step And Milling Hexagonal Edge.

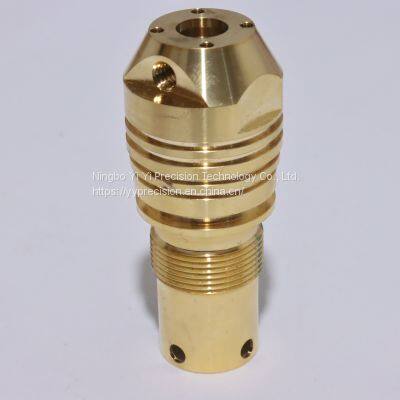

The Large-Sized Turned Part In The Picture Is 21 Od, H13 Hexagonal Opposite Side, 80mm Long, Deep Hole Inside, Knurling Position On The Machine Again To Reduce Time And Cost, Side Thread Is M2.5.

Material：	C3604	Side Hole Thread Size：	M2.5
Size：	Outer Diameter 21mm*Length 75mm	Weight:	90g
Thread Size:	M8	Color:	Natural
