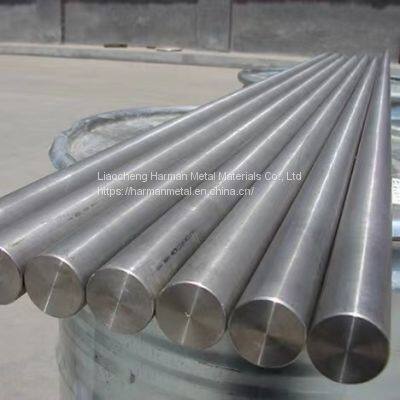

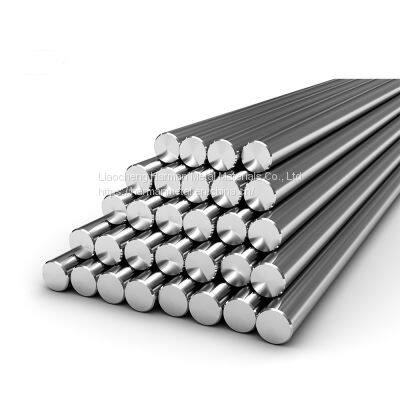

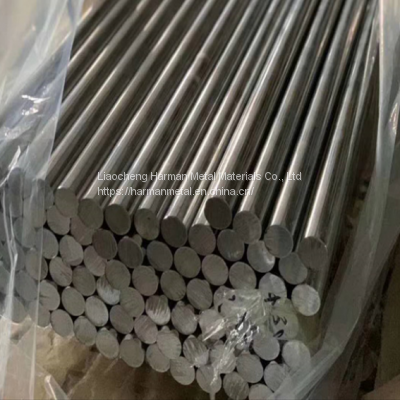

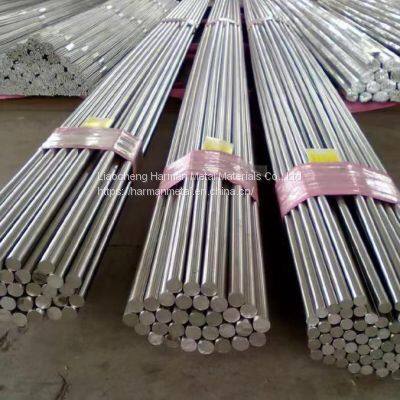

20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar

20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar thumbnail-1
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar thumbnail-2
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar thumbnail-3
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar thumbnail-4
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar thumbnail-5
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar photo-1
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar photo-2
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar photo-3
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar photo-4
20mm HastelloyC-22 Hastelloy C-276 Steel Round Bar photo-5
US$ 20 - 40 MOQ: 300 Kilograms
Key Specifications
Get Latest Price
Brand Name:
harman
Place of Origin:
China
Model Number:
super duplex stainless steel
Contact Supplier Request Quote Chat Now
Liaocheng Harman Metal Materials Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name harman
Place of Origin China
Model Number super duplex stainless steel
Type Nickel Bar
Application Steam and Gas Turbine,Industry,Construction,petroleum,ch
Grade 400 Series
Powder Or Not Not Powder


Product Parameter :

HastelloyC-276 Material introduction

HastelloyC-276（UNS N10276/W.Nr.2.4819）The alloy has excellent corrosion resistance to most corrosive media in oxidation and reduction states. Excellent resistance to spot corrosion, crevice corrosion and stress corrosion cracking. The alloy is suitable for various chemical process industries containing oxidizing and reducing media. The higher content of molybdenum and chromium makes the alloy resistant to chloride ions, and tungsten further improves its corrosion resistance. Hastelloy C-276 is one of the only materials that can resist the corrosion of moist chlorine, hypochlorite and chlorine dioxide solution. The alloy has significant corrosion resistance to high concentration chloride solution (such as ferric chloride and copper chloride).


HastelloyC-276 chemical composition

alloy

%

nickel

chromium

molybdenum

iron

tungsten

cobalt

carbon

manganese

silicon

vanadium

phosphorus

sulfur

C276

minimum

allowance

14.5

15

4

3

-

-

-

-

-

-

-

maximum

16.5

17

7

4.5

2.5

0.01

1

0.08

0.35

0.04

0.03


HastelloyC-276 Physical and mechanical properties


density

melting point

8.9g/cm3

1325-1370℃



varieties

Heat treatment method

tensile strength
σb/MPa

yield strength
σp0.2/MPa

Elongation
δ5%

Shrinkage

Ψ/%

Brinell hardness

HBS

Rolled bar and forged bar

Solution+aging

930

-

20

40

255-321

Cold drawn rod

Solution+aging

900

590

15

20

248-341


HastelloyC-276 Heat treatment process

1.HastelloyC-276 The daily solution treatment temperature range is 1100℃-1160℃.

2.The cooling method is water quenching. The materials with thickness less than 1.5mm can also be cooled by rapid air cooling. If air cooling is adopted, it shall be cooled from 1000 ℃ to 600℃.

3.During heat treatment, the work must be kept clean.


Product Tags: Hastelloy C-276 , HastelloyC-22 , steel round bar
