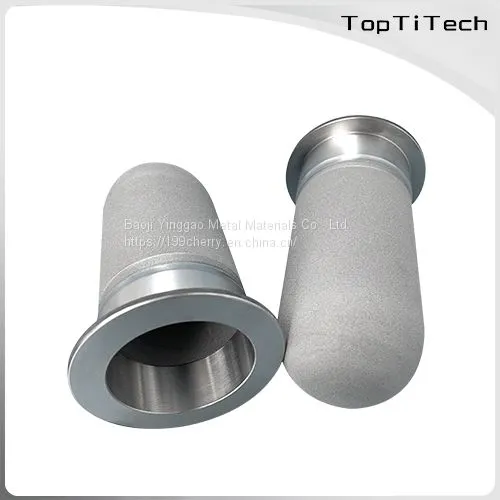

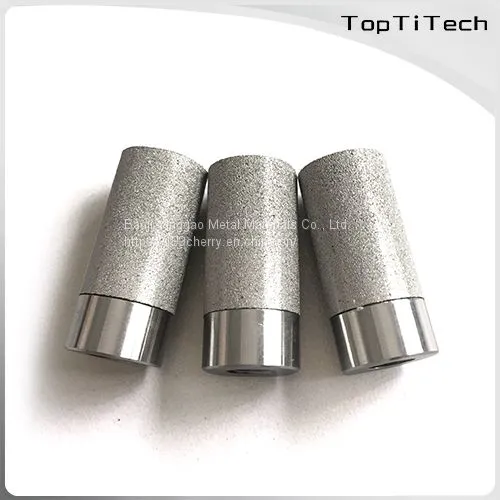

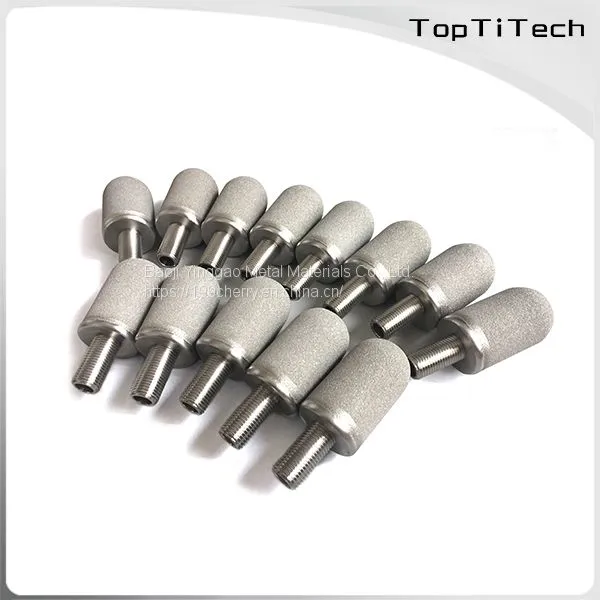

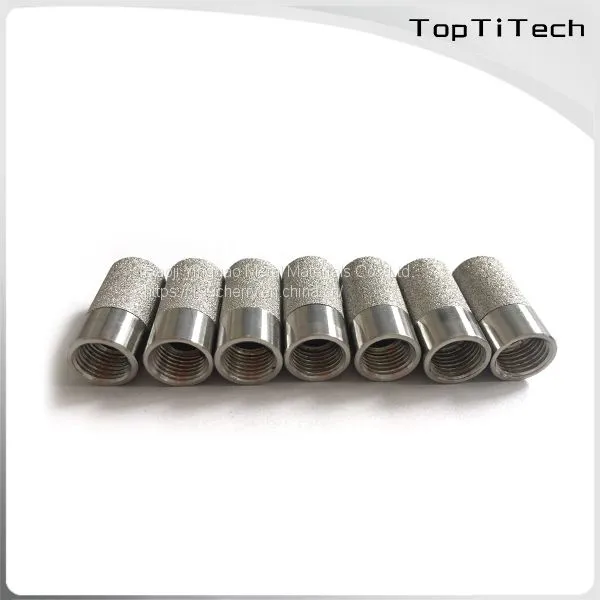

Help Center5microns Porous Stainless Steel Filter Air Diffuser
Related Products
-
Sintered 5 Layers Stainless Steel Wire Mesh FilterUS$ 5 - 100MOQ: 1 Piece -
20 Inch Metal sintered powder filter cartridgeUS$ 5 - 100MOQ: 1 Piece
-
Porous Stainless Steel Filter for Bubble StoneUS$ 5 - 100MOQ: 1 Piece
-
Wave Stainless Steel Wire Mesh Filter Cartridges CleanableUS$ 5 - 100MOQ: 1 Piece
-
Sintered Stainless Steel Sparger For Bioreactor Systems Diffusion StoneUS$ 5 - 100MOQ: 1 Piece
Stainless steel filters are a type of porous metal filter made from industrial metal powder, typically 304 or 316L. The raw material undergoes cold isostatic pressing before being sintered at high temperature and high vacuum conditions. This process results in a filter element with numerous micropores that are curved, criss-crossed, and highly precise, allowing for precise and deep-level filtration through pressurization.
Porous stainless steel filters are highly versatile and widely used in various industries due to their exceptional thermal, chemical, and corrosion resistance. These filters are fabricated by compressing and sintering stainless steel powder to create a porous structure with uniform pore size and distribution. They are widely used in gas and liquid filtration applications, providing efficient and reliable separation of contaminants from the fluid stream.
Features
Uniform pore size and distribution: Porous stainless steel filters have a uniform pore size and distribution, which allows for efficient and reliable separation of particles and contaminants from the fluid stream.
High porosity: The high porosity of porous stainless steel filters provides a large surface area for filtration, enhancing the filtration efficiency and reducing pressure drop.
High thermal stability: Porous stainless steel filters have excellent thermal stability, making them suitable for high-temperature applications.
Chemical and corrosion resistance: Stainless steel is highly resistant to chemical and corrosive environments, making porous stainless steel filters suitable for use in harsh chemical and industrial environments.
Specifications
Pore size: 0.1-100 microns
Porosity: 30%-40%
Thickness: 0.5-5.0mm
Material: Stainless steel 304, 316, or customized
Applications
Filtration: Porous stainless steel filters are widely used in gas and liquid filtration applications, such as air filtration, water treatment, and oil filtration. They are effective in removing contaminants, particles, and impurities from the fluid stream.
Catalysis: Porous stainless steel filters are used as catalyst supports in various catalytic reactions, such as hydrogenation, dehydrogenation, and oxidation. They provide a large surface area for the active catalyst, enhancing the catalytic activity and selectivity.
Gas diffusion: Porous stainless steel filters are used as gas diffusion materials in fuel cells, electrolyzers, and other electrochemical devices. They provide efficient gas transport and distribution, enhancing the performance and efficiency of the devices.
Fluidization: Porous stainless steel filters are used in fluidized bed reactors for gas-solid or liquid-solid reactions. They provide a stable and uniform fluidized bed, enhancing mass transfer and reaction efficiency.
