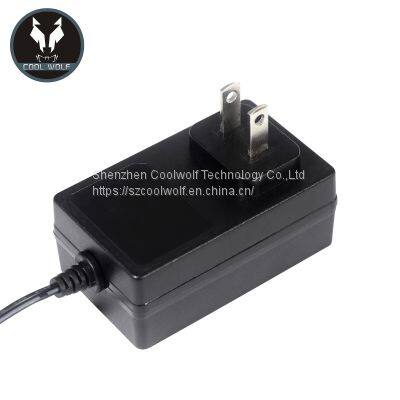

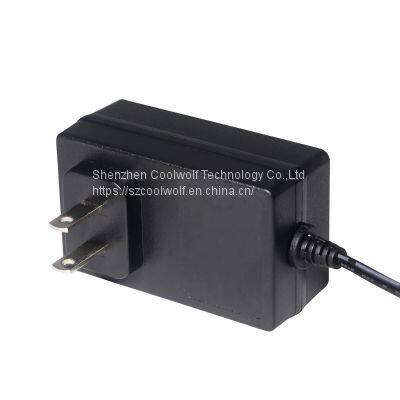

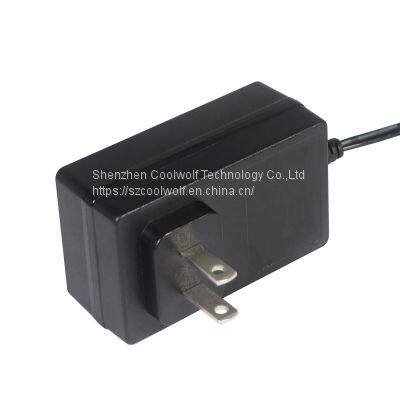

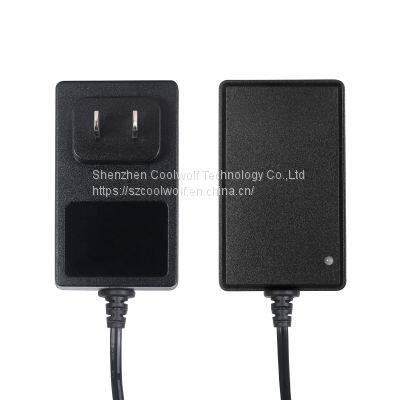

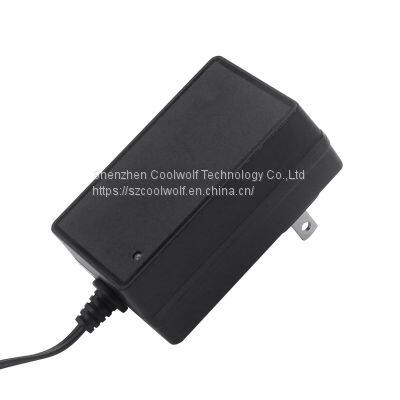

Help CenterUS Plug En/IEC 60335 ETL Certified 4.2V 6V AC DC Power Adapter 12.6V 14.5V Switching Power Supply 8.4V 16.8V Rechargeable Battery Charger
Related Products
-
US Plug ETL FCC UL1310 Certified 4.2V 6V 8.4V AC Adapter 12.6V 14.5V Lithium Ion Battery ChargerUS$ 2 - 4.2MOQ: 500 Units -
Us Plug IEC/En 60601 ETL Certified Wall Mount 24V1A Switching Power Supply 36V 9V Medical Grade Chargers 12V 2A 3A 4A AC DC AdapterUS$ 7.5 - 9.8MOQ: 500 Units
-
1a1c Output Us Plug 20W Fast Power Adapter 5V 3A, 9V 2.22A USB Transformer 12V 1.67A Type C Mobile Phone PD ChargerUS$ 4 - 6.5MOQ: 500 Units
-
12V0.5A AC Adapter With EU Plug,UKCA,GS,CE, UL, ETL, FCC,PSE Approval, VI Efficiency, 5V0.5A,5V1A,5V1.5A,5V2.4A,12V1A Power AdapterUS$ 2.5 - 4.2MOQ: 500 Units
-
24V2A AC Adapter With US Plug,UKCA,GS,CE,UL,ETL,PSE,KC,SAA Approval, VI Efficiency,12V4A 12V4.5A 12V5A 19V3.42A 24V2.5A 24V3A 48V1A Power AdapterUS$ 6.5 - 9.5MOQ: 500 Units
1, AC input power suitable for the world.
2, DOE/CEC/ERP VI Level.
3, Over voltage, over current, short circuit and over load protection.
4, Small size and light weight.
5, Per pieces adapter is 100% full load -burn in test (4 hours).
6, All the products have passed the full load test process aging.
7, Low interference & noise.
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, ETL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
Input | 100 to 240V AC , 50 / 60Hz |
Regular Output | 6V 3A(7.2V 3A), 8.4V 3A, 12V 1.5A(14.4V 1.5A), 12.6V 1.5A, 12.6V 2A, 16.8V 1.5A , 21V 1A, 21V 1.2A and others... |
| Output Range | 6V~24V / 0.8A~3.0A |
| Charge Mode | CC (Pre-charge)--CC (Bulk)--CV--Cut off |
| Charge status | Green on standby, Red on charging, Red turn green on full charge. |
Protection | Overload protection |
Output over voltage protection | |
Short circuit protection | |
Certificate | GS CE ROSH CB UL cUL FCC KC PSE SAA |
Efficiency | Level VI |
Power plug | EU / US / JP / UK / AU and Others for your selection |
Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
Operating Temperature Range | 0--40°C |
Storage Temperature Range | -20 --- 85°C |
High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
MTBF | 30,000 hours |
Application | Li-ion Battery Pack, Li-polymer Battery Pack, Lead Acid Battery Pack, Lifepo4 Battery Pack, Ni-Cd/Ni-Mh Battery Pack, UAV, LED Flash Light, Heated Gloves, Power Tool, Medical Cars System, RC Car, RC Toys, E-bike, RC Plane, Diving Light, POS machine terminal, Forklift, Golf cart, Self-balanced car, Monocycle etc. |
Packing | PE bag + Carton or White Box + Carton or As your Request |
