Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Us Plug IEC/En 60601 ETL Certified Wall Mount 24V1A Switching Power Supply 36V 9V Medical Grade Chargers 12V 2A 3A 4A AC DC Adapter

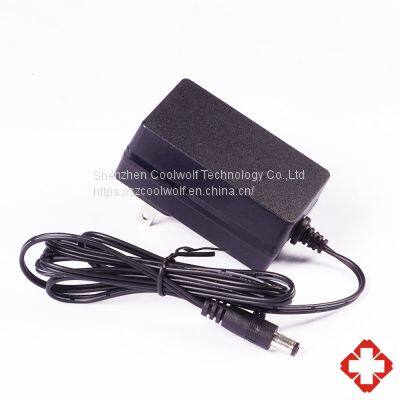

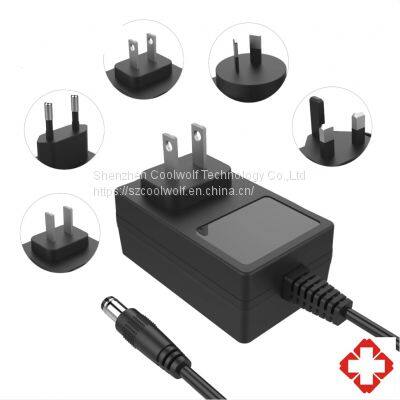

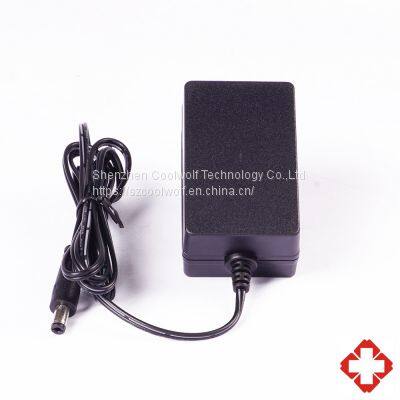

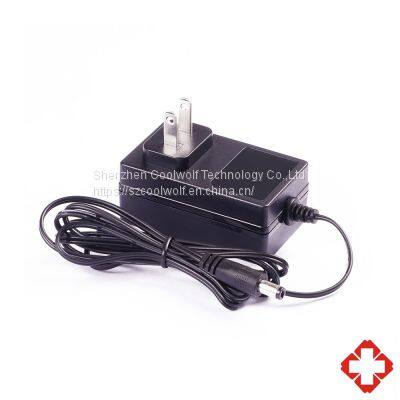

Us Plug IEC/En 60601 ETL Certified Wall Mount 24V1A Switching Power Supply 36V 9V Medical Grade Chargers 12V 2A 3A 4A AC DC Adapter
US$ 7.5 - 9.8
MOQ: 500 Units
Key Specifications
Get Latest Price
Brand Name:
COOLWOLF
Place of Origin:
China
Model Number:
CW036-1203000
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
15 days
Related Products
-
1a1c Output Us Plug 20W Fast Power Adapter 5V 3A, 9V 2.22A USB Transformer 12V 1.67A Type C Mobile Phone PD ChargerUS$ 4 - 6.5MOQ: 500 Units -
12V0.5A AC Adapter With EU Plug,UKCA,GS,CE, UL, ETL, FCC,PSE Approval, VI Efficiency, 5V0.5A,5V1A,5V1.5A,5V2.4A,12V1A Power AdapterUS$ 2.5 - 4.2MOQ: 500 Units
-
24V2A AC Adapter With US Plug,UKCA,GS,CE,UL,ETL,PSE,KC,SAA Approval, VI Efficiency,12V4A 12V4.5A 12V5A 19V3.42A 24V2.5A 24V3A 48V1A Power AdapterUS$ 6.5 - 9.5MOQ: 500 Units
-
24V3A AC DC Adapter 12V4A,12V4.5A,12V5A,12V6A,15V4A,19V3.42A,20V3A,24V2.5A,48V1.5A Switching Power Supply With Interchangeable PlugsUS$ 9.5 - 12MOQ: 500 Units
-
24V3A AC Adapter With EU Plug,UKCA,GS,CE,UL,ETL,PSE,KC,SAA Approval, VI Efficiency,12V4A 12V4.5A 12V5A 19V3.42A 24V2.5A 24V3A 48V1A 48V1.5A Power AdapterUS$ 9.5 - 12MOQ: 500 Units
Brand Name
COOLWOLF
Place of Origin
China
Model Number
CW036-1203000
Connection
Plug In
Output Type
DC
Features:
• 100-240VAC Universal Input
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W (VI)
• MTBF > 100,000 hours
Product Specification:
•Power range: 15~36W
•Universal AC input 100 to 240 VAC
•Frequency: 50 to 60Hz
•AC plug:U: USA, E: EU, K: UK, A:SAA
•Output voltage available from 5 to 48 VDC
•Safety: UL/cUL UL60601, TUV EN60601,CB 60601, CE, FCC
•All models meet RoHS and WEEE
• AC Plug: U: USA, E: EU, K: UK, A: SAA, C: China
• Weight: 200g
Application:
For Diagnostic equipment and systems
For Therapy equipment and systems
For Monitoring and display
For Home patient care
For Surgical devices
For Medical printers
For Biolife science
For X-ray
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| EM1024AR | 16W | 5-8V | 0A | 2.0A | ±5% | ±1% | 100mV |
| EM1024BR | 20W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| EM1024CR | 18W | 5-8V | 0A | 4.0A | ±5% | ±1% | 100mV |
| EM1024DR | 24W | 9-11V | 0A | 1.5A | ±5% | ±1% | 250mV |
| EM1024ER | 27W | 9-11V | 0A | 2.0A | ±5% | ±1% | 250mV |
| EM1024FR | 20W | 9-11V | 0A | 3.0A | ±5% | ±1% | 250mV |
| EM1024GR | 30W | 12-17V | 0A | 1.66A | ±5% | ±1% | 250mV |
| EM1024HR | 24W | 12-17V | 0A | 2.5A | ±5% | ±1% | 250mV |
| EM1024JR | 30W | 18-24V | 0A | 1.33A | ±5% | ±1% | 350mV |
| EM1024KR | 30W | 18-24V | 0A | 1.66A | ±5% | ±1% | 350mV |
| EM1024MR | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 480mV |
| EM1024NR | 30W | 36-48V | 0A | 0.83A | ±5% | ±1% | 480mV |
| EM1024PR | 36W | 12V | 0A | 3.0A | ±5% | ±1% | 250mV |
| EM1024QR | 24W | 12V | 0A | 2.0A | ±5% | ±1% | 250mV |
| EM1024RR | 36W | 24V | 0A | 1.5A | ±5% | ±1% | 350mV |
