Underwater Zero Buoyancy Antisolvent Ozone Resistance

Watertight shielded network cables exceeding Category 5 Applicable scenarios:

Watertight super Category 5 shielded network cable is used in a variety of complex underwater environment, the cable has good waterproof solution performance, the use of multi-strand pure copper wire stranded super Category 5 network cable, 8 core 4 groups of twisted-double shield series. In view of its special flexible structure design, it is suitable for installation under free continuous reciprocating motion without strong stress slow release or forced guidance, especially in frequent bending occasions under industrial environment, which need to shield information transmission and monitoring without difference and signal stability, and can effectively resist electromagnetic wave interference.

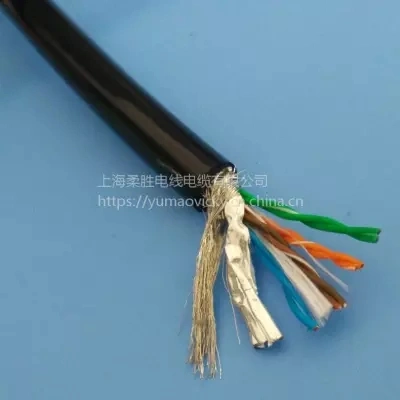

Watertight Type 5 shielded network cable structure

Conductor material: multiple strands of pure oxygen free bare copper wire stranded

Conductor structure: 7/0.19(±0.004)mm

Insulation material: HDPE(high density polyethylene)

Average insulation thickness: 0.20mm

Thin insulation point: 0.17mm

Insulation outer diameter: 0.95±0.05mm

Insulation color: (orange white, orange) (green white, green) (blue white, blue) (brown white, brown)

Sheath material: elastomer/polyurethane material

Electrical characteristics of watertight Class 5 Shielded Network Cable:

Operating temperature: Rated temperature: -20℃~+80℃

Specially made polyurethane outer sheathed underwater network cable applicable temperature: -55℃ to 120℃

Bending life more than 3 million times

Bending radius: The bending radius of the underwater network cable can be up to 5*D

Watertight Class 5 Shielded Network Cable Features:

High flexibility, oil proof, UV resistance, tear resistance, waterproof, cold resistance, anti-interference, flame retardant;

Easy wiring, high cable utilization rate, long transmission distance, good transmission effect, differential transmission anti-interference ability;

Bending resistance of more than 3 million times (customized underwater network cable bending resistance can be higher), suitable for fast moving occasions.
