18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor

Yueqing Hantu Electric Co.,ltd
18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor thumbnail-1
18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor thumbnail-2
18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor thumbnail-3
18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor thumbnail-4
18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor thumbnail-5
18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor photo-1

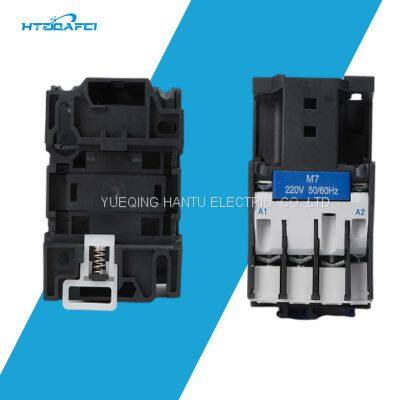

18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor photo-2

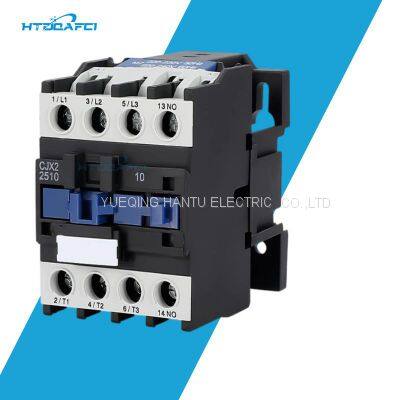

18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor photo-3

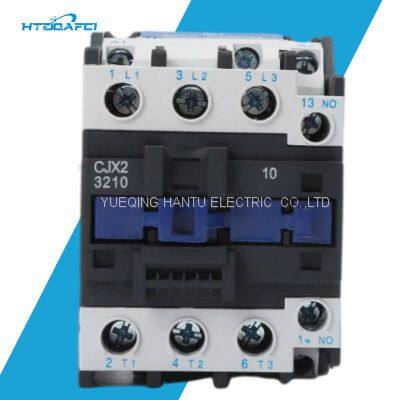

18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor photo-4

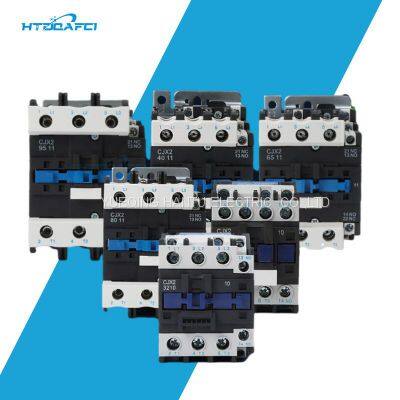

18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor photo-5
US$ 10 - 60 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
CJX2
Main Circuit Rating Current:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
WENZHOU
Delivery Detail:
202212 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number CJX2
Main Circuit Rating Current Other
Main Circuit Rating Voltage 380v
Phase 3
Number of Pole 3
Electricity Type AC

Product Name: AC contactor

Product model: CJX2 (lc1d)

Main contact: three-phase normally open

Auxiliary contact: 0910 (1 normally open), 1801 (1 normally closed)

Current: 9a

Coil voltage: 220V / 380V / 110V / 24V / 36V / 48V

Frequency: 50Hz

Installation method: track installation


Action Particularity
Coil voltage: 50Hz, 110V, 127V, 220V, 380V, 440V.
Pull-in voltage:  85%~110% Us
Release voltage: 20%~75% Us

Specification:

TypeCJX2-09CJX2-12CJX2-25CJX2-32CJX2-40CJX2-50CJX2-65CJX2-80CJX2-95
Rated working
current (A)		AC3
AC4
9
3.5

12
5

25
8.5

32
12

40
18.5

50
24

65
25
 		80
32		95
45
Standard Power rating of 3-phase motors 50/60Hz in Category AC-3380V
440V
660/690V		4
4
5.5		5.5
5.5
7.5		11
11
15		15
15
18.5		18.5
22
30		22
30
33		30
37
37		37
41
45		45
45
45
Rated heat current (A)20204050608080125125
Electrical life(X 104)AC3
AC4		200
20		200
20-15		200
20-7		200
15-7		200
10-7		200
7		160
7-6		160
7-5		160
7-5
Mechanical life (X 104)200020002000200020002000200010001000
Number of contacts3P+NO                      3P+NC+NO





18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor



18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor

18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor18A 3p+1no/1nc Rail Installation LC1d Cjx2- 0910 1 Normally Open Contact Normally Closed Contactors AC Contactor
Q1. Are you trade company or factory ?

We are factory have license to export overseas.



Q2 . What's your delivery time ?

The lead time for sample order is 7-10 days . For formal order lead time is 10 days ,15days or 25 days to different quantity.

 Q3.What 's your normal packing

Our normal packing is inner box and out carton box . We also customize clients packing if the quantity is acceptable .
Q4.Could you offer OEM and ODM?

Yes , of course . If your quantity is acceptable , we can offer OEM or ODM .We have a strong R&D team.

 Q5. What 's your payment term?

We usually accept T/T 30% in advance, balance70%T/T before ship. For other payment terms such as Paypal , Cash ,L/C, Credit card are negotiable.

 Q6.When can I get the quotation ?

We usually quote you within 24 hours after we get your inquiry . If you are very urgent to get quotation . Please call us or send email to push so that we could regard your inquiry priority.

Q 7. What's your minimum quantity?

Our usual minimum quantity is at least 1000 USD per order. But for first business we accept sample order for quality test .

Q8. Can you help select suitable products?

 Sure , please send us inquiry and tell us your demand ,we will have professional team to support you in model selection.

Q9.Quality assurance.

We promise in 1year if any quality problem we can help solve or replace.




Product Tags: contactor , maganetic contactor , AC contactors , cjx2 contactor , lc1-d contactors , dc contactors
