Wholesell 4p B Type RCCB Htl1-63 Detect High Frequency AC and Smotth DC Earth Residual Currents
- 100 Piece / Pieces per Month
- WENZHOU
- T/T Credit Card PayPal Cash
- 202212 days
Product Details
Brand Name: | HTDQAFCI | Place of Origin: | China | Model Number: | HTL1-63 |
Poles Number: | 4 |
Product Description

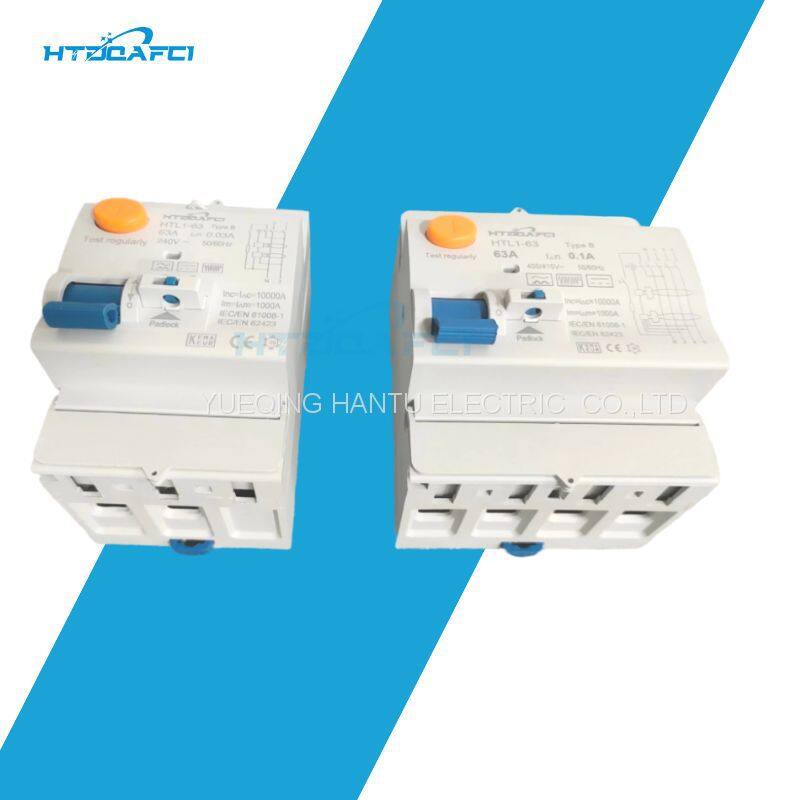

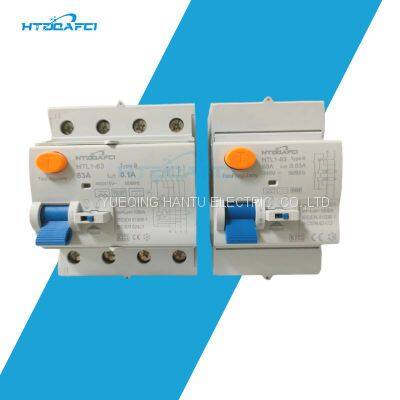

B type RCCB HTL1-63 Application

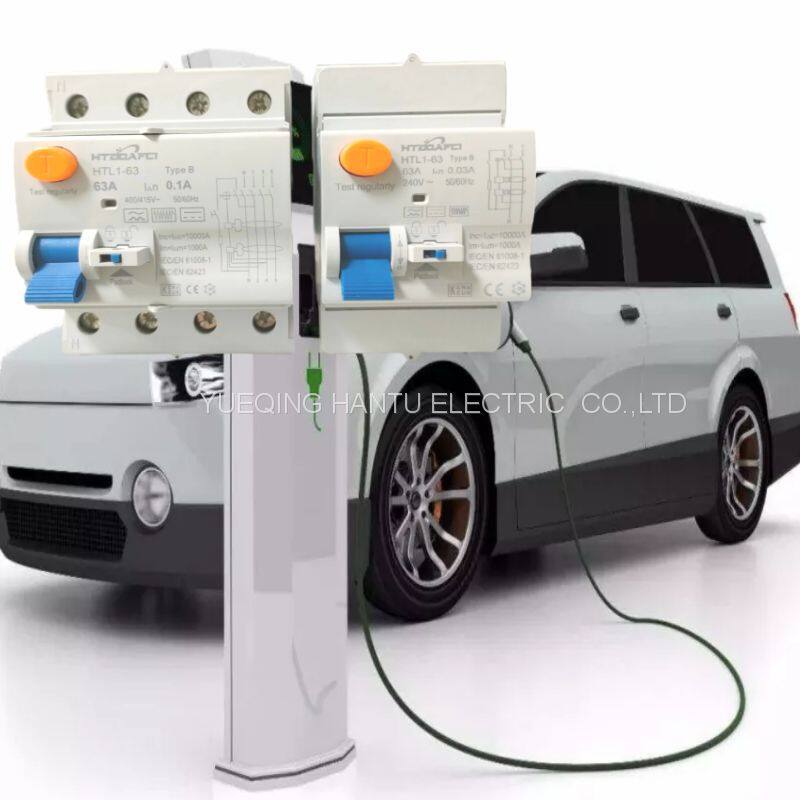

B type RCCB use for protect inverters for PV installations ,speed control in HVAC ,some running machines ,UPS , medical equipmen and charge pole for electic vehiches etc,this B type RCCB in addition to standard 50Hz earth leakage currents ,smooth DC and high frequency AC residual current can't detected by AC or A type RCCB , B type RCCB makes up for this defect.
B type RCCB was design accorcding to standard IEC/EN61008 and IEC/EN62423.In addition to normal AC ,B type RCCB also can detect high frequency AC and smotth DC earth residual currents . So it is names as " universal current-sensitive RCCB", which means it could be used for the widest variety of applications ,these are always also designed for use under harsh ambient conditions.
Brand Name | HTDQAFCI, |
Color | White |
Rated Voltage | 230V |
Supply Capacity | 20000pcs/Month |
OEM ODM | OEM ODM |
Standard | IEC61009 |
Rated Frequency | 50/60HZ |
Material | PA66 |
Poles Number | 2 |
Rated voltage Un | 240/415V,50/60Hz |
Rated current | 25,40,63A |
Rated residual operating | 30,100,300mA,functionally |
Behaviour to ponents | B type |

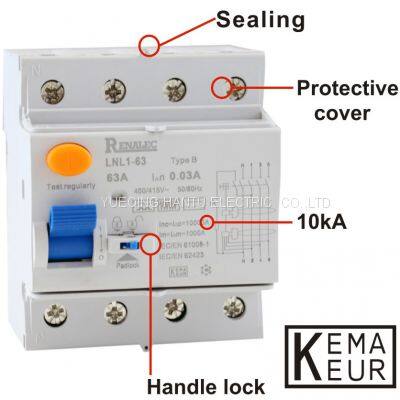

Rated short circuit strength Inc | 10kA |
Electro-mechanical endurance | =4,000 operating cycles |
Mounting | Din rail |
Degree of protection | IP20 |
Upper and lower terminals | open mounted/lift terminals |
Tripping temperature | -25ºC~+40ºC |
Size | 45 L*72w*77 h (4M) |
Terminal protection | finger and hand touch safe |
