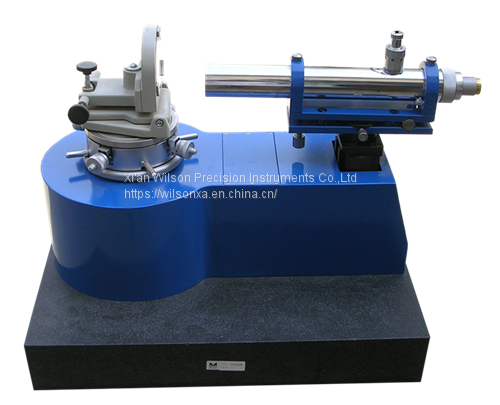

China high-precision optical angle measurement goniometer for prisms, polygons and wedges
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Wilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Wilson JD series angle measurement device adopts stable grating encoder and never wear out air float structure to delivers ±0.3″accuracy.
Measuring Functions:
It can be used for laser gyro for high-precision navigation, polyhedral scanning mirror measurement in remote sensing and telemetry; high-precision optical prisms in large-screen projection displays, high-precision optical prism measurement for various optical guidance, and many optical and mechanical parts processing fields that have strict requirements on angles.
In addition to the direct measurement of the angle of the polished surface of optical-grade mechanical parts, many indicators involved in optical measurement can be obtained directly from the measurement of the angle. For example, the color refractive index of glass materials.
Main Features:
● High accuracy - the accuracy of angle measurement can reach ±0.3″.
● Long life - the spindle adopts air-floating structure, which keeps the accuracy for a long time and never wears out.
● The reading system adopts imported high-precision grating encoder.
● High accuracy and stability of grating inscription.
● The aiming system adopts the self-collimator which detects the signal by image sensor, with high precision.
● Field of view is displayed on the computer display, easy to adjust, fast measurement speed, no eye fatigue.
● Precision rotating fine adjustment mechanism, two-axis tiltable table.
● Angle digital display device with RS32 USB interface.
Product Parameter
Item/Product Model | JD-100L | JD-100H | JD-100H+ | JD-200L | JD-200H | JD-200H+ |
Measuring accuracy | ±1.5″ | ±1″ | ±0.5″ | ±1.5″ | ±1″ | ±0.5″ |
Worktable diameter | 150 | 150 | 150 | 200 | 200 | 200 |
Main axis accuracy | ±0.025μm | ±0.015μm | ±0.03μm | ±0.02μm | ||
Load capacity | 15kg | 40kg | ||||
