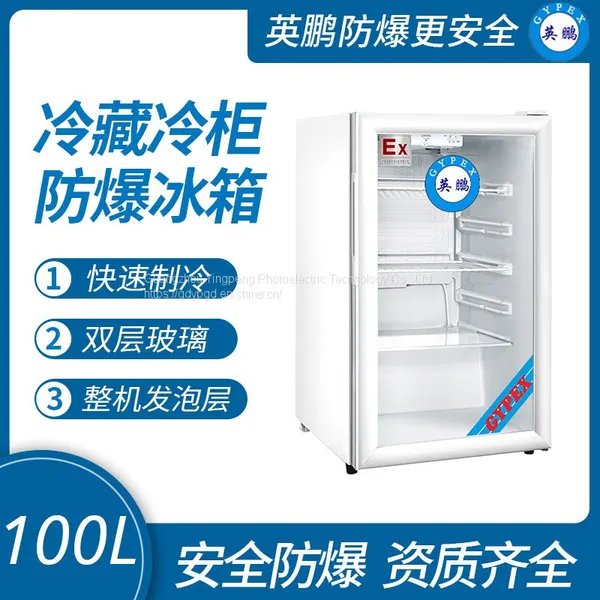

Guangzhou Yingpeng Explosion Proof Refrigerator - Vertical Refrigerator

Brand: Yingpeng

Model: BL-200LC100L

Volume: 100L

Operating temperature ℃: 0 ℃~10 ℃

Power (W): 95

Power consumption (kW · h/24h): 0.81

Refrigerant: R600a

Weight (kg): 25

External dimensions (mm): 480 * 525 * 840

Explosion proof grade: ExdibmbIICT4Gb

Main parameters of explosion-proof refrigerated cabinets

brand

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

model

BL-200LC100L

BL-200LC200L

BL-200LC250L

BL-200LC300L

BL-200LC370L

BL-200LC400L

Volume (including mechanical room) L

one hundred

two hundred

two hundred and fifty

three hundred

three hundred and seventy

four hundred

Operating temperature ℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

Power (W)

ninety-five

one hundred and fifty-three

one hundred and sixty-five

one hundred and ninety-eight

two hundred and fifty

two hundred and twenty-five

Power consumption (kW · h/24h)

zero point eight one

one point three four

one point five nine

one point eight four

two point two three

two point five three

cryogen

R600a

R600a

R600a

R600a

R600a

R290

Weight (kg)

twenty-five

fifty-two

sixty-three

sixty-six

seventy-three

ninety-three

Overall dimensions (mm)

480*525*840

570*535*1750

570*555*1900

610*595*1980

610*663*2010

995*550*1965

Explosion proof level

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

Main parameters of explosion-proof refrigerated cabinets

brand

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

model

BL-200LC680L

BL-200LC900L

BL-200LC1100L

BL-200LC1200L

BL-200LC1800L

BL-200LC2400L

Volume (including mechanical room) L

six hundred and eighty

nine hundred

one thousand and one hundred

one thousand and two hundred

one thousand and eight hundred

two thousand and four hundred

Operating temperature ℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

Power (W)

four hundred and eighty

five hundred and fifty

six hundred and fifty

six hundred and fifty

eight hundred

one thousand two hundred and fifty

Power consumption (kW · h/24h)

three point eight one

four point four eight

six point one two

five point three two

nine point seven nine

ten point six two

cryogen

R290

R290

R290

R290

R290

R290

Weight (kg)

one hundred and four

one hundred and twenty-one

one hundred and forty-seven

one hundred and eighty-two

two hundred and eighty

three hundred and twenty-six

Overall dimensions (mm)

1080*615*2120

1220*685*2120

1510*685*2120

1250*745*2135

1860*745*2135

2480*745*2135

Explosion proof level

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

Applicable scope:

1. This product is suitable for explosive environments such as petrochemicals, laboratories, metallurgy, textiles, food, bioengineering, pharmaceuticals, warehouses, aerospace engineering, and places with temperature control requirements;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.

It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, pharmaceutical, aerospace, laboratory, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.

The entire machine adopts ultra weak current technology to isolate intrinsically safe circuits. After process manufacturing and explosion-proof treatment, the design and manufacturing of the product strictly follow relevant standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

The product surface adopts surface temperature limit protection technology, comprehensive anti-static technology, and various safety protection technologies;
