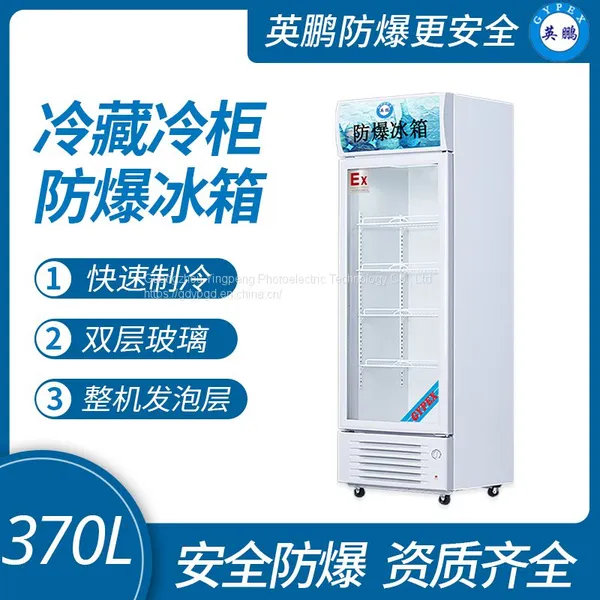

Guangzhou Yingpeng Explosion-proof Refrigerator - Vertical Single Door

Brand: Yingpeng

Model: BL-200LC370L

Volume: 370L

Operating temperature ℃: 0 ℃~10 ℃

Power (W): 250

Power consumption (kW · h/24h): 2.23

Refrigerant: R600a

Weight (kg): 73

Boundary dimension (mm): 610 * 663 * 2010

Explosion proof grade: ExdibmbIICT4Gb

Main parameters of explosion-proof refrigerated cabinets

brand

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

model

BL-200LC100L

BL-200LC200L

BL-200LC250L

BL-200LC300L

BL-200LC370L

BL-200LC400L

Volume (including mechanical room) L

one hundred

two hundred

two hundred and fifty

three hundred

three hundred and seventy

four hundred

Operating temperature ℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

Power (W)

ninety-five

one hundred and fifty-three

one hundred and sixty-five

one hundred and ninety-eight

two hundred and fifty

two hundred and twenty-five

Power consumption (kW · h/24h)

zero point eight one

one point three four

one point five nine

one point eight four

two point two three

two point five three

cryogen

R600a

R600a

R600a

R600a

R600a

R290

Weight (kg)

twenty-five

fifty-two

sixty-three

sixty-six

seventy-three

ninety-three

Overall dimensions (mm)

480*525*840

570*535*1750

570*555*1900

610*595*1980

610*663*2010

995*550*1965

Explosion proof level

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

Main parameters of explosion-proof refrigerated cabinets

brand

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

model

BL-200LC680L

BL-200LC900L

BL-200LC1100L

BL-200LC1200L

BL-200LC1800L

BL-200LC2400L

Volume (including mechanical room) L

six hundred and eighty

nine hundred

one thousand and one hundred

one thousand and two hundred

one thousand and eight hundred

two thousand and four hundred

Operating temperature ℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

0℃~10℃

Power (W)

four hundred and eighty

five hundred and fifty

six hundred and fifty

six hundred and fifty

eight hundred

one thousand two hundred and fifty

Power consumption (kW · h/24h)

three point eight one

four point four eight

six point one two

five point three two

nine point seven nine

ten point six two

cryogen

R290

R290

R290

R290

R290

R290

Weight (kg)

one hundred and four

one hundred and twenty-one

one hundred and forty-seven

one hundred and eighty-two

two hundred and eighty

three hundred and twenty-six

Overall dimensions (mm)

1080*615*2120

1220*685*2120

1510*685*2120

1250*745*2135

1860*745*2135

2480*745*2135

Explosion proof level

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

ExdibmbIICT4Gb

Product Description:

1. Hollow glass design, good insulation performance, efficient anti fog, and excellent display effect

2. Ultra thick foam layer with insulation effect, high-efficiency thick precision insulation layer, enhancing insulation effect

3. Universal wheel design for easy and lightweight movement

4. Famous brand compressor, efficient refrigeration, low noise, low power consumption, stable performance

5. Built in energy-saving light tube, constantly showcasing the effect

6. Adjustable shelf, with adjustable height, making food storage more convenient.

Product features of Yingpeng explosion-proof refrigerator

Explosion proof refrigerators, also known as explosion-proof refrigerators, are mainly used in fields such as petroleum, chemical engineering, scientific research, laboratories, etc. They are used to cool and store drugs, reagents, and other volatile, flammable, and explosive hazardous materials that are not easily stored at room temperature. According to its structure, it can be divided into single door, double door, and multi door, as well as horizontal and vertical types. It consists of a refrigeration compressor, condenser, condenser fan, evaporator, and temperature controller. To ensure its safe use in hazardous locations, we also use composite explosion-proof technology to explosion-proof the refrigerator. The compressor and condensing fan are treated with sealing or explosion-proof technology, and the temperature controller serves as a passive switch and an explosion-proof active optocoupler solid-state relay to form an intrinsically safe temperature automatic control system. To protect the compressor from damage, time-delay explosion-proof solid-state relays, overload protection and thermal protection devices are used, and some control appliances are treated with explosion-proof insulation. To prevent the harm caused by static electricity, conductive paint is sprayed on the inner chamber of the refrigerator to eliminate static electricity effects and make it safer to use

Safer and more reliable use; Set up a closed inner liner with high safety factor; Adopting forced air cooling, rotating fan for circulating cooling, with dedicated fuse protection, and refrigerator designed with internal grounding protection

Applicable scope:

1. This product is suitable for explosive environments such as petrochemicals, laboratories, metallurgy, textiles, food, bioengineering, pharmaceuticals, warehouses, aerospace engineering, and places with temperature control requirements;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.

It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, pharmaceutical, aerospace, laboratory, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.

The entire machine adopts ultra weak current technology to isolate intrinsically safe circuits. After process manufacturing and explosion-proof treatment, the design and manufacturing of the product strictly follow relevant standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

The product surface adopts surface temperature limit protection technology, comprehensive anti-static technology, and various safety protection technologies;
