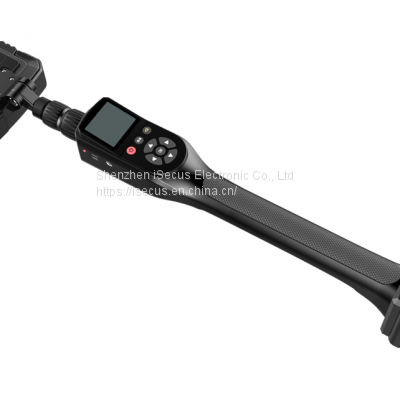

iSecus DT-830 is a new type of thermal imaging non-linear junction detector, which integrates the functions of thermal imaging and non-linear junction detector. It can detect electronic devices hidden in walls, floors, ceilings, lamps, furniture or containers, as well as judge the appearance of hidden electronic products, so as to facilitate rapid and accurate judgement by inspectors and improve the efficiency of security inspection. By means of thermal image display, vibration and sound prompt, the detectors can quickly lock the hidden target.
Application scenario
It can be widely used in government, public security, prison, justice, army, education examination, business security and personal privacy protection, etc.
Business Safety: Detecting unauthorized electronic devices, such as eavesdroppers, mobile phones and devices with SIM cards, hidden in company board rooms or secret offices;
Public Safety: Detecting electronic devices hidden or prohibited from use in safe areas, such as detonators, remote controllers, etc.
Personal Privacy Protection: Hidden cameras and surveillance devices such as recording pens, cameras, etc. in residential buildings and hotels.
Product highlights
* Fast Judgment of Hidden Object Types: Through thermal imaging function, we can quickly and intuitively judge the appearance of the electronic products under test, and help the inspectors quickly judge the types of hidden electronic products.
* Strong Semiconductor Recognition Ability: Built-in spectrum analyzer supporting second and third harmonic detection can quickly and effectively identify devices and devices containing semiconductors.
* High sensitivity: In particular SIM card devices have a high density of intelligence, which ensures that secret books and mobile communication devices can be quickly detected.
* Low false positive rate: The built-in optimized radar detection algorithm greatly improves the detection capability, and the false alarm rate is very low.
* Safe and reliable: The characteristics of the equipment meet the requirements of electromagnetic radiation and are absolutely safe to the human body.
* Flexible and simple operation: The interface is simple and intuitive, the keys are few and concise, and it is easy to operate manually.
| Type | Parameter | Technical index |
|
Nonlinear Junction Parameters |
Frequency band | 2400MHz |
| Voltage | 8.4V | |
| Frequency range | 2.404 GHz - 2.472 GHz | |
| Receiving 2nd~3rd Harmonic Range |
4.808 GHz-4.944 GHHz, 7.212 GHz-7.416 GHz |
|
| Pulse mode transmit power (maximum) | 0~4W (ERIP) | |
| Receiving sensitivity | Less than -140dBm | |
| Adjustable range of transmitting power | 0.05-1W | |
| Receiving dynamic adjustable range | 30dB | |
| Battery Working Time in Maximum Power Pulse Mode | 2 hours | |
| Thermal Imaging Parameters |
Array format | 160x120, continuous scanning |
| Pixel size | 12 um | |
| Thermal imaging sensitivity | ||
| FOV- horizontal | 57⁰ | |
| FOV- diagonal | 71⁰ | |
| Lens type | F/1.1 | |
|
Other Parameters |
Battery type | Replaceable lithium battery, standby for 4 hours |
| Charging time | Fast charging 2.5 hours/block | |
| Interactive interface |
LCD Displays Received Harmonic Signal Intensity | |
| Audio prompts are supported and headphones can be connected. | ||
| Supporting Vibration Tips | ||
| LCD Display Imaging of Measured Objects | ||
| Detection distance |
GPS module: 400-500mm Mobile phone: 180-220 mm |
|
| Product size | 633(L)*111(W)*250mm(H) | |
| Outer box size | 690(L)*330(W)*180 mm(H) | |
| Product weight | 1.6kg | |
| working temperature | (-)20 ~ 45 degree | |
| Working humidity | No more than 85%, no condensate |
