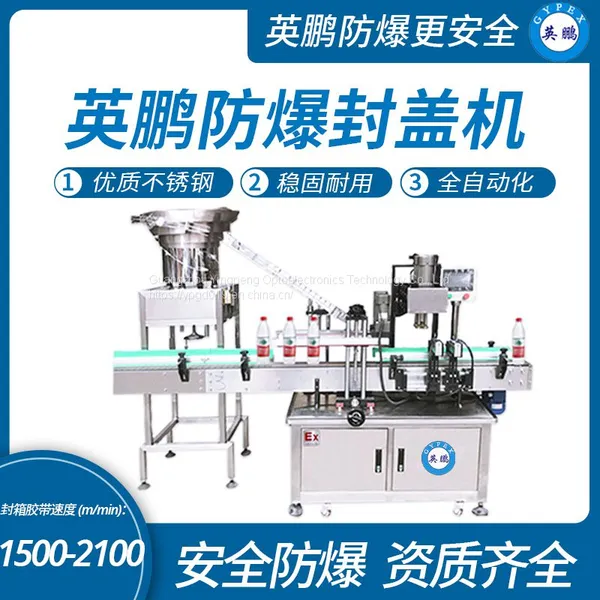

Help CenterGuangzhou Yingpeng Beverage Factory Fully Automatic Capping Machine, Food Processing Assembly Line Packaging Machine
Related Products
-
Guangzhou Yingpeng Pharmaceutical Explosion Proof Sealing Machine Shandong Chemical Explosion Proof Vacuum Packaging MachineNegotiableMOQ: 1 Box -
Guangzhou Yingpeng Explosion-proof PE Film Heat Shrink Packaging Machine EXBZ-900-40SJLNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Petrochemical Explosion-proof Oil Temperature Machine, 180 ° C Explosion-proof Mold Temperature MachineNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Food Processing Explosion Proof Semi-automatic Can Sealing Machine, Yingpeng Explosion Proof Capping MachineNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Hand Pushing Sweeper Cleaning Efficiency: 4000m ³_ hNegotiableMOQ: 1 Box
1、 Product parameters
Brand: Yingpeng GYPEX
Model: EXBZ-900-17FGJ
Yield (bottles/hour): 1500-2100
Power supply voltage (V/Hz): 220/50
Heat sealing power (w): 1000
Bottle sealing height: 30-300
Applicable cover diameter (mm): 15-17
Applicable bottle diameter (mm) 35-140
Overall dimensions (L * W * H) (mm): 2000 * 600 * 1200
Explosion proof sign: Ex d e ib mb II B T4 Gb
2、 Product Overview
The explosion-proof fully automatic capping machine is an inline capping machine. Having the following characteristics:
1. It can be used as an aluminum film seal. If the bottle cap is loose due to heat or there is still an unscrewed cap, it can be tightened again to ensure the qualified rate of the cap rotation
2. This machine can be used as a special capping machine, such as a special shaped cap with a nozzle for capping. It is a multifunctional capping machine. Suitable for various bottle types of rotating caps in food, pharmaceutical, daily chemical, pesticide, chemical, and detergent industries
3、 Manufacturing standards for this series of equipment:
Explosion proof packaging machine products are only allowed to enter the market if they meet relevant national explosion-proof standards. The national standards for explosion-proof products are as follows:;
GB 3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB 3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB 3836.3-2010 Explosive Atmospheres - Part 3: Equipment Protected by Increased Safety "e"
GB 3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"
GB 3836.9-2014 Explosive Atmospheres - Part 9: Equipment Protected by Encapsulated "m"
